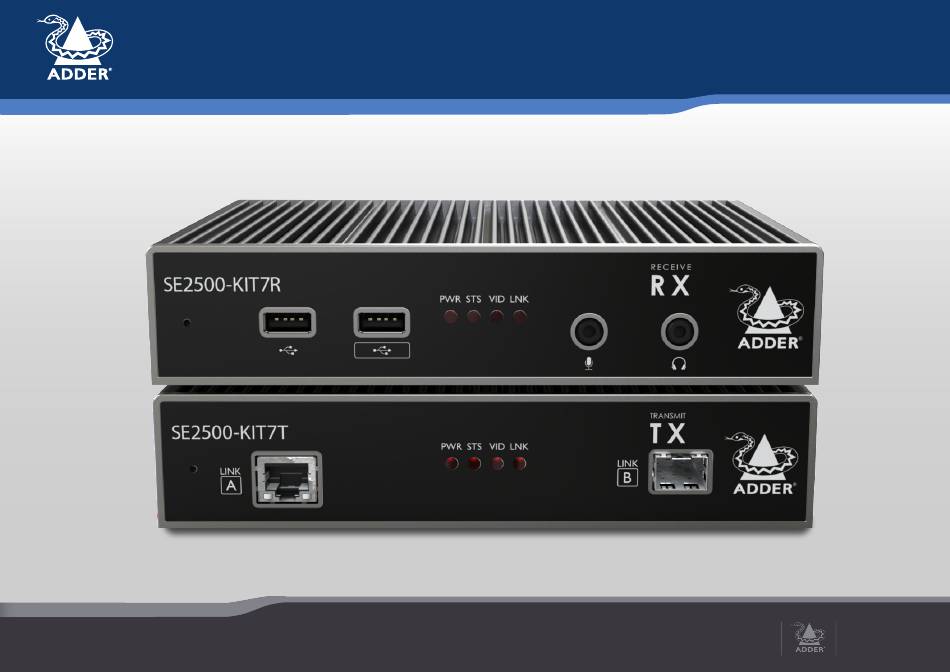

- Page 1 ADDERLink SE2500-KIT7 ™ User Guide Experts in Extender Connectivity Solutions Solutions...
- Page 2 Accessing the Dashboard .................18 CATx Link Cable Recommendations ............3 Choosing RX video mode ................18 Multi-display support using MST ...............4 Limiting the video resolution ................19 ADDERLink SE2500-KIT7 features ..............5 Resetting a module ....................20 Technical specifications ..................6 Upgrading firmware ...................20 Supplied items .......................7 Operation Optional extras .....................8...
- Page 3 ADDERLink XD-C650 for Emerson. Using either fiber optic or CATx The choice of fiber used with the ADDERLink SE2500-KIT7 modules has a considerable ® effect on the distance over which operation can take place. Using multi-mode fiber you links, these compact modules allow you to extend KVM connections over long distances from a host computer (see Transmission distances when using fiber on the right).
- Page 4 CATx Link Cable Recommendations Due to the high data bandwidth required between the transmitter and receiver, ADDERLink SE2500-KIT7 modules are highly dependent upon good quality CATx cable links. Video performance is particularly reliant on high speed communication channels. The main factors that affect link quality are: •...
- Page 5 • You can enable an internal hub within the SE2500-KIT7 receiver, which will allow non- ADDERLink SE2500-KIT7 modules use a single DisplayPort™ link to accept up to four MST video displays to be connected to the two output ports so that they can use the video streams from the host computer.
- Page 6 ADDERLINK SE2500-KIT7 FEATURES The transmitter and receiver modules are contained within slimline metal casings that measure just 186 x 152 x 40mm. Transmitter module Receiver module TRANSMIT R E C E I V E SE2500-KIT7T SE2500-KIT7R STS VID LNK PWR STS VID LNK LINK LINK Recessed CATx port...
- Page 7 TECHNICAL SPECIFICATIONS ADDERLink SE2500-KIT7 • Nominal Operating Power (W) • Peak Power (W) • External Power 12V DC, 1.5A • Max operating Altitude (m) 2000m • Operating Temp range (°C) 0 to +40°C • Operating Humidity range (%RH) 0-80% • Storage Temp range (°C) -10 to +50°C •...
- Page 8 SUPPLIED ITEMS SE2500-KIT7 transmitter kit USB cable 2m (type A to B) L IN V ID S T S DisplayPort cable 2m (v1.2) Power adapter with locking connector and country-specific - K I T 5 0 0 power cord S E 2 L IN ADDERLink SE2500-KIT7 transmitter module Information wallet containing: Eight self-adhesive rubber feet Safety document SE2500-KIT7 receiver kit V ID Power adapter with Information wallet locking connector...
- Page 9 OPTIONAL EXTRAS Replacement power adapter with locking connector Part number: PSU-IEC-12VDC-1.5A Country-specific power cords CAB-IEC-AUS (Australia) CAB-IEC-EURO (Central Europe) SFP+ module with LC connectors CAB-IEC-UK (United Kingdom) CAB-IEC-USA (United States) Multi mode: SFP-MM-LC-10G CAB-IEC-JAPAN (Japan) Single mode: SFP-SM-LC-10G USB cable 2m (type A to B) Audio cable 2m (3.5mm stereo jacks) Part number: VSC24 Part number: VSC22 Remote port serial cable 44cm DisplayPort cable 2m Part number: VSC50 (v1.2) Part number: VSCD18 Rack mount blanking plate...
- Page 10 LOCATIONS Please consider the following important points when planning the position of the Suitable for installation in Information ADDERLink SE2500-KIT7 modules: Technology Rooms in accordance with Article 645 of the National Electrical Code and • Situate the transmitter module close to the system to which it will be connected and NFPA 75.
- Page 11 Transmitter video link(s) Transmitter audio links VIDEO VIDEO ADDERLink SE2500-KIT7 modules can The ADDERLink SE2500-KIT7 LINK(S) LINK(S) AUDIO AUDIO transfer various high resolution video modules support analog stereo LINKS LINKS modes via their DisplayPort™ connectors audio in and out connections. and can support up to four video displays.
- Page 12 The ports have the following functions: 115200 baud - no serial configuration is required. An optional serial cable (part number: VSC50) is available from Adder. USB HID (Human Interface Device) Transparent USB feed to front...
- Page 13 Transmitter power connection VIDEO There is no on/off switch on the LINK(S) AUDIO ADDERLink SE2500-KIT7 module, so LINKS operation begins as soon as power is applied. The power adapters supplied with TRANSMITTER LINK LINK(S) the modules use locking-type plugs to help prevent accidental disconnections;...
- Page 14 Linking ADDERLink SE2500-KIT7 modules can be linked using either: • CATx (see below), or • Fiber (see next page) CATx link CATx status indicators The CATx ports on each module (labeled Link A) allow you to create direct links of up to 50m (when using The status indicators on the CATx port connector CAT5e) or 100m (when using CAT6).
- Page 15 1 Remove an SFP+ module from its protective packing and insert it fully into the empty slot on the ADDERLink SE2500-KIT7. The SE2500-KIT7 transmitter slot is located on the front panel; the SE2500-KIT7 receiver slot is situated on the rear panel:...
- Page 16 Receiver video display(s) Receiver audio devices VIDEO VIDEO Two DisplayPort™ sockets are provided The receiver module can support multiple DISPLAY(S) DISPLAY(S) AUDIO AUDIO on the rear panel of each receiver module. analog audio devices, such as stereo TRANSMITTER TRANSMITTER DEVICES DEVICES Either all four possible MST streams are headphones, a mono microphone or line- provided at port 1 OR just the first and level in/out connections.
- Page 17 115200 baud - no serial configuration is required. An optional serial cable (part number: To connect USB devices VSC50) is available from Adder. 1 Connect your USB keyboard, mouse and any S E 2...
- Page 18 Receiver power connection VIDEO There is no on/off switch on the DISPLAY(S) AUDIO ADDERLink SE2500-KIT7 module, so TRANSMITTER DEVICES operation begins as soon as power is applied. The power adapters supplied with RECEIVER LINK DEVICES the modules use locking-type plugs to help prevent accidental disconnections;...
- Page 19 CHOOSING RX VIDEO MODE ADDERLink SE2500-KIT7 modules generally configure themselves automatically, ADDERLink SE2500-KIT7 receivers contain an internal DisplayPort™ MST hub; you can collecting EDID information from the attached monitor(s) and passing the details to the choose to either use it or bypass it. When bypassed (default setting), the full combined host computer.
- Page 20 Note: When the mode is cycled, this will cause the screens to refresh. New units should always arrive from Adder in MST mode, but can be changed using the hotkeys; they will never revert without using the hotkeys, and remain persistent through reboot and reset.
- Page 21 UPGRADING FIRMWARE On the left side of the front panel of each module, you will find a small reset hole which Firmware upgrades are periodically made available for products via the Adder website is used to invoke special functions. (www.adder.com). Use this procedure to upgrade the firmware. Note: Upgrades require roughly 11 minutes to complete.
- Page 22 Operation ADDERLink SE2500-KIT7 is designed to be transparent in operation; all peripherals should respond exactly as they would when situated next to your host computer. INDICATORS The transmitter and receiver modules contain various indicators to provide you with status information. Both modules have four red indicators on their front panels.
- Page 23 This chapter contains a variety of information, including the following: If you are still experiencing problems after checking the information contained within this • Getting assistance - see right guide, then please refer to the Support section of our website: • Appendix 1 - Remote (Options) port pin-out www.adder.com...
- Page 24 APPENDIX 1 - REMOTE PORT PIN-OUT port uses a 6p6c socket. The pin-out is listed below. REMOTE Note: Although the pins labeled ‘Not used’ is inactive, it is still connected internally and so no links should be made at all to this pin. REMOTE Pin Signal Sense/5V Not used...
- Page 25 © 2025 Adder Technology Limited All trademarks are acknowledged. www.ctxd.com Documentation by: Part No. MAN-000040 • Release 1.1...
- Page 26 Index SST 18 Status indicators 21 Audio devices MST 4,18 Supplied items 7 Receiver 15 Multi-Stream Transport 18 Audio links transmitter 10 Upgrade Optional extras 8 firmware 20 USB devices CATx Dashboard 18 Receiver 16 link 13 USB links status indicators 13 transmitter 11 Power connection Connections...
