olympia electronics BS-508/WiFi Instruction Manual

Packing List
1 Smoke Alarm
Self-tapping Screw
2
2 Expansion Bolt
1 Mounting Plate
1 User's Manual
Important Safeguards and Warnings
The manual will help you to use the Device properly. Read the manual carefully before using the Device,
and keep it well for future reference.
Operation Requirements
WARNING
Never Ignore any alarm. Failure to respond may lead to serious injury or death.
CAUTION
Make sure that the power supply of the device works properly before use.
Ÿ
Use the device according to the operation environment.
Ÿ
Ÿ Only use the device within the rated power range.
Ÿ Transport, use and store the device under allowed humidity and temperature conditions.
Ÿ Prevent liquids from splashing or dripping on the device. Make sure that there are no objects filled
with liquid on top of the device to avoid liquids flowing into it.
Ÿ The smoke alarm is only designed for indicating the presence of smoke, but it cannot detect gas, heat
or flames.
Installation Requirements
WARNING
Failure to properly install and operate this device will prevent proper operation of the Device and will
prevent its response to fire hazards.
CAUTION
Observe all safety procedures and wear required protective equipment provided for your use
Ÿ
working at heights.
Do not expose the device to direct sunlight or heat sources.
Ÿ
Keep the original packing material well because you might need it to pack the device and send it back
Ÿ
for repair
Ÿ Make sure the application scenario conforms to installation requirements. Contact your local
retailer or customer service center if there is any problem
Ÿ All installation and operations shall conform to your local electrical safety requirements, fire
protection regulations, and other relevant regulations.
Ÿ Check the package according to the above packing list. If you find device damage or any loss, contact
the after-sales service.
Maintenance Requirements
Do not clean the device with any cleaning products.
Ÿ
Do not paint the device. Paint will seal the bents and interfere with the sensor's ability to detect
Ÿ
smoke.
Product information
WiFi smoke alarm (hereinafter referred to as the device) is designed to continuously monitoring smoke
concentration. Adopting new dual sensing photoelectric chamber and a built-in high-volume buzzer, it
responds quickly and becomes highly sensitive with stable performance and low false alarm. Once the
surrounding smoke concentration reaches the alarm value, it will promptly send out visual and audible
alarm signal to remind the user to take immediate measures, and you can receive a push notification.
This product is designed for household or similar residential application such as a family home or
apartment.
Split-spectrum sensor technology
Ÿ
Test and silence features in one single button
Ÿ
Loud sound output over 85 dB(A) at 3 meters
Ÿ
Surface-mount device (SMD) circuit board design
Ÿ
Low battery warning signal
Ÿ
Notifications can be send to your mobile phones through wireless network
Ÿ
1

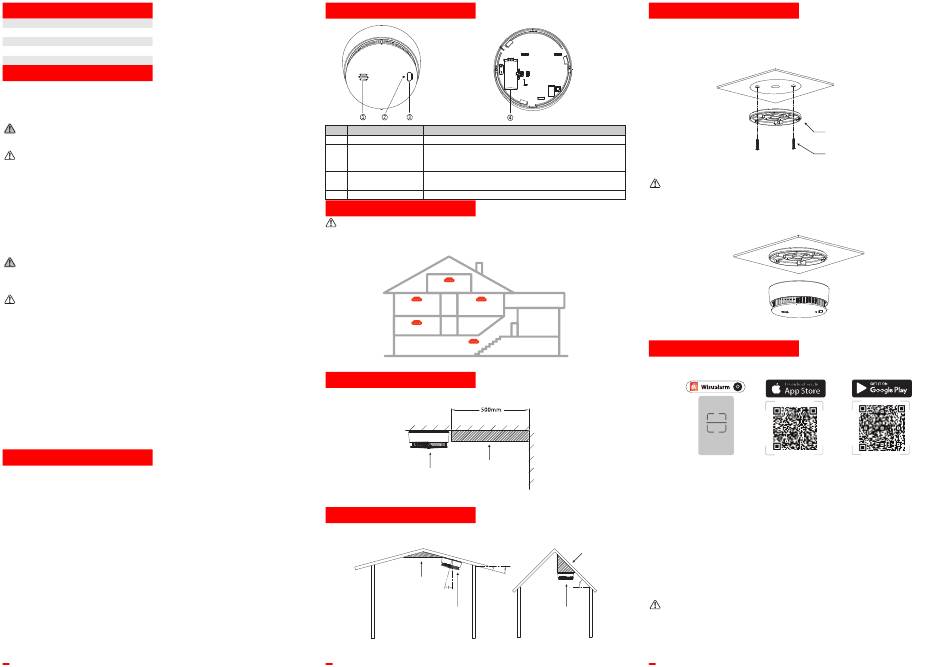

Product profile
No. Name Introduction
Alarm Sound: 85db (A) at 3m (9.84ft)
1 Buzzer
Standby: Green indicator flashes once per minute
2 Indicator Alarm: Red indicator flashes once per second
Fault: Red indicator flashes once per minute
Verify the normal operation
3 Test/Silence Button
Stop the alarm sound
4 Battery Compartment Replace the battery
Installation position
CAUTION
This device is intended for use in ordinary indoor locations of family units. Construction and layout of
individual dwellings will vary, so this should be regarded as a reference only. For further guidance, please
check with your local fire station.
BEDROOM
GROUND FLOOR
Installation position (ceiling)
If the device is installed on the ceiling, install at a distance of 20 inches (500mm) away from corners of
the room.
Ceiling
Best installation area
Figure 2 - Installation position (ceiling)
Installation position (slopping roof)
o
When the slope is less than 45 , the appropriate distance is 20 inches (500mm). When the slope is more
o
than 45 , a wood should be installed.
Wrong installation area
Best installation area
Figure 3 - Installation position (slopping roof)
2
980508000_09_001
BEDROOM
BEDROOM
KITCHEN GARAGE
BASEMENT
Figure 1 - Overall layout
Wrong installation area
Wall
Wood
Best installation area
980508000_09_001
Install the device
Follow below steps to install the device properly.
Step 1. Choose suitable place to install your smoke alarm.
Step 2. Drill holes (Φ6 mm [0.24"]) on the wall, and then align the screw holes on the wall with the
expansion bolts.
Step 3. Fix the mounting plate with self-tapping screws.
mounting plate
self-tapping screw
Figure 4
Step 4. Install the battery.
CAUTION
Please remove the battery insulating film from the battery compartment to turn on the alarm, and make
sure the battery's positive and negative poles are put correctly.
Step 5. Rotate the device according to the corresponding position and direction as shown in the figure 5.
Please ensure it is firm.
Figure 5
Device network
Before installation, please scan the QR code below, or search for "Wisualarm" in the app store to
download and install the app. If you already use the app, make sure that you are using the latest version.
NOTE
Run Wisualarm App, and register an account for the first use.
Ÿ
Ÿ Connect the device to a stable and uninterrupted 2.4Ghz Wi-Fi network.
Step 1. Tap "+" to scan the QR code at the back of the Wi-Fi Smoke Alarm to add the device.
Step 2. Power on the device and then tap Next.
Step 3. Follow the instructions to enable the green LED indicator to blink rapidly, and tap Next.
Step 4. Select the Time Zone, enter the password for connecting to the 2.4Ghz Wi-Fi network, and tap
Next.
Step 5. Connect the phone to the Wi-Fi named "DAP xxxxxxxx", go back to Wisualarm App and wait for
the connection.
Step 6. After a while, the buzzer beeps once, indicating that the device connection is successful. Then
App will go back to the Device name and Room configuration page. You can customize the names of
added devices and specify the room where the devices are located.
Then tap Save.
CAUTION
After successful connection, please do not press and hold Test/Silence button. Otherwise, the device
will clear network information. App displays that the device is offline without receiving alarm
information.
3
