olympia electronics BSR-6155/MAR Quick Start Manual

Package Contents
1 Detector
1 Detector Base
Mounting Accessories
1
1 Manual
General
The user have to read carefully the following instructions, in order to be properly
informed and keep them for future use.
The BSR-6155/MAR is an analogue addressable smoke detector which
integrates the function of optical smoke detection and it can work with any fire
panel supports Olympia A Protocol. It can be adjusted to detect multiple levels of
smoke offering flexibility and rich functionality. Also, it integrates a short circuit
isolation circuit which is automatically activated and disconnects the defective
node from the remaining loop, allowing it to be located by the panel.
The detector sends to the main panel an analogue value which depends on the
concentration of smoke. The value is 100 in concentration of 0.107dB/m (small
amount of smoke) and increases proportionally to 120 in concentration of
0.300dB/m.
By default the panel is set to sound an alarm when the concentration of smoke is
0.107dB/m. The user can change this setting from the panel for each detector
and define any level of smoke concentration between the lower and the upper
limits, specifying the sensitivity of the system depending on the requirements of
each site.
The BSR-6157/MAR is an analogue addressable smoke detector which
integrates functions of optical smoke and heat detection and it can work with
any fire panel supports Olympia A Protocol. It can be adjusted to detect multiple
levels of smoke and heat offering flexibility and rich functionality. Also, it
integrates a short circuit isolation circuit which is automatically activated and
disconnects the defective node from the remaining loop, allowing it to be
located by the panel.
The detector sends to the main panel an analogue value which depends on the
concentration of smoke and heat. The value is 100 in concentration of
0.107dB/m (small amount of smoke) or a temperature of 57 C and increases
proportionally to 120 in concentration of 0.300dB/m or a temperature of 90 C.
When a sudden increase in temperature is detected the detector sends the value
of 121.
By default the panel is set to sound an alarm when the concentration of smoke is
o
0.107dB/m or the temperature is 57 C. The user can change this setting from the
panel for each detector and define any level of smoke concentration or
temperature between the lower and the upper limits, specifying the sensitivity
of the system depending on the requirements of each site. Also, the user can
select A1R or A1S working mode through the panel.
The BSR-6160/MAR is an analogue addressable heat detector which integrates
the function of rate-of-rise heat detection and it can work with any fire panel
supports Olympia A Protocol. It can be adjusted to detect multiple levels of heat
offering flexibility and rich functionality. Also, it integrates a short circuit
isolation circuit which is automatically activated and disconnects the defective
node from the remaining loop, allowing it to be located by the panel.
The detector sends to the main panel an analogue value which depends on the
o
heat. The value is 100 at 57 C (A1R or A1S) or 89°C (CS) and increases
o
proportionally to 120 at 90 C (A1R or A1S), or 120°C (CS). When a sudden
increase in temperature is detected the detector sends the value of 121.
1
By default the panel is set to sound an alarm when the temperature reaches the
lower level of each working mode, namely 57°C (A1R or A1S), or 89°C (CS). The
user can change this setting from the panel for each detector and define any level
of temperature between the lower and the upper limits, specifying the sensitivity
of the system depending on the requirements of each site. Also, the user can
select A1R, A1S, or CS working mode through the panel.
They are composed by two parts. A plastic base which is placed on the ceiling and
the main body of the detector which fits on the plastic base with a simple rotation
to the right. The detectors have a 360 visible led and a remote led driver which
are light up constantly in case of detection of fire, till cancelled from the panel.
Also, they are staying lit even if the sirens are silenced from the panel, so the
detector which detected the alarm is visible. They are turned off only when a
reset command is given from the panel. The indicator led blinks every 10 sec
indicating the connection status with the main panel.
INSTALLATION
The detectors should be placed in the ceiling in visible points without side
obstacles, away from places that are barely ventilated or with strong air currents
and water vapor. Each detector BSR-6155/MAR covers an area of 100m and each
detector BSR-6157/MAR & BSR-6160/MAR covers an area of 50m . For distances
and mounting points consult the local/national regulation. Also, they must be
placed at least 50 cm away from fluorescent lamps. Cable cross-section should be
2
from 0.5 to 2.5mm .
MAINTENANCE & FUNCTIONAL TESTING
The detector has fault diagnosis and dust compensation functions, which
automatically informs you when replacement or cleaning actions are required.
These functions combined with periodic manual testing ensure maximum
security level. The manual testing procedure is carried out by spraying a small
amount of smoke into the detector with a testing spray or a counterpart product.
It is suggested to carry out a test every 6 months or after a change in the position
of the sensor. A key element of its proper function is the air to be able to freely
circulate inside it. So be careful not to block the openings of the outer cover.
Before the manual testing it is suggested to enable the special "walk in test" mode
from the panel.
o
CAUTION !!
o
After installation the device must not be covered with dust or be painted or
anything else happen that will block the smoke to get to the sensor. Special
attention must be given during the installation and the use of the device, since the
user assumes full responsibility for proper operation afterwards.
Additional features of the device :
- Integration of dynamic algorithms for noise and false alarm rejection.
- Dust compensation and automatic generation of cleaning notifications.
Stable level of detection regardless of detector's working hours.
- Compensation of smoke measurements based on ambient temperature
which ensures high precision measurements even under extreme
environmental conditions.
- Automatic fault diagnosis.
- Adjustable smoke alarm level for maximum flexibility.
- Adjustable smoke and temperature alarm level for maximum flexibility.
o
- 360 optically visible LED.
UID:
In every device there is a double sticker with the UID (Unique Identifier)
number. This number is unique for each device.
2
921615503_09_002
o
2
2
921615503_09_002

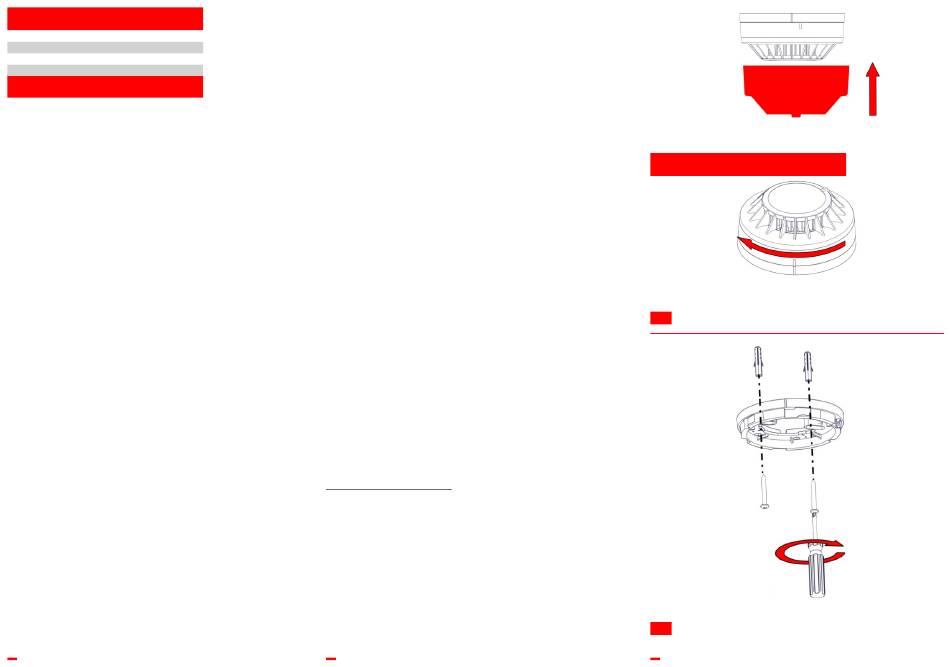

During site works place the plastic cover to the detector (only for BSR-6155/A &
BSR-6157/A) as shown in the picture above to protect the device from dust.
Installation Instructions
Remove the detector from its base rotating to the left till the side marks are
aligned.
1
Fasten the base with the supplied mounting accessories.
2
3
921615503_09_002
