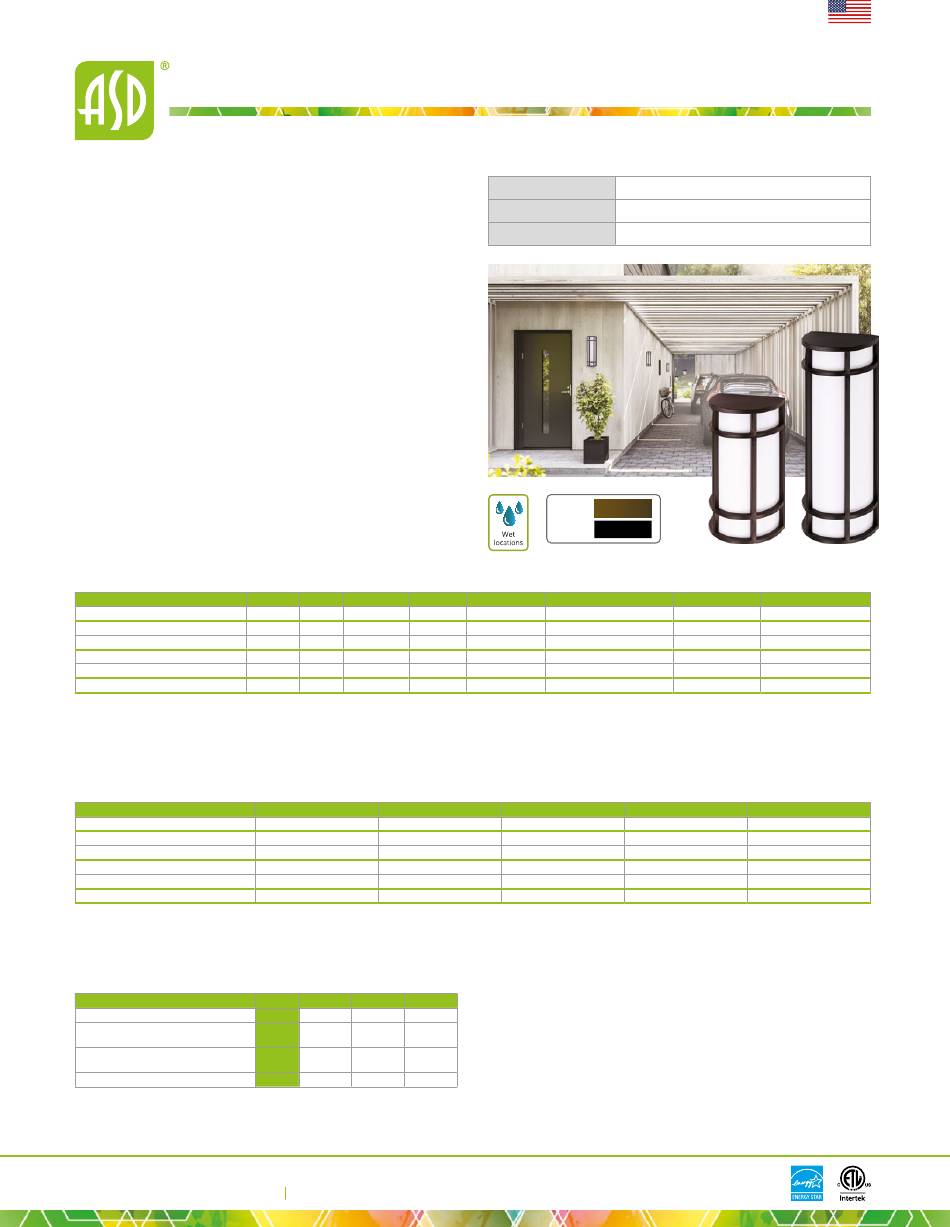

ASD OLWS-22 Series Manual

LED OUTDOOR WALL SCONCE
OLWS-22 series
DESIGN - LED OUTDOOR WALL SCONCE has a modern,
▶
multipurpose design and a stylish look with efficient lighting. The UV
resistant PMMA lens with a 160° beam angle grants you even light
distribution. It is designed to operate on 120-277V circuits and provides
smooth triac dimming capabilities ranging from 10% to 100%.
COLOR SELECTABLE - You can choose either a 3,000K warm
▶
white, 4,000K cool white or 5,000K daylight color temperature.
▶ Durable waterproof housing resistant to rust and impact can be used
outdoors in all weather conditions.
APPLICATION - The fixture is rated for Wet Locations, making
▶
it perfect for indoor and outdoor projects such as decks, front doors,
porches, patios, corridors, walkways, or any other common areas.
ADVANTAGES - With a lifespan of 50,000 hours, these fixtures
▶
are made to last decades under normal operation! ASD provides a
5-year limited warranty along with ETL and Energy Star certifications to
guarantee top quality products and safety!
Model
ASD-OLWS-22-MV-12N15CC-BZ
ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-18N20CC-BK
ASD-OLWS-22-MV-24N23CC-BZ
ASD-OLWS-22-MV-24N23CC-BK
ASD-OLWS-22-MV-36N28CC-BK
For detailed luminous flux information please refer to Annex.
ORDERING INFORMATION
Model
ASD-OLWS-22-MV-12N15CC-BZ
ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-18N20CC-BK
ASD-OLWS-22-MV-24N23CC-BZ
ASD-OLWS-22-MV-24N23CC-BK
ASD-OLWS-22-MV-36N28CC-BK
ANNEX 1
Model
ASD-OLWS-22-MV-12N15CC-BZ
ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-18N20CC-BK
ASD-OLWS-22-MV-24N23CC-BZ
ASD-OLWS-22-MV-24N23CC-BK
ASD-OLWS-22-MV-36N28CC-BK
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Size Watts Voltage Dimmable
12 inch 15W 120-277 V -
18 inch 20W 120-277 V -
18 inch 20W 120-277 V -
24 inch 23W 120-277 V -
24 inch 23W 120-277 V -
36 inch 28W 120-277 V -
UPC Pcs. per carton
810050730679 4
810050730686 4
810128116312 4
810050730693 4
810128116329 4
810128116336 4
Watts 3,000 K 4,000 K 5,000 K
15W
790 lm 1,010 lm 928 lm
20W 1,335 lm 1,515 lm 1,403 lm
23W
1,600 lm 1,970 lm 1,775 lm
28W 2,485 lm 2,690 lm 2,571 lm
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Bronze
Finish:
Black
Lumens CCT
up to 1,010 lm 3CCT (3,000/4,000/5,000 K)
up to 1,515 lm 3CCT (3,000/4,000/5,000 K)
up to 1,515 lm 3CCT (3,000/4,000/5,000 K)
up to 1,970 lm 3CCT (3,000/4,000/5,000 K)
up to 1,970 lm 3CCT (3,000/4,000/5,000 K)
up to 2,690 lm 3CCT (3,000/4,000/5,000 K)
Carton size
14" x 15.8" x 11.6"
19.9" x 15.8" x 11.6"
19.9" x 15.8" x 11.6"
26" x 15.8" x 11.6"
26" x 15.8" x 11.6"
38" x 15.8" x 12.2"
For most up-to-date spec sheets please refer to asd-lighting.com
English
Finish Dimensions (LxWxH)
Oil rubbed bronze 12" x 6-1/8" x 4"
Oil rubbed bronze 17-15/16" x 6-1/8" x 4"
Black 17-15/16" x 6-1/8" x 4"
Oil rubbed bronze 24-1/16" x 6-1/8" x 4"
Black 24-1/16" x 6-1/8" x 4"
Matte black 36-1/16" x 6-1/8" x 4"
Carton weight GTIN 14
17.3 lbs 30810050730670
20.2 lbs 30810050730687
20.2 lbs 20810128116316
26.5 lbs 30810050730694
26.5 lbs 10810128116326
37.6 lbs 10810128116333
