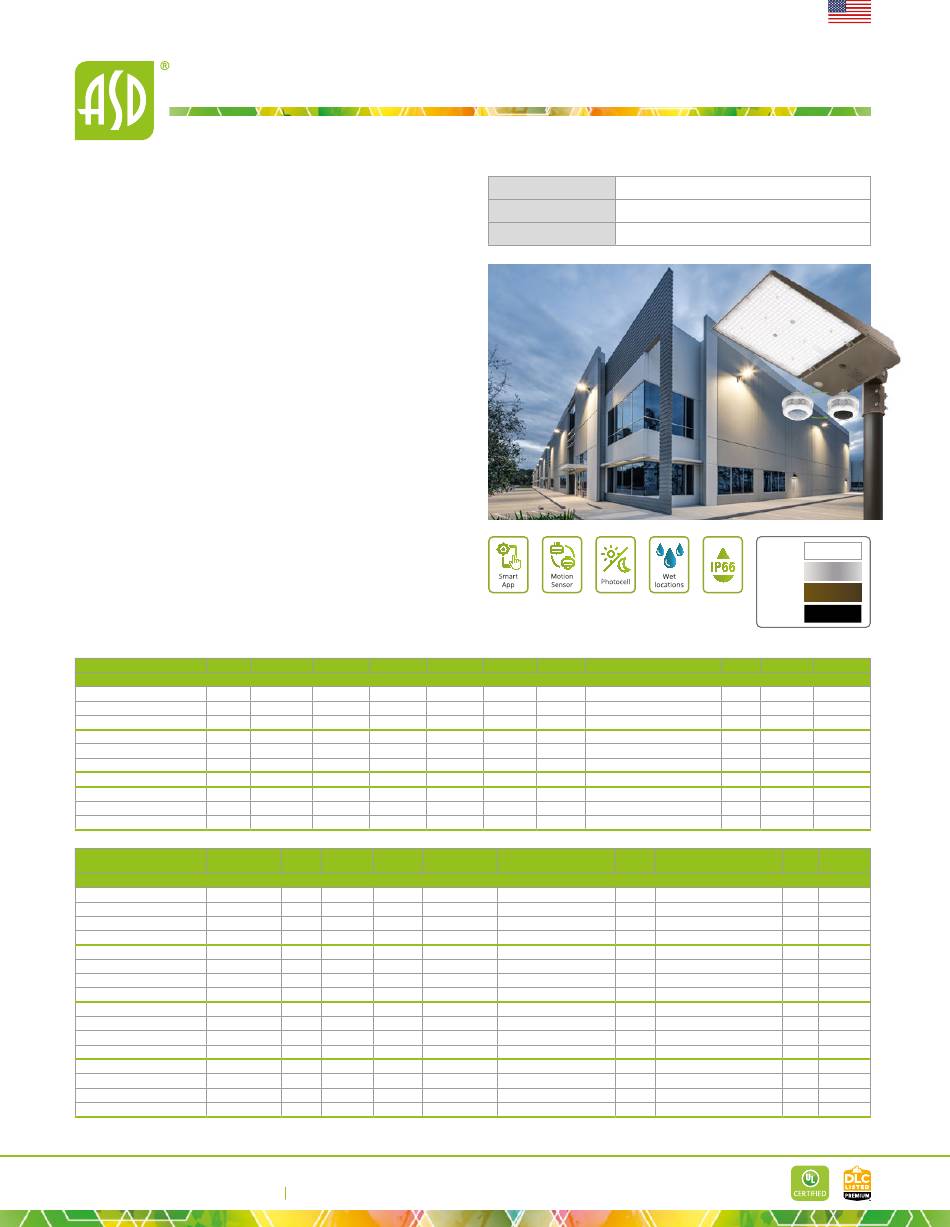

ASD -LSB5-150D50BR Installation Manual

LED AREA LIGHT WITH PHOTOCELL and Q-BASE
DESIGN - LED AREA LIGHT WITH PHOTOCELL and Q-BASE (for
▶
indicated models) has die-cast aluminum housing with excellent heat
dissipation and anti-glare PC type III-M lens with even light distribution.
With 10kV surge protection, it is designed to operate on 120-277V or 277-
480V circuits with a 0-10V dimmable driver. Integrated photocell switches
the fixture on at night time. Photocell can be easaily deactivated by putting
the cap on.
COLOR AND POWER SELECTABLE - You can choose
▶
either a 3,000K warm white, 4,000K cool white or 5,000K daylight color
temperature, and change the power with a simple switch. For indicated
models.
3G - Vibration rated, withstands conditions with repeated vibration,
▶
making it conform to standards for roadway.
INSTALLATION - This fixture is Wet Locations rated and can be
▶
pole, post, or wall mounted using the slip fitter bracket, arm bracket,
floodlight bracket, or full trunnion bracket. It comes with a 4 ft cord. Perfect
commercial or industrial solution for roadway lighting, highway lighting,
sport lighting, parks, parking lots, backyards, and many other applications.
ADVANTAGES - With calculated lifespan up to 163,000 hours,
▶
these fixtures are made to last decades under normal operation! ASD
provides a 5-year limited warranty along with UL and DLC Premium
certifications to guarantee top quality products and safety!
Model Watts
ASD-LSB5-150D50BR 150W
ASD-LSB5-150D50BR-SF 150W
ASD-LSB5-150D50BR-AMR 150W
ASD-LSB5-200D50BR 200W
ASD-LSB5-200D50BR-SF 200W
ASD-LSB5-200D50BR-AMR 200W
ASD-LSB5-240D50BR 240W
ASD-LSB5-300D50BR 300W
ASD-LSB5-300D50BR-SF 300W
ASD-LSB5-300D50BR-AMR 300W
Model Watts
ASD-LSB5A-PRO-150WH 100/120/150W
ASD-LSB5A-PRO-150SL 100/120/150W
ASD-LSB5A-PRO-150BR 100/120/150W
ASD-LSB5A-PRO-150BK 100/120/150W
ASD-LSB5A-PRO-200WH 100/150/200W
ASD-LSB5A-PRO-200SL 100/150/200W
ASD-LSB5A-PRO-200BR 100/150/200W
ASD-LSB5A-PRO-200BK 100/150/200W
ASD-LSB5A-PRO-240WH 150/200/240W
ASD-LSB5A-PRO-240SL 150/200/240W
ASD-LSB5A-PRO-240BR 150/200/240W
ASD-LSB5A-PRO-240BK 150/200/240W
ASD-LSB5A-PRO-300WH 200/240/300W
ASD-LSB5A-PRO-300SL 200/240/300W
ASD-LSB5A-PRO-300BR 200/240/300W
ASD-LSB5A-PRO-300BK 200/240/300W
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Sensor base Voltage Dimmable
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
- 120-277 V 0-10 V
Sensor
Voltage Dimmable
base
3-pin 120-277 V 0-10 V up to 24,914 lm
3-pin 120-277 V 0-10 V up to 24,914 lm
3-pin 120-277 V 0-10 V up to 24,914 lm
3-pin 120-277 V 0-10 V up to 24,914 lm
3-pin 120-277 V 0-10 V up to 33,511 lm
3-pin 120-277 V 0-10 V up to 33,511 lm
3-pin 120-277 V 0-10 V up to 33,511 lm
3-pin 120-277 V 0-10 V up to 33,511 lm
3-pin 120-277 V 0-10 V up to 40,372 lm
3-pin 120-277 V 0-10 V up to 40,372 lm
3-pin 120-277 V 0-10 V up to 40,372 lm
3-pin 120-277 V 0-10 V up to 40,372 lm
3-pin 120-277 V 0-10 V up to 52,440 lm
3-pin 120-277 V 0-10 V up to 52,440 lm
3-pin 120-277 V 0-10 V up to 52,440 lm
3-pin 120-277 V 0-10 V up to 52,440 lm
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Lumens CCT Finish Dimensions (LxWxH)
LSB5
22,398 lm 5,000 K Bronze 14-5/16" x 11" x 2-13/16"
22,398 lm 5,000 K Bronze 21-5/16" x 11" x 3-1/16"
22,398 lm 5,000 K Bronze 22-1/4" x 11" x 6-1/4"
30,071 lm 5,000 K Bronze 14-5/16" x 11" x 2-13/16"
30,071 lm 5,000 K Bronze 21-5/16" x 11" x 3-1/16"
30,071 lm 5,000 K Bronze 22-1/4" x 11" x 6-1/4"
35,843 lm 5,000 K Bronze 18-1/2" x 12-9/16" x 2-13/16"
44,069 lm 5,000 K Bronze 18-1/2" x 12-9/16" x 2-13/16"
44,069 lm 5,000 K Bronze 25-9/16" x 12-9/16" x 3-1/16"
44,069 lm 5,000 K Bronze 26-1/2" x 12-9/16" x 6-1/4"
Lumens CCT
LSB5A-PRO
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
3CCT (3,000/4,000/5,000 K)
For most up-to-date spec sheets please refer to asd-lighting.com
Finish:
Cord Bracket
3.9 ft -
3.9 ft Slip fitter
3.9 ft Arm
3.9 ft -
3.9 ft Slip fitter
3.9 ft Arm
3.9 ft -
3.9 ft -
3.9 ft Slip fitter
3.9 ft Arm
Finish Dimensions (LxWxH) Cord
White 14-5/16" x 11" x 2-13/16" 3.9 ft
Silver 14-5/16" x 11" x 2-13/16" 3.9 ft
Bronze 14-5/16" x 11" x 2-13/16" 3.9 ft
Black 14-5/16" x 11" x 2-13/16" 3.9 ft
White 14-5/16" x 11" x 2-13/16" 3.9 ft
Silver 14-5/16" x 11" x 2-13/16" 3.9 ft
Bronze 14-5/16" x 11" x 2-13/16" 3.9 ft
Black 14-5/16" x 11" x 2-13/16" 3.9 ft
White 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
Silver 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
Bronze 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
Black 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
White 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
Silver 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
Bronze 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
Black 18-1/2" x 12-9/16" x 2-13/16" 3.9 ft
English
White
Silver
Bronze
Black
Option
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Option
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
Photocell
