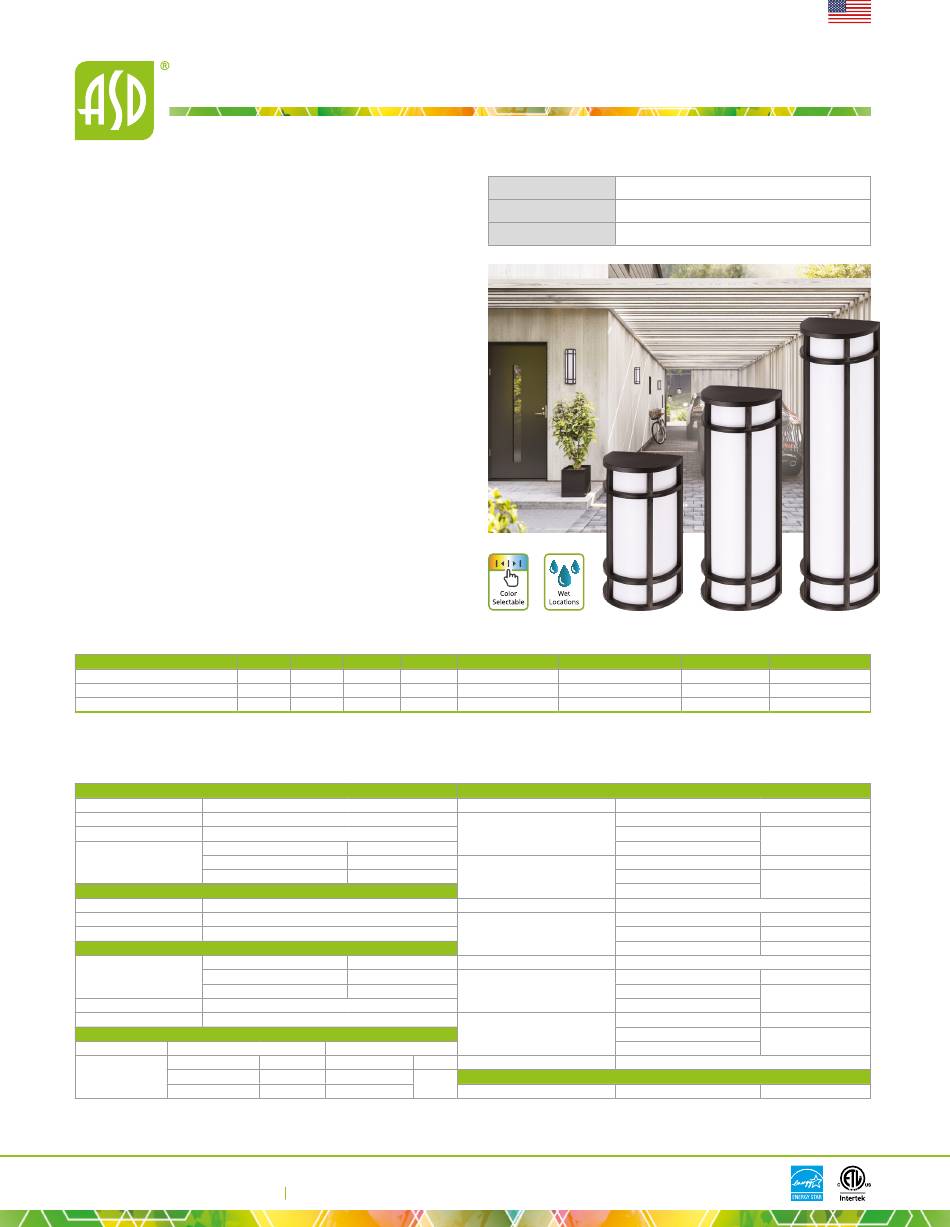

ASD -OLWS-22-MV-12N15CC-BZ Manual

LED OUTDOOR WALL SCONCE
DESIGN - LED OUTDOOR WALL SCONCE has a modern,
▶
multipurpose design and a stylish look with efficient lighting. The UV
resistant PMMA lens with a 160° beam angle grants you even light
distribution. It is designed to operate on 120-277V circuits and provides
smooth triac dimming capabilities ranging from 10% to 100%.
COLOR SELECTABLE - You can choose either a 3,000K warm
▶
white, 4,000K cool white or 5,000K daylight color temperature.
▶ Durable waterproof housing resistant to rust and impact can be used
outdoors in all weather conditions.
APPLICATION - The fixture is rated for Wet Locations, making
▶
it perfect for indoor and outdoor projects such as decks, front doors,
porches, patios, corridors, walkways, or any other common areas.
ADVANTAGES - With a lifespan of 50,000 hours, these fixtures
▶
are made to last decades under normal operation! ASD provides a
5-year limited warranty along with ETL and Energy Star certifications to
guarantee top quality products and safety!
Model
ASD-OLWS-22-MV-12N15CC-BZ 12 inch
ASD-OLWS-22-MV-18N20CC-BZ 18 inch
ASD-OLWS-22-MV-24N23CC-BZ 24 inch
PRODUCT SPECIFICATIONS:
Construction & Materials
Housing Steel
Lens PMMA
Finish Oil rubbed bronze
ASD-OLWS-22-MV-12N15CC-BZ
Weight ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
Environmental system
Work environment Suitable for Wet Locations
Operating temperature -40℉ to 113℉ (-40℃ to 45℃)
L-70 Life > 50,000 hrs
Optical system
ASD-OLWS-22-MV-12N15CC-BZ
Luminous flux ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
Color temperature 3CCT (3,000/4,000/5,000 K)
CRI > 80
Dimming compatible controls
Brand Lutron
MACL-153MLH-WH
Models STCL-153PH-WH
PD-6WCL-WH-R
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Size Watts Voltage Dimmable
15W 120-277 V -
20W 120-277 V -
23W 120-277 V -
3.3 lbs (1.5 kg)
4.4 lbs (2 kg)
5.6 lbs (2.6 kg)
790/1,010/928 lm
1,335/1,515/1,403 lm
1,600/1,970/1,775 lm
Leviton
DVCL-153PR R02-DW6HD-2RW DSL06
P-PKG1W R00-RNL06-0TW
R68-06674-P0T
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Lumens CCT
790/1,010/928 lm 3CCT (3,000/4,000/5,000 K)
1,335/1,515/1,403 lm 3CCT (3,000/4,000/5,000 K)
1,600/1,970/1,775 lm 3CCT (3,000/4,000/5,000 K)
Electrical system
Input voltage 120-277 V
ASD-OLWS-22-MV-12N15CC-BZ
Max input current ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
ASD-OLWS-22-MV-12N15CC-BZ
Inrush current (Action time) ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
Off state power 0W
ASD-OLWS-22-MV-12N15CC-BZ
Power consumption ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
Power factor > 0.9
ASD-OLWS-22-MV-12N15CC-BZ
Output voltage ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
ASD-OLWS-22-MV-12N15CC-BZ
Driver output current ASD-OLWS-22-MV-18N20CC-BZ
ASD-OLWS-22-MV-24N23CC-BZ
Surge protection DM/CM 1.5 kV / 1.5 kV
Regular and voluntary certifications
5-year limited warranty cETLus certified 4001256
For most up-to-date spec sheets please refer to asd-lighting.com
English
Finish Dimensions (LxWxH)
Oil rubbed bronze 12" x 6" x 4"
Oil rubbed bronze 18" x 6" x 4"
Oil rubbed bronze 24" x 6" x 4"
0.15 A
0.35 A
0.118 A (0.2 S)
0.164 A (0.2 S)
15W
20W
23W
18-36 V
30-38 V
0.35 A
0.58 A
Energy Star listed
