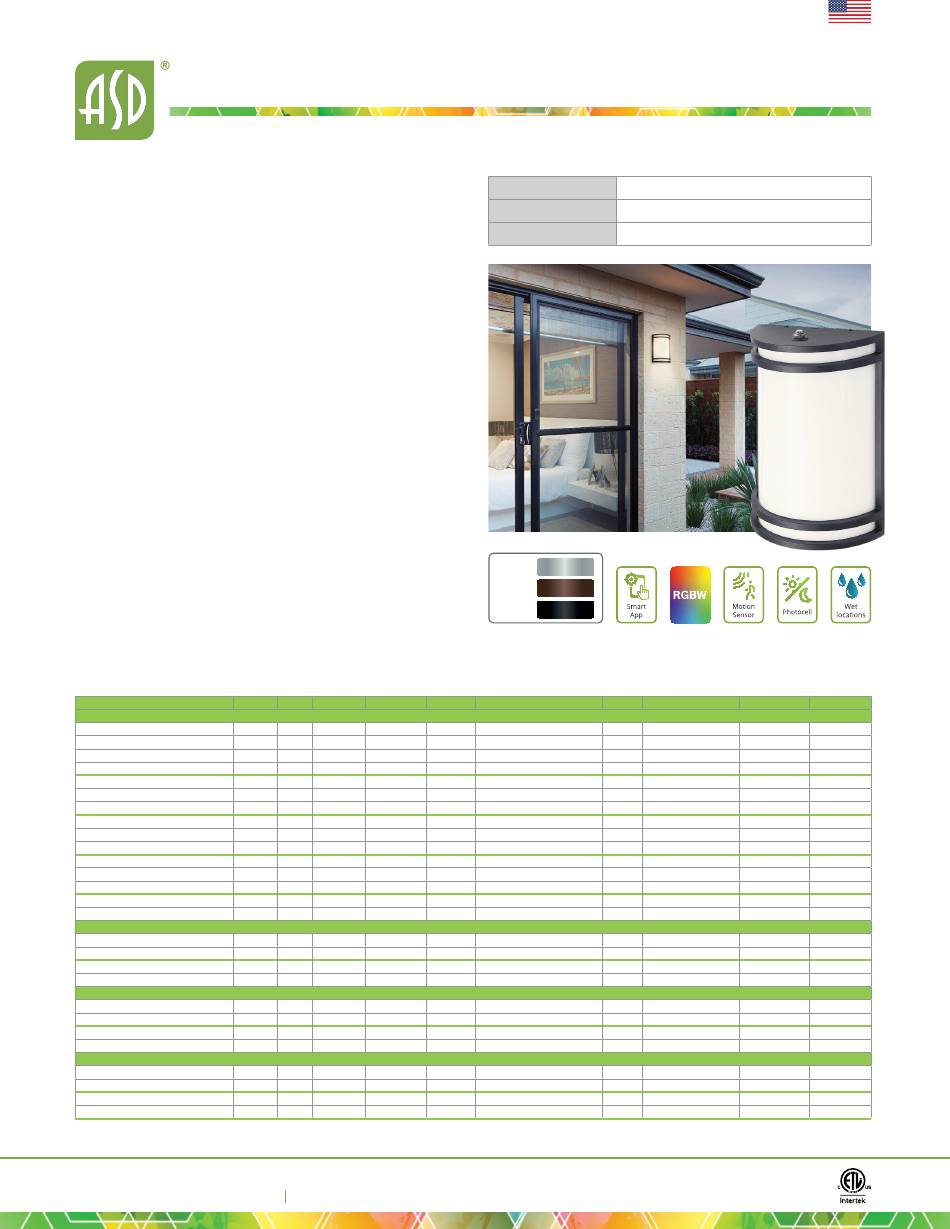

ASD OLWS-21 Series Installation Manual

LED OUTDOOR WALL SCONCE
OLWS-21 series
▶ DESIGN - LED OUTDOOR WALL SCONCE has a modern, multipurpose design
and a stylish look with efficient lighting. The UV resistant PMMA lens with a 120°
beam angle grants you even light distribution. It is designed to operate on 120V
or 120-277V circuits and provides smooth triac dimming capabilities ranging from
10% to 100%.
MOTION SENSOR - The built-in infrared motion sensor will turn off
▶
the fixture automatically when no motion is detected. Installation height 3-6ft,
Detection range up to 26ft, Holdtime 60 sec, Light Threshold 60-300 lux
COLOR SELECTABLE - You can choose either a 3,000K warm white, 4,000K
▶
cool white or 5,000K daylight color temperature.
RGBW - The fixture has RGBW design with APP control. You can easily select
▶
Red, Green, Blue, White (2,700K-6,500K) colors or its' cobinations, having 16.7
million colors in total. You can also choose lighting patterns and set up a schedule,
having a great variety of good looking effects. All of it is easily conrtolled by Smart
APP on your Smartphone. The fixture is also compatible with Alexa and Google
Assistant.
DURABLE WATERPROOF - Housing resistant to rust and impact can
▶
be used outdoors in all weather conditions.
APPLICATION - The fixture is rated for Wet Locations, making it perfect
▶
for indoor and outdoor projects such as decks, front doors, porches, patios,
corridors, walkways, or any other common areas.
▶ ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made
to last decades under normal operation! ASD provides a 5-year limited warranty
along with ETL and Energy Star certifications to guarantee top quality products
and safety!
PRODUCT PRESENTATION:
Model Size
ASD-OLWS-21-D15CC-NK 10 inch
ASD-OLWS-21-10D15CC-NK-2PACK 10 inch
ASD-OLWS-21-D15CC-BZ 10 inch
ASD-OLWS-21-10D15CC-BZ-2PACK 10 inch
ASD-OLWS-21-MV-10D15CC-NK 10 inch
ASD-OLWS-21-MV-10D15CC-BZ 10 inch
ASD-OLWS-21-MV-10D15CC-BK 10 inch
ASD-OLWS-21-MV-18D20CC-NK 18 inch
ASD-OLWS-21-MV-18D20CC-BZ 18 inch
ASD-OLWS-21-MV-18D20CC-BK 18 inch
ASD-OLWS-21-MV-24D25CC-NK 24 inch
ASD-OLWS-21-MV-24D25CC-BZ 24 inch
ASD-OLWS-21-MV-24D25CC-BK 24 inch
ASD-OLWS-21-MV-36D30CC-NK 36 inch
ASD-OLWS-21-MV-36D30CC-BK 36 inch
ASD-OLWS-21GR-MV-24D25NK 24 inch
ASD-OLWS-21GR-MV-24D25BK 24 inch
ASD-OLWS-21GR-MV-36D30NK 36 inch
ASD-OLWS-21GR-MV-36D30BK 36 inch
ASD-OLWS-21-MV-10D15SM-RGBW-NK 10 inch
ASD-OLWS-21-MV-10D15SM-RGBW-BK 10 inch
ASD-OLWS-21-MV-24D23SM-RGBW-NK 24 inch
ASD-OLWS-21-MV-24D23SM-RGBW-BK 24 inch
ASD-OLWS-21-10N15NK-MS 10 inch
ASD-OLWS-21-10N15BK-MS 10 inch
ASD-OLWS-21-18N20NK-MS 18 inch
ASD-OLWS-21-18N20BK-MS 18 inch
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Power Voltage Dimmable Lumens
OLWS-21
15W 120 V TRIAC 1,098 lm
15W 120 V TRIAC 1,098 lm
15W 120 V TRIAC 1,098 lm
15W 120 V TRIAC 1,098 lm
15W 120-277 V TRIAC 1,361 lm
15W 120-277 V TRIAC 1,361 lm
15W 120-277 V TRIAC 1,361 lm
20W 120-277 V TRIAC 2,457 lm
20W 120-277 V TRIAC 2,457 lm
20W 120-277 V TRIAC 2,457 lm
25W 120-277 V TRIAC 3,017 lm
25W 120-277 V TRIAC 3,017 lm
25W 120-277 V TRIAC 3,017 lm
30W 120-277 V TRIAC 3,268 lm
30W 120-277 V TRIAC 3,268 lm
OLWS-21GR WITH GRID
25W 120-277 V TRIAC 2,183 lm
25W 120-277 V TRIAC 2,183 lm
30W 120-277 V TRIAC 2,465 lm
30W 120-277 V TRIAC 2,465 lm
OLWS-21-RGBW
15W 120-277 V SMART APP 1,188 lm
15W 120-277 V SMART APP 1,188 lm
23W 120-277 V SMART APP 2,274 lm
23W 120-277 V SMART APP 2,274 lm
OLWS-21-MS WITH MOTION SENSOR
15W 120-277 V - 1,172 lm
15W 120-277 V - 1,172 lm
20W 120-277 V - 2,002 lm
20W 120-277 V - 2,002 lm
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Nickel
Finish: Bronze
Black
CCT Finish
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-1/4" x 9-15/16"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-1/4" x 9-15/16"
3CCT (3,000/4,000/5,000 K) Bronze 7" x 3-1/4" x 9-15/16"
3CCT (3,000/4,000/5,000 K) Bronze 7" x 3-1/4" x 9-15/16"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-1/4" x 10"
3CCT (3,000/4,000/5,000 K) Bronze 7" x 3-1/4" x 10"
3CCT (3,000/4,000/5,000 K) Black 7" x 3-1/4" x 10"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-1/4" x 17-15/16"
3CCT (3,000/4,000/5,000 K) Bronze 7" x 3-1/4" x 17-15/16"
3CCT (3,000/4,000/5,000 K) Black 7" x 3-1/4" x 17-15/16"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-1/4" x 23-13/16"
3CCT (3,000/4,000/5,000 K) Bronze 7" x 3-1/4" x 23-13/16"
3CCT (3,000/4,000/5,000 K) Black 7" x 3-1/4" x 23-13/16"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-1/4" x 36"
3CCT (3,000/4,000/5,000 K) Black 7" x 3-1/4" x 36"
3CCT (3,000/4,000/5,000 K) Nickel 6-1/2" x 3" x 23-11/16"
3CCT (3,000/4,000/5,000 K) Black 6-1/2" x 3" x 23-11/16"
3CCT (3,000/4,000/5,000 K) Nickel 6-1/2" x 3" x 35-7/8"
3CCT (3,000/4,000/5,000 K) Black 6-1/2" x 3" x 35-7/8"
Red-Green-Blue-2,700K-6,500 K Nickel 7" x 3-1/4" x 10"
Red-Green-Blue-2,700K-6,500 K Black 7" x 3-1/4" x 10"
Red-Green-Blue-2,700K-6,500 K Nickel 7" x 3-1/4" x 23-13/16"
Red-Green-Blue-2,700K-6,500 K Black 7" x 3-1/4" x 23-13/16"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-9/16" x 9-15/16"
3CCT (3,000/4,000/5,000 K) Black 7" x 3-9/16" x 9-15/16"
3CCT (3,000/4,000/5,000 K) Nickel 7" x 3-9/16" x 17-15/16"
3CCT (3,000/4,000/5,000 K) Black 7" x 3-9/16" x 17-15/16"
For most up-to-date spec sheets please refer to asd-lighting.com
English
Dimensions Pre-installed Certification
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
- ETL
Motion sensor ETL
Motion sensor ETL
Motion sensor ETL
Motion sensor ETL
