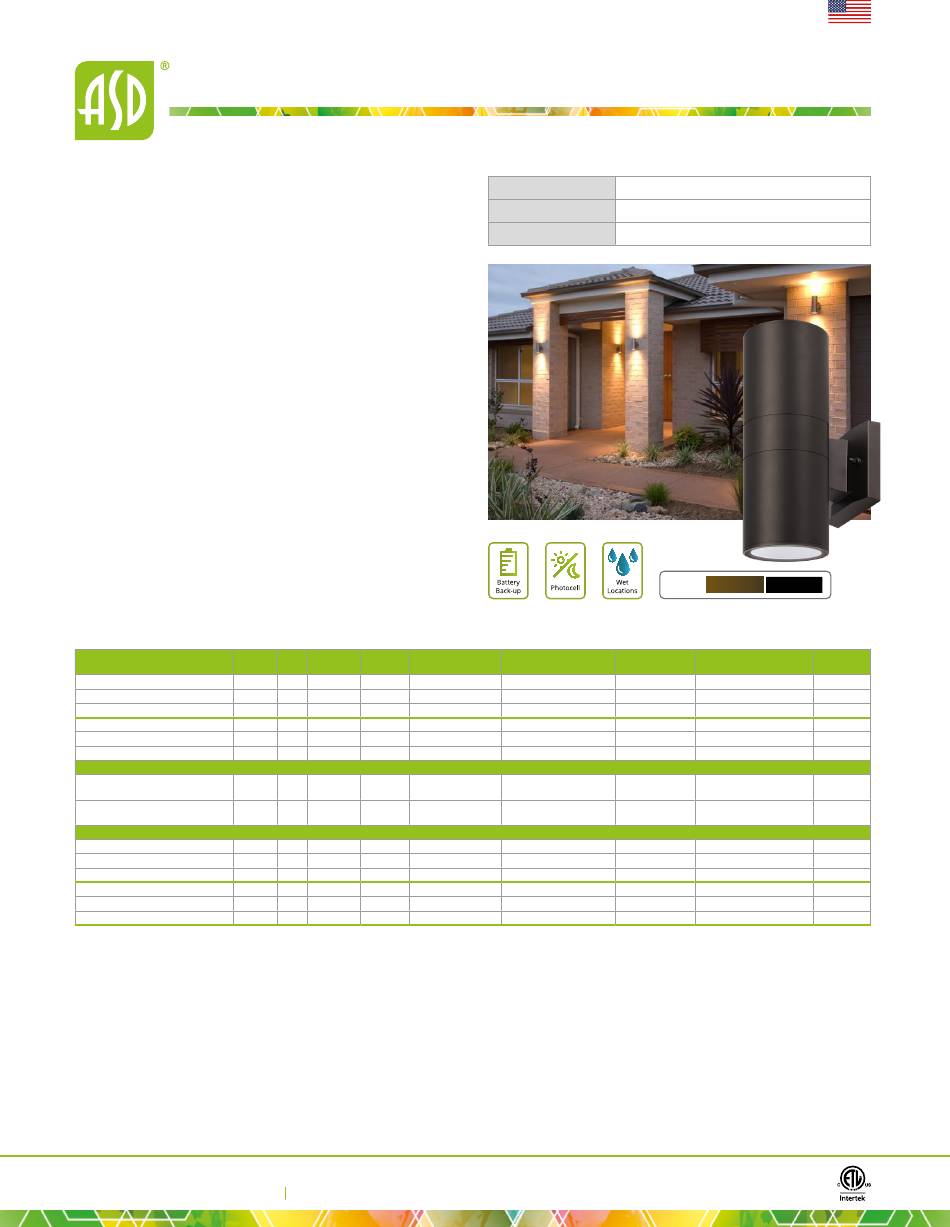

ASD -OLCLR-1D9CC-BZ Manual

LED ROUND OUTDOOR WALL CYLINDER
DESIGN - LED ROUND OUTDOOR WALL CYLINDER has a modern design
▶
with effective up/down illumination. This fixture has a tempered glass cover and
a durable die-cast aluminum body. It is designed to operate on 120V or 120-277V
circuits.
BATTERY BACK-UP - The built-in battery back-up provide 90 minutes of
▶
power in case of emergency.
PHOTOCELL - The built-in Dusk to Dawn Photocell will automatically turn
▶
the fixture on/off depending on the time of day.
COLOR SELECTABLE - You can choose either a 3,000K warm white,
▶
4,000K cool white or 5,000K daylight color temperature.
▶ Durable waterproof housing resistant to rust and impact can be used
outdoors in all weather conditions.
APPLICATION - The fixture is rated for Wet Locations, making it perfect for
▶
indoor and outdoor projects such as decks, front doors, porches, patios, corridors,
walkways, or any other common areas.
ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made
▶
to last decades under normal operation! ASD provides a 5-year limited warranty
along with ETL certification to guarantee top quality products and safety!
Light
Model
direction
ASD-OLCLR-1D9CC-BZ 1
ASD-OLCLR-1D9CC-BK 1
ASD-OLCLR-1D9CC-BK-2PACK 1
ASD-OLCLR-2D18CC-BZ 2
ASD-OLCLR-2D18CC-BK 2
ASD-OLCLR-2D18CC-BK-2PACK 2
ASD-OLCLR-MV-2D18CC-EM-BZ 2
ASD-OLCLR-MV-2D18CC-EM-BK 2
ASD-OLCLR-1N9CC-PC-BZ 1
ASD-OLCLR-1N9CC-PC-BK 1
ASD-OLCLR-1N9CC-PC-BK-2PACK 1
ASD-OLCLR-2N18CC-PC-BZ 2
ASD-OLCLR-2N18CC-PC-BK 2
ASD-OLCLR-2N18CC-PC-BK-2PACK 2
ASD LIGHTING CORP
E-mail: orders@asd-lighting.com
Watts Voltage Dimmable Lumens
9W 120 V TRIAC 910/1,002/870 lm
9W 120 V TRIAC 910/1,002/870 lm
9W 120 V TRIAC 910/1,002/870 lm
18W 120 V TRIAC 1,678/1,859/1,745 lm
18W 120 V TRIAC 1,678/1,859/1,745 lm
18W 120 V TRIAC 1,678/1,859/1,745 lm
OLCLR-EM WITH BATTERY BACK-UP
18W 120-277 V TRIAC 1,556/1,676/1,529 lm
18W 120-277 V TRIAC 1,556/1,676/1,529 lm
OLCLR-PC WITH PHOTOCELL
9W 120 V - 910/1,002/870 lm
9W 120 V - 910/1,002/870 lm
9W 120 V - 910/1,002/870 lm
18W 120 V - 1,678/1,859/1,745 lm
18W 120 V - 1,678/1,859/1,745 lm
18W 120 V - 1,678/1,859/1,745 lm
Web site: www.asd-lighting.com
Catalog number
Notes
Type
Finish:
CCT Finish
3CCT (3,000/4,000/5,000 K) Oil rubbed bronze
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Oil rubbed bronze
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Oil rubbed bronze
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Oil rubbed bronze
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Oil rubbed bronze
3CCT (3,000/4,000/5,000 K) Black
3CCT (3,000/4,000/5,000 K) Black
For most up-to-date spec sheets please refer to asd-lighting.com
English
Bronze Black
Dimensions (LxWxH) Option
4-3/8" x 6-7/16" x 7-7/8" -
4-3/8" x 6-7/16" x 7-7/8" -
4-3/8" x 6-7/16" x 7-7/8" -
4-3/8" x 6-7/16" x 11-13/16" -
4-3/8" x 6-7/16" x 11-13/16" -
4-3/8" x 6-7/16" x 11-13/16" -
6W Battery
4-3/8" x 6-5/8" x 11-13/16"
back-up
6W Battery
4-3/8" x 6-5/8" x 11-13/16"
back-up
4-3/8" x 6-7/16" x 7-7/8" Photocell
4-3/8" x 6-7/16" x 7-7/8" Photocell
4-3/8" x 6-7/16" x 7-7/8" Photocell
4-3/8" x 6-7/16" x 11-13/16" Photocell
4-3/8" x 6-7/16" x 11-13/16" Photocell
4-3/8" x 6-7/16" x 11-13/16" Photocell
