2025-03-06
DP7348-01-DI
M210
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the a+ M210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nexo a+ M210

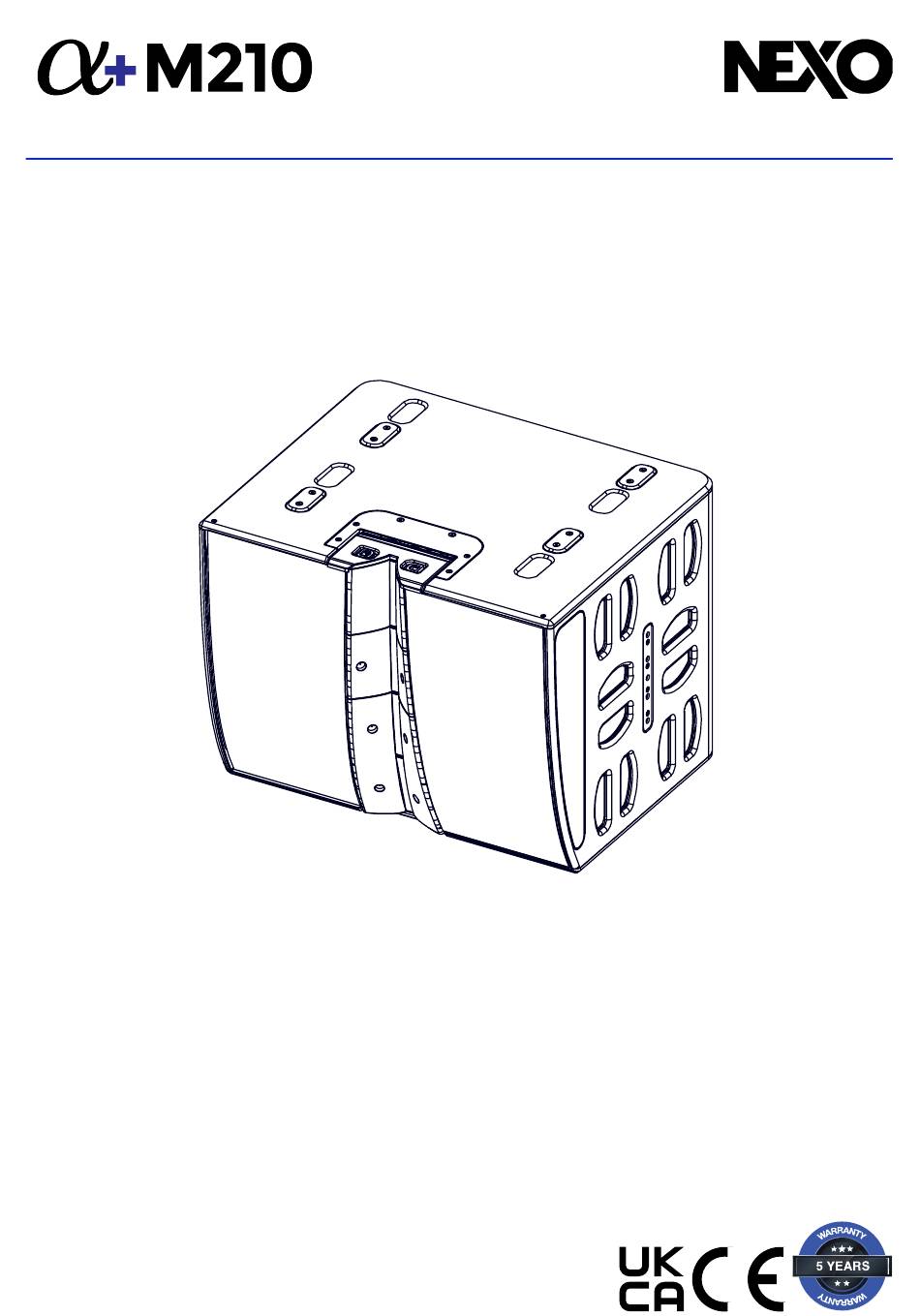

  • Page 1 2025-03-06 DP7348-01-DI M210 User manual...
  • Page 2 TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ___________________________________________________________________ 2 WARNINGS ____________________________________________________________________________ 3 EQUIPMENT ___________________________________________________________________________ 4 DESCRIPTION __________________________________________________________________________ 5 CONFIGURATION _______________________________________________________________________ 6 PRESET _______________________________________________________________________________ 9 ACCESSORIES ________________________________________________________________________ 13 ARRAY EQ ____________________________________________________________________________ 18 MAINTENANCE ________________________________________________________________________ 19 TECHNICAL SPECIFICATIONS ___________________________________________________________ 22 USER NOTES _________________________________________________________________________ 23 Page 2 / 24 M210...
  • Page 3 Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
  • Page 4 Equipment EQUIPMENT 2 locations for hanging. Orientation HF Hold the 2 bolts while pushing the HF assembly backwards, release the bolts to lock. Hold the 2 bolts while pulling the HF assembly forward, release the bolts to lock. Page 4 / 24 M210...
  • Page 5 M210 uses the 1+/1- and 2+/2- pins. → Amplification • The M210 must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of M210 subwoofers usable with each solution.
  • Page 6 CONFIGURATION CONFIGURATION ➢ 1x M210 Wide position is the recommended default mode. Wide Position Narrow Position Without Flange Without Flange Vertical Coverage: -20° to +20° Vertical Coverage: -20° to 0° Horizontal Coverage: Progressive from 120° to 60° (PS Type) Horizontal Coverage: Progressive from 120° to 60° (PS Type) Narrow Position Narrow Position With ANT-FLG90...
  • Page 7 CONFIGURATION ➢ 2x M210 Narrow Position Narrow Position Without Flange ANT-FLG60 on the top M210 Vertical Coverage: -20° à +20° ANT-FLG90 on the bottom M210 Horizontal Coverage: 120° – 60° – 120° Vertical Coverage: -20° à +20° Horizontal Coverage: 120° – 90° – 120° Narrow Position Narrow Position With ANT-FLG60 on the top M210...
  • Page 8 CONFIGURATION Narrow Position With ANT-FLG90 on both 2 M210 Vertical Coverage: -20° à +20° Horizontal Coverage: 120° – 90° – 120° Page 8 / 24 M210...
  • Page 9 PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. The Alpha+ M210 must always be used with its companion bass module the B218 (ratio :1x B218 for 1x M210) ➢ STACK 1 Column: 1 or 2 L20 / 1x B218 / 1x M210 (Narrow – Wide)
  • Page 10 PRESET ➢ STACK 2 Colums 4x L20 / 2x B218 / 2x M210 (Narrow) Page 10 / 24 M210...
  • Page 11 PRESET ➢ FLOWN 1: 1x M210 (Narrow – Wide) ➢ FLOWN 2: 2x M210 (Narrow) ➢ FLOWN 3: 1x B218 / 1x M210 (Narrow – Wide) Page 11 / 24 M210...
  • Page 12 PRESET ➢ FLOWN 4: 1x L20 + 1x B218 or 2x B218 / 1x M210 (Narrow – Wide) Page 12 / 24 M210...
  • Page 13 All M210 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling M210 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire M210 accessory range if any component is purchased from different supplier.
  • Page 14 ACCESSORIES ANI-LK01 Rigging System M210 sous M210 Refer to the Product Data Sheet. ANI-LK02 Rigging system M210 under 1x B218 Refer to the Product Data Sheet. Page 14 / 24 M210...
  • Page 15 ACCESSORIES ANI-LK03 Rigging System M210 under 2x B218/L20 Refer to the Product Data Sheet. ANI-EXB01 Kit barres d’extension pour ANI-LKxx Refer to the Product Data Sheet. Page 15 / 24 M210...
  • Page 16 ACCESSORIES ANT-FLG60 Flange 60° for M210 Refer to the Product Data Sheet ANT-FLG90 Flange 90° for M210 Refer to the Product Data Sheet VNT-CPL04 Link B218/M210 – M210/M210 Refer to the Product Data Sheet Page 16 / 24 M210...
  • Page 17 ACCESSORIES VNT-CAS01 Kit casters Refer to the Product Data Sheet ANT-COVM210 : COVER FOR M210 Page 17 / 24 M210...
  • Page 18 ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): rray ad usting re uency rray ad usting re uency Page 18 / 24 M210...
  • Page 19 MAINTENANCE MAINTENANCE Grille Changing: Remove 8 screws Remove 2 screws from bottom and one Pull the bottom of the grille forward.. Release the grille from the lug at the top from top corner of the HF block. Side Grille Changing Remove the 7 screws on each side, remove the side grilles When reassembling, pay attention to screw lengths: the 4 longest are for the inner side.
  • Page 20 MAINTENANCE Removing HF Block Remove 4 screws on the bottom. First release the bottom of the HF block, then the top. Remove 6 screws on the top. Be careful not to trap your fingers in the HF guides. Disconnect cable Removing HF Remove 4 nuts + washers.
  • Page 21 MAINTENANCE Spare parts MARK QUANTITY REFERENCE DESIGNATION 05M210UA-LS Complete side left grille Black (with fasteners) 05M210UA-LSPW Complete side left grille White (with fasteners) 05M210UA-L Complete left grille Black (with fasteners) 05M210UA-PWL Complete left grille White (with fasteners) 05M210UA-R Complete right grille Black (with fasteners) 05M210UA-PWR Complete right grille White (with fasteners) 05M210UA-RS...
  • Page 22 Frequency range (±6dB) Peak SPL Level (1m) 148 dB Peak Operating voltage 45 Vrms (150 Vpeak) 500 Hz to 1500 Hz overlap, optimized with proprietary software NEXO Polar Crossover Frequency Combiner Vertical Directivity Adjustable: Wide (-20°/+20°) or Narrow (-20°/+0°) Horizontal Directivity 120°...
  • Page 23 USER NOTES USER NOTES Page 23 / 24 M210...
  • Page 24 USER NOTES Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 24 / 24 M210...
