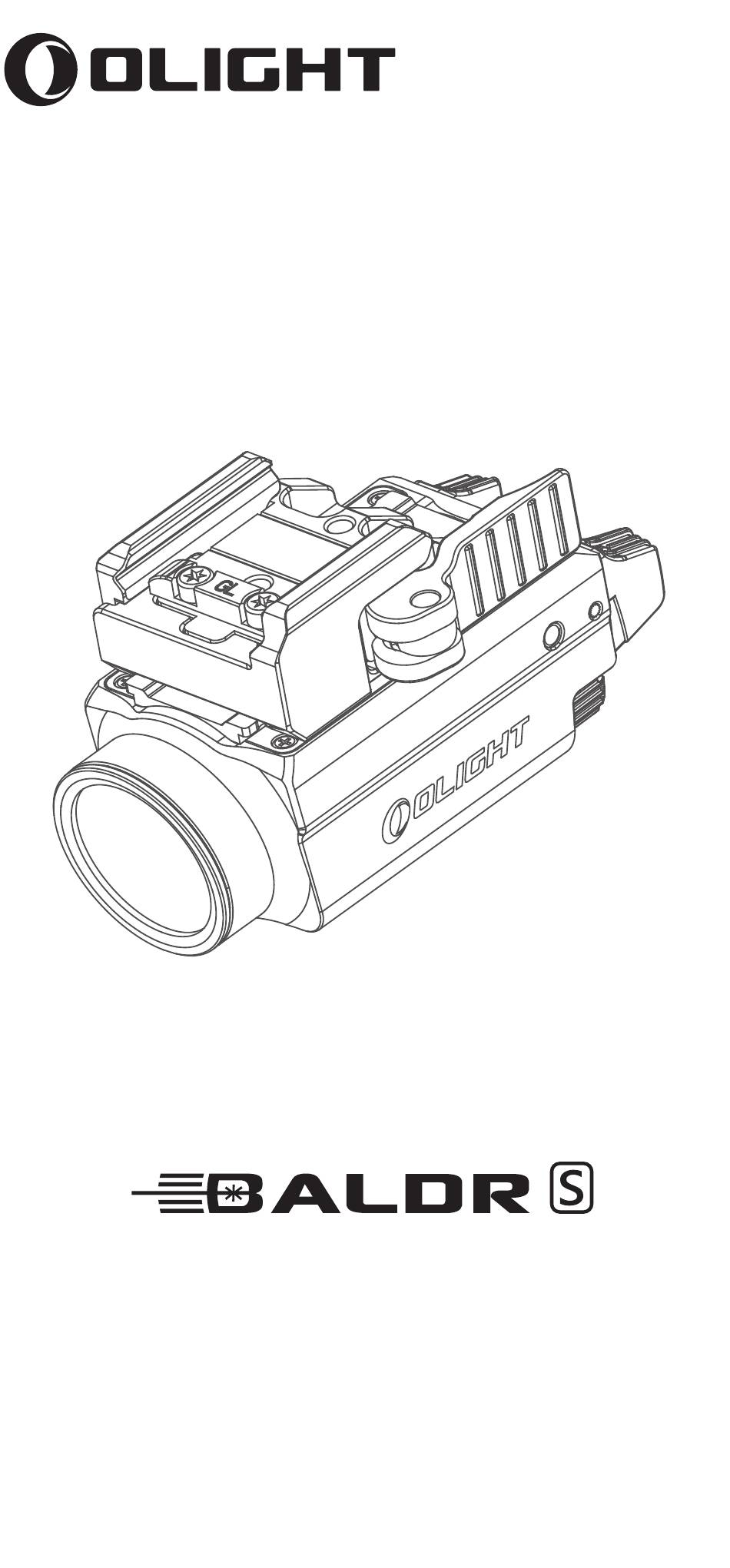

- Page 1 USER MANUAL Thank you for purchasing this Olight Product. Please read this manual carefully before use and keep it for future reference!
- Page 2 IN THE BOX USB Magnetic BALDR S ( With Battery ) Charging Cable Allen Wrench NYLOK NYLOK 1913 Oval Point Set Screw Cone Point Set Screw Adapter and Screws M3x4 Socket Screws...
- Page 3 HIGH: 4400cd HIGH: 130m IPX4 LOW: 540cd LOW: 45m Max Output: 5mW 63*32.5*36mm Max Runtime: 5h 3.35oz 2.48*1.28*1.4in Wavelength: 510~530nm Including Battery * The green beam level is Class 3R, obeying the standard IEC60825-1 requirement. * All above specifications are test results based on ANSI/NEMA FL1 Standard.
- Page 4 Vertical Calibration Hole of Green Beam Horizontal Calibration Hole of Green Beam Magnetic Charging Port Light Setting Switch BEFORE FIRST USE GREEN Charging Completed Charging * The low battery indicator will turn red when the light is working and the battery level is less than 10%. * Connect the USB end of the charging cable to an external USB power source, then attach the other end of the magnetic charging cable to the charging port of the light.
- Page 5 LIGHT INSTALLATION 1. Pull open the swing arm. 2. Slide the rail mount to your desired position. 3. Use the included Allen wrench to ensure that the two socket screws are tight. (Two backup socket screws are included)
- Page 6 LIGHT SETTING LIGHT LIGHT&GREEN BEAM GREEN BEAM Light Setting Switch COMPATIBILITY CHECK: The BALDR S can be used on most Glock or Picatinny (mil-std-1913) type rails. The Glock adapter labelled “GL” is already installed and a Picatinny (mil-std-1913) adapter is...
- Page 7 included in the package. To install the light on Picatinny (mil-std-1913) rails, the user needs to replace the “GL” adapter with the included 1913 adapter using the screws and wrench provided in the package. GREEN BEAM CALIBRATION: Use the included hex wrench to rotate the adjustment screws on the side of the light to calibrate the vertical or horizontal angle of the green beam, and finally sight in the green beam for accurate use.
- Page 8 • Always attach the light on the rail could better protect the switch and avoid damage caused by falling. • The BALDR S can only be charged with the included MCC special charging cable, not compatible with other MCC cables.
- Page 9 LED/green beam combined, white LED only accordingly. The ambidextrous switch on the BALDR S can only be pressed down to activate the light. Pressing the side or front of the switch will not turn it on.
- Page 10 WARRANTY Within 30 days of purchase: Contact the original seller for repair or replacement. Within 2 years of purchase: Contact Olight for repair or replacement. This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an Authorized retailer or Olight itself.
