OLIGHT Baton 3 Pro User Manual

Rechargeable flashlights
Hide thumbs

Advertisement

Quick Links

Download this manual
A powerful compact rechargeable
side switch Flashlight.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Baton 3 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for OLIGHT Baton 3 Pro

Summary of Contents for OLIGHT Baton 3 Pro

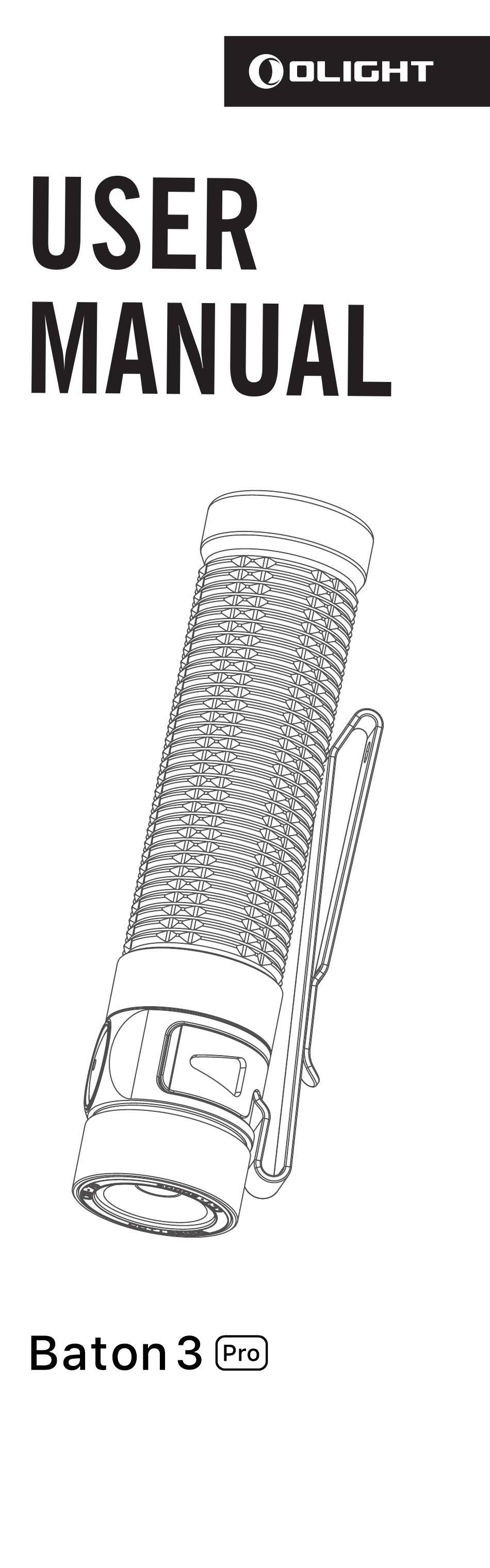

  • Page 1 A powerful compact rechargeable side switch Flashlight.
  • Page 2 IN THE BOX Pouch L-Shape Stand Flashlight USB Magnetic Charging Cable COOL WHITE CCT: 5700~6700K CRI:70 NEUTRAL WHITE CCT: 4000~5200K CRI:70 TURBO 1,500 lumens 100% 2min 177min HIGH 180min 600 lumens 100% 25min MEDIUM 120 lumens 100% 100h 15 lumens 100% MOONLIGHT 120 days...
  • Page 3 ORB-186C32 103g /3.63oz (L)3.99* (D)0.91in (Including Battery) 3200mAh 3.6V (L)101.4 *(D)23mm * Above data are tested per ANSI/NEMA FL 1-2009 standard in Olight's labs for reference. Cable length 0.5m USB-A 5V 2A Input Output CC&CV 4.2V±0.05V 2.0A About 3.5 hours...
  • Page 4 Figure 2 Red: Charging Green: Charging Completed Figure 3 Press...
  • Page 5 Figure 4 Press and hold >1 sec >2 sec Figure 5 Press and hold 1 to 2 sec...
  • Page 6 Figure 6 Double press TURBO Figure 7 Press and hold Moonlight Turbo High Medium...
  • Page 7 Figure 8 Triple press Strobe Figure 9 Double press and hold Blink once : 3 min Blink twice : 9 min...
  • Page 8 Figure 10-1 Green: >60% Orange: 10~60% Red: 5~10% Blink Red: <5% Figure 10-2 Moonlight OFF: >5% Blink Red: <5%...
  • Page 9 Figure 11 L-shape stand application...
  • Page 10 （ EN ） English Multi-language dictionary, see Table 3; 1. Product specification, see Table 1 and Table 2; 2. Operating instructions as below： 2.1 Remove the insulating film, see Figure 1; 2.2 Charging, see Figure 2; 2.3 ON/OFF, see Figure 3; 2.4 Lockout / unlock, see Figure 4;...
  • Page 11 WARRANTY Within 30 days of purchase: Contact the original seller for repair or replacement. Within 5 years of purchase: Contact Olight for repair or replacement. Battery warranty: Olight offers a one-year warranty for all rechargeable batteries. MCC magnetic USB charging cable: One year.
  • Page 12 Dongguan Olight E-Commerce Technology Co., Ltd 4th Floor, Building 4, Kegu Industrial Park, No 6 Zhongnan Road, Changan Town, Dongguan City, Guangdong, China. Made in China 3.4000.0504 C. 10, 26, 2022...
