Summary of Contents for OLIGHT Baton turbo

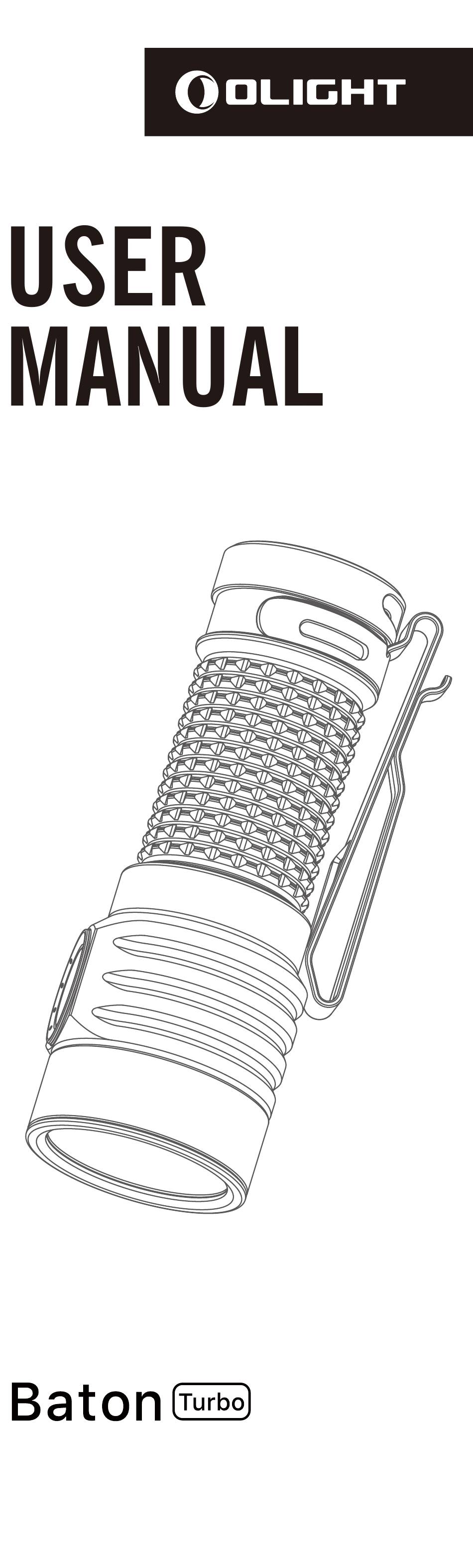

- Page 1 Portable, long-range EDC flashlight.
- Page 2 IN THE BOX Pouch Lanyard Sleeve (for Baton Turbo USB Magnetic CR123A Battery) Charging Cable LIGHT SOURCE MAX 10.8W/LED COOL WHITE CCT: 6,500~7,500K CRI:70 1,000 2.5min TURBO 100% lumens 92min 103min HIGH 100% lumens 18min MEDIUM 100% lumens 100% lumens 50days ＜1...
- Page 3 Rechargeable Li-ion Battery (L)81.7*(D)29mm ( * 1.14in 1100mAh 3.6V (3.96Wh) (L)3.22 * Above data are tested per ANSI/PLATO FL 1-2019 standard in Olight's labs for reference. Cable length 0.5m Input USB Type-A, DC 5V, 1A Output CC & CV, 4.2V, 1A Charging time About 1.5 hours...
- Page 4 Figure 2 Charge the flashlight Red: Charging Green: Charging Completed Figure 3 Turn on/off the light Press...
- Page 5 Figure 4 Lock/Unlock Press and hold >1 sec >2 sec Figure 5 Moonlight mode Press and hold 1 to 2 sec Moonlight...
- Page 6 Figure 6 Turbo mode Double press quickly TURBO Figure 7 Strobe mode Press 3 times (or more) quickly Strobe...
- Page 7 Figure 8 Change the brightness level Press and hold Moonlight Turbo High Medium Figure 9 Auto Shut-Off function Double press and hold Flash once : 3 min Flash twice : 9 min...
- Page 8 Green: 25%~50% Green: 10%~25% Red: ＜10% Note: When an Olight 18350 battery with a level below 10% is removed and reinserted, the light will detect it as a single-use battery, and the battery and brightness indicators will not light up when the light is turned on.
- Page 9 （ EN ） English Multi-language dictionary, see Table 3. 1. Product specifications, see Table 1 and Table 2. 2. Operating instructions as below: 2.1 Remove the insulating film before use, see Figure 1. 2.2 Charge the flashlight, see Figure 2. 2.3 Turn On/Off the flashlight, see Figure 3.
- Page 10 Shut-Off function, the previous timing setting will be used. 3. Indicators instructions as below: 3.1 Brightness level indicator, see Figure 10-1. 3.2 Battery level indicator, see Figure 10-2. （ CN ） 简体中文 多语言字典，参见 Table 3。 产品参数参见 Table 1与Table 2。 操作指引见下： 使用前移除绝缘片，参见Figure 1。...
- Page 11 WEEE Disposal and Recycling Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, to protect human health and the environment, you should dispose of your waste equipment at a designated collection point for the recycling of WEEE, appointed by the government or local authorities.
- Page 12 NMB-005 du Canada. EU Declaration of Conformity Hereby Hereby Dongguan Olight E-Commerce Technology Co.,Ltd declares that the equipment [Baton Turbo] is in compliance with Directive 2014/30/EU and RoHS Directive 2011/65/EU & (EU) 2015/863. The full text of the EU declaration of conformity is available at the following internet address:https://www.olight.com/download.
- Page 13 2 or 5-year warranty. The warranty covers defects in material and workmanship under normal use, excluding loss, theft, deliberate damage, or cosmetic damage. For complete warranty information, please visit Olight.com or your local Olight official website. Australia Customer Support contact@olightstore.com.au Austria Customer Support kontakt@olightstore.at...
- Page 14 Dongguan Olight E-Commerce Technology Co., Ltd 4th Floor, Building 4, Kegu Industrial Park, No. 6 Zhongnan Road, Chang'an Town, Dongguan City, Guangdong, China. Made in China CAN ICES-005 (B) / NMB-005 (B) 3.4000.1030 B. 06, 13, 2024...
