Summary of Contents for OLIGHT Baton 3 Pro Max

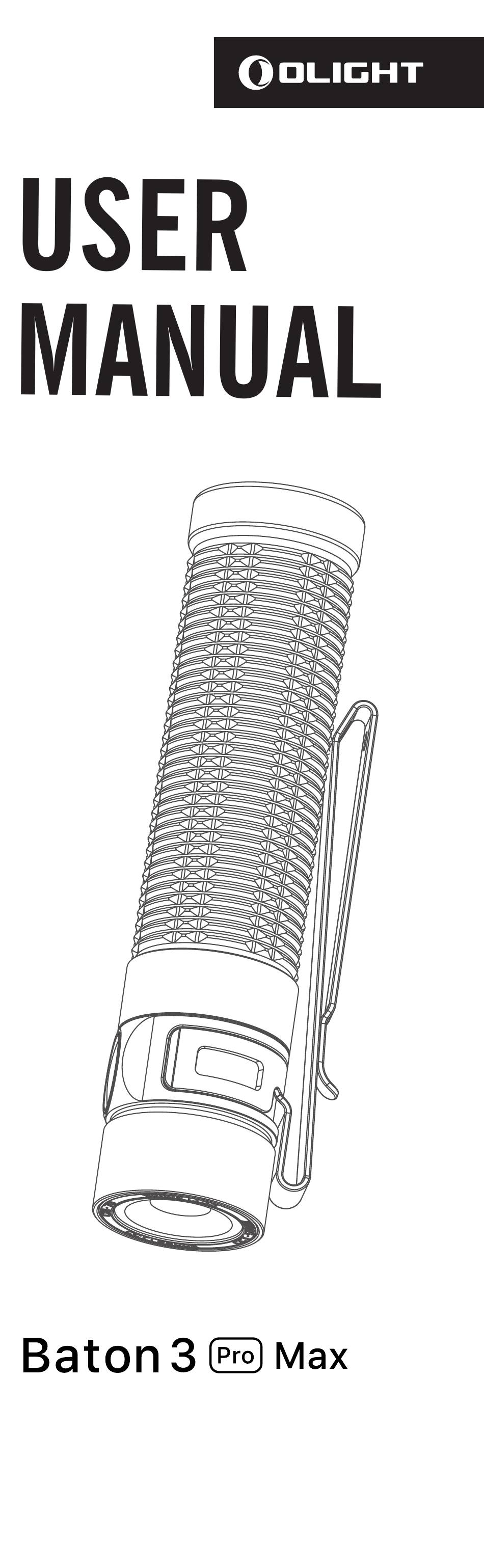

- Page 1 A powerful compact rechargeable side switch Flashlight.
- Page 2 IN THE BOX Pouch L-Shape Stand USB Magnetic Flashlight Charging Cable COOL WHITE CCT: 5700~6700K CRI:70 NEUTRAL WHITE CCT: 4000~5200K CRI:70 TURBO 2,500 lumens 100% 1min 190min HIGH 195min 800 lumens 100% 70min MEDIUM 120 lumens 100% 150h 15 lumens 100% MOONLIGHT 47 days...
- Page 3 ORB-217C40a 148g /5.22oz (L)4.49* (D)1.02in (Including Battery) 4000mAh 3.6V (L)114 *(D)26mm * Above data are tested per ANSI/NEMA FL 1-2009 standard in Olight's labs for reference. Cable length 0.5m USB-A 5V 2A Input Output CC&CV 4.2V±0.05V 2.0A About 3.5 hours...
- Page 4 Figure 1 Remove the insulating film Figure 2 Red: Charging Green: Charging Completed...
- Page 5 Figure 3 Press Figure 4 Press and hold >1 sec >2 sec...
- Page 6 Figure 5 Press and hold 1 to 2 sec Figure 6 Double press TURBO...
- Page 7 Figure 7 Press and hold Moonlight Turbo High Medium Figure 8 Triple press Strobe...
- Page 8 Figure 9 Double press and hold Blink once : 3 min Blink twice : 9 min Figure 10-1 Green: >60% Orange: 10~60% Red: 5~10% Blink Red: <5%...
- Page 9 Figure 10-2 Moonlight OFF: >5% Blink Red: <5% Figure 10-3 Activate the battery level indicator: Flashes for about 5s Hold the flashlight and shake it quickly...
- Page 10 Figure 11-1 HIGH/TURBO Figure 11-2 Near Brightness will automatically reduce to medium.
- Page 11 Figure 11-3 Near HIGH/TURBO Double press Within 5 seconds Figure 12 L-shape stand application...
- Page 12 （EN） English Multi-language dictionary, see Table 3; 1. Product specification, see Table 1 and Table 2; 2. Operating instructions as below： 2.1 Remove the insulating film, see Figure 1; 2.2 Charging, see Figure 2; 2.3 ON/OFF, see Figure 3; 2.4 Lockout / unlock, see Figure 4; 2.5 Moonlight, see Figure 5;...
- Page 13 WARRANTY Within 30 days of purchase: Contact the original seller for repair or replacement. Within 5 years of purchase: Contact Olight for repair or replacement. Battery warranty: Olight offers a one-year warranty for all rechargeable batteries. MCC magnetic USB charging cable: One year.
