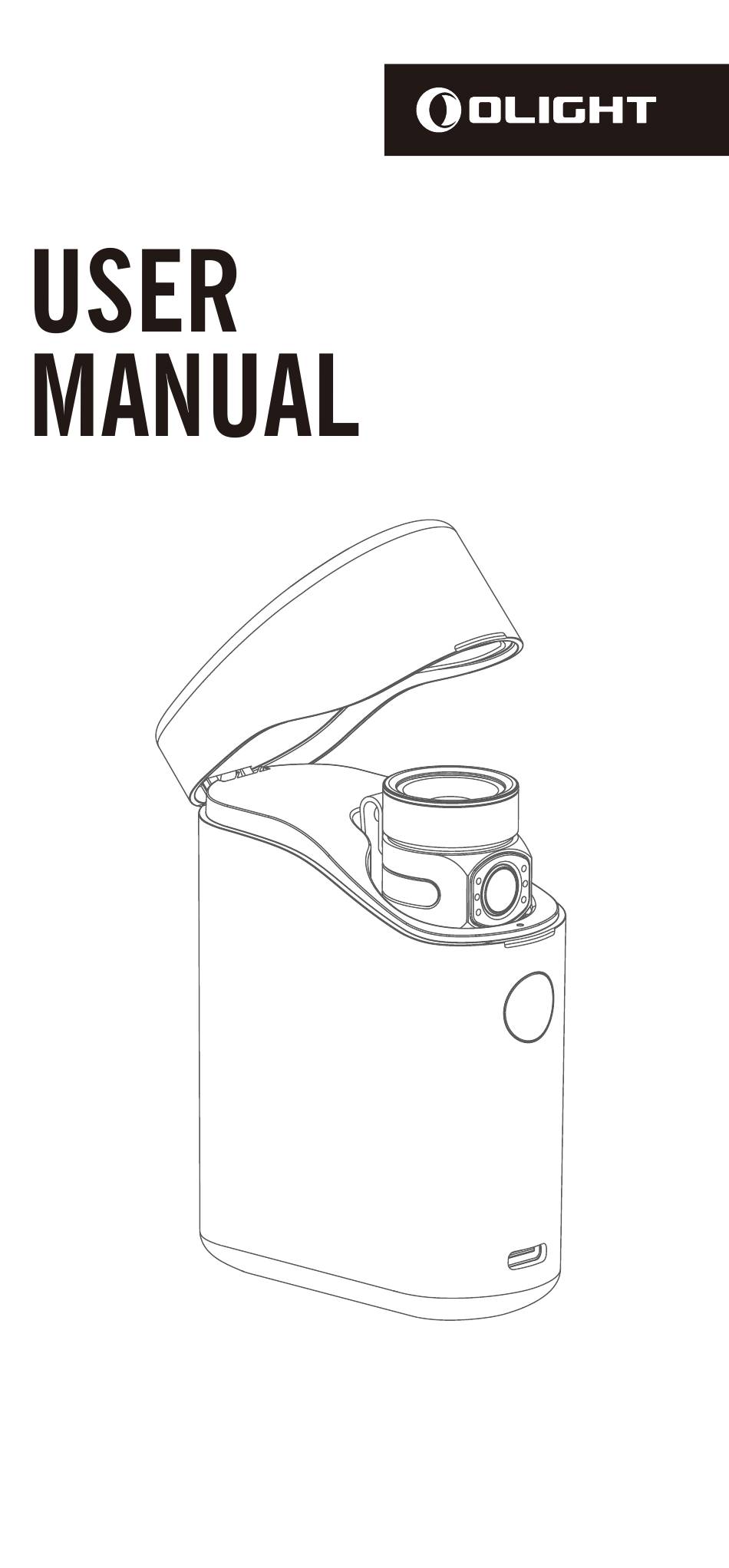

- Page 1 Baton 4 Premium Edition A rechargeable side-switch EDC flashlight with a wireless charger.
- Page 2 IN THE BOX Lanyard Wireless Charger with A Pin Tool USB Charging Microfiber Cleaning Cable Cloth COOL WHITE CCT: 5700~7000K CRI:70 1.5min 1,300 TURBO 100% 2.5min lumens 73min 7min HIGH 72min 100% lumens 16min MEDIUM 100% lumens 100% lumens 30days MOONLIGHT 100% lumens...
- Page 3 Working temperature IPX8 0-40°C 2.34 52.5g/1.85oz (L)63 *(D)21mm (L)2.48* (D)0.83in (Including Battery) * Above data are tested per ANSI/PLATO FL 1-2019 standard in Olight's labs for reference. Main Body Plastics Dimensions 65*32*88mm / 2.56*1.26*3.46in Weight 142g / 5.01oz Battery Capacity 5000mAh 3.6V (18Wh)
- Page 4 Figure 1 Product Overview Baton 4 Internal Indicator Display button Wireless Charger Type-C Charging Port Figure 2 Remove the insulating film before use Remove the insulating film...
- Page 5 Unscrew Remove the insulating film Figure 3 Charge the Wireless Charger Constantly on Blink Charging Completed Charging...
- Page 6 Figure 4 Charge the flashlight with the charger GREEN Charging Completed Charging Figure 5 Charge external devices with the charger...
- Page 7 Baton 4 operation instructions Figure 6 Turn On/Off the flashlight Press Figure 7 Lock/Unlock Press and hold >1 sec >2 sec...
- Page 8 Figure 8 Moonlight mode Press and hold 1 to 2 sec Moonlight Figure 9 Turbo mode Double press TURBO...
- Page 9 Figure 10 Strobe mode Triple press Strobe Figure 11 Adjusting brightness Press and hold Moonlight Turbo High Medium...
- Page 10 Figure 12 Auto Shut-Off function Double press and hold Flash once : 3 min Flash twice : 9 min Figure 13-1 Brightness level indicator High Medium Low/Moonlight If the brightness level indicator fluctuates, it means that the current brightness level is at least 47% or higher.
- Page 11 Figure 13-2 Battery level indicator Green:≥60% Green: 10%~60% Green: 5%~10% Red: ＜5% Wireless charger operation instructions Figure 14 Turn the flashlight ON/OFF with the charger Press...
- Page 12 Figure 15 Close the lid to turn off the light Close the lid Note: This feature is incompatible with S1R/S1RII/ Perun mini/Perun 2 mini. Figure 16 Moonlight mode Press and hold 1 to 2 sec Moonlight...
- Page 13 Figure 17 Change the flashlight brightness with the charger Press and hold Stepless dimming Figure 18 Low battery indication If the charger battery level is below 10% when charging the flashlight, the remaining battery level will be constantly displayed. The battery level will be displayed when the display button is pressed or the charger lid is opened or closed.
- Page 14 （ EN ） English Multi-language dictionary, see Table 3. Product specifications, see Table 1 and Table 2. Product overview, see Figure 1. Product instructions as below: Remove the insulating films before first use, see Figure 2. Open the wireless charger and remove the insulating film between the charger and the flashlight.
- Page 15 the button once or hold it down to exit Strobe mode. 6.6 Adjusting brightness, see Figure 11. When the flashlight is on, press and hold the button. The flashlight will cycle through Low, Mid, and High modes, starting from the present brightness level.
- Page 16 WARRANTY Within 30 days of purchase: Contact the original seller for repair or replacement. Within 5 years of purchase: Contact Olight for repair or replacement. Battery warranty: Olight offers a one-year warranty for all rechargeable batteries. Wireless Charger: 2 years.
