iBeam TE-50VS Product Manual

I. Specifications
Display: 5.0 (16:9)
Power: ≤3W
Power Supply: DC 12V
Pixel: 480(W)*RGB*272(H)
Contrast: 350:1
PAL / NTSC compatible
AV signal auto detect power on/off
II. Installation

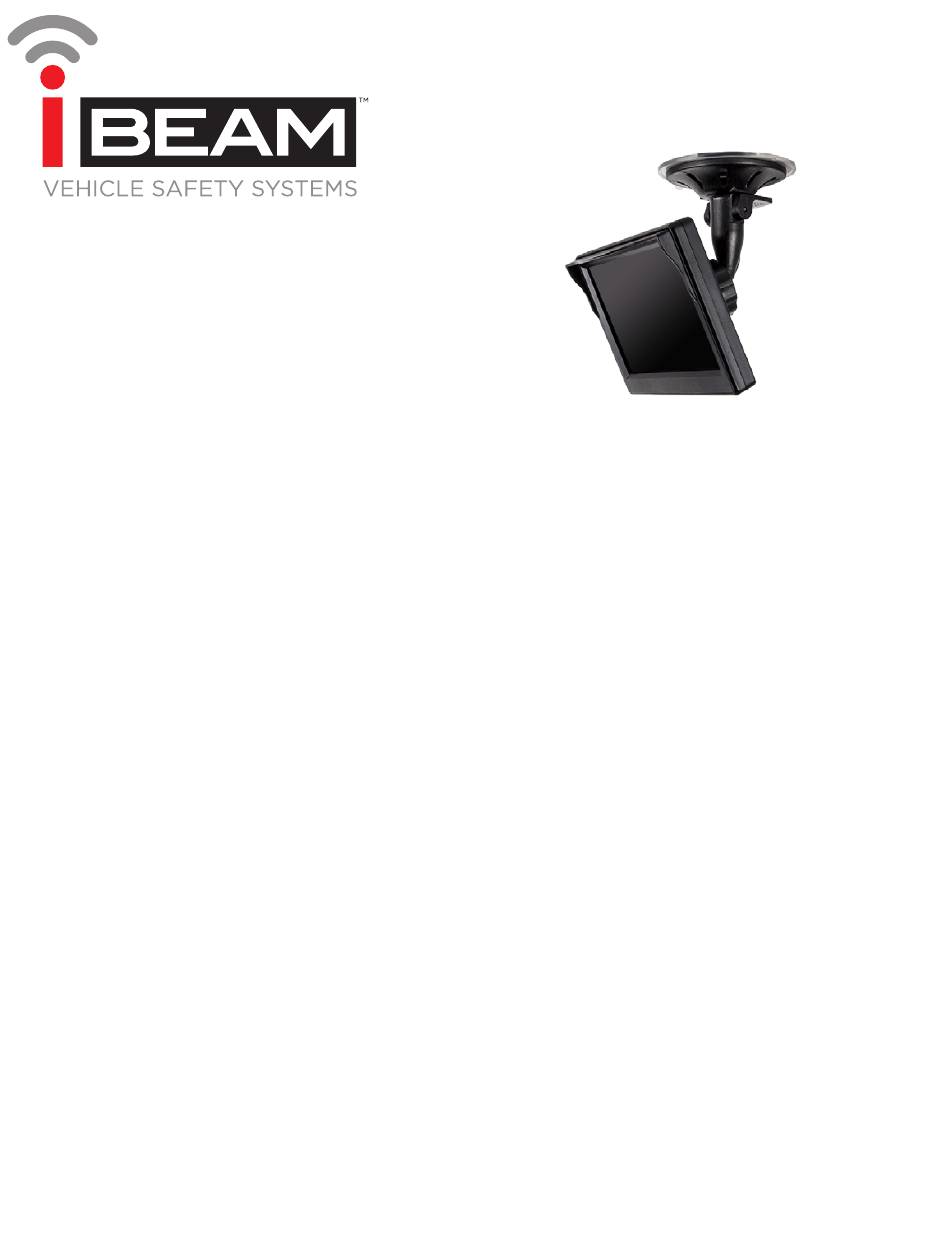

1) 5" color video screen that can mount on the window (with supplied suction
cup mount) or dash (with supplied mounting base with 3M tape)
2) Connect the RED wire to the +12 volt accessory wire
3) Connect the BLACK wire to ground (a metal, non-painted surface)
4) Plug video cable from any source with a composite video output into
either of the video inputs of the video screen. The video screen will
automatically turn on when it detects a video source and it turn off when
that video source stops.
5) To adjust settings such as color, contrast, brightness, language and screen
ratio use the middle button on the back to scroll through settings and use
the top and bottom buttons to select.
NOTE: If the video screen is used with a backup camera use AV2 input (this
will allow for automatic triggering when vehicle is placed in reverse and will
override the AV1 input) the video screen has a built in shade on top, this is
how the screen should be mounted.
