TE-DGH/TE-DGHC (CMOS)
RAM 1500 (2009-2017)
RAM 2500 (2010-2017)
Replacement Tailgate Handle
with Camera
Removal and Installation
Instructions
Tools Needed: T30 torx bit, ratchet, 8mm
socket.

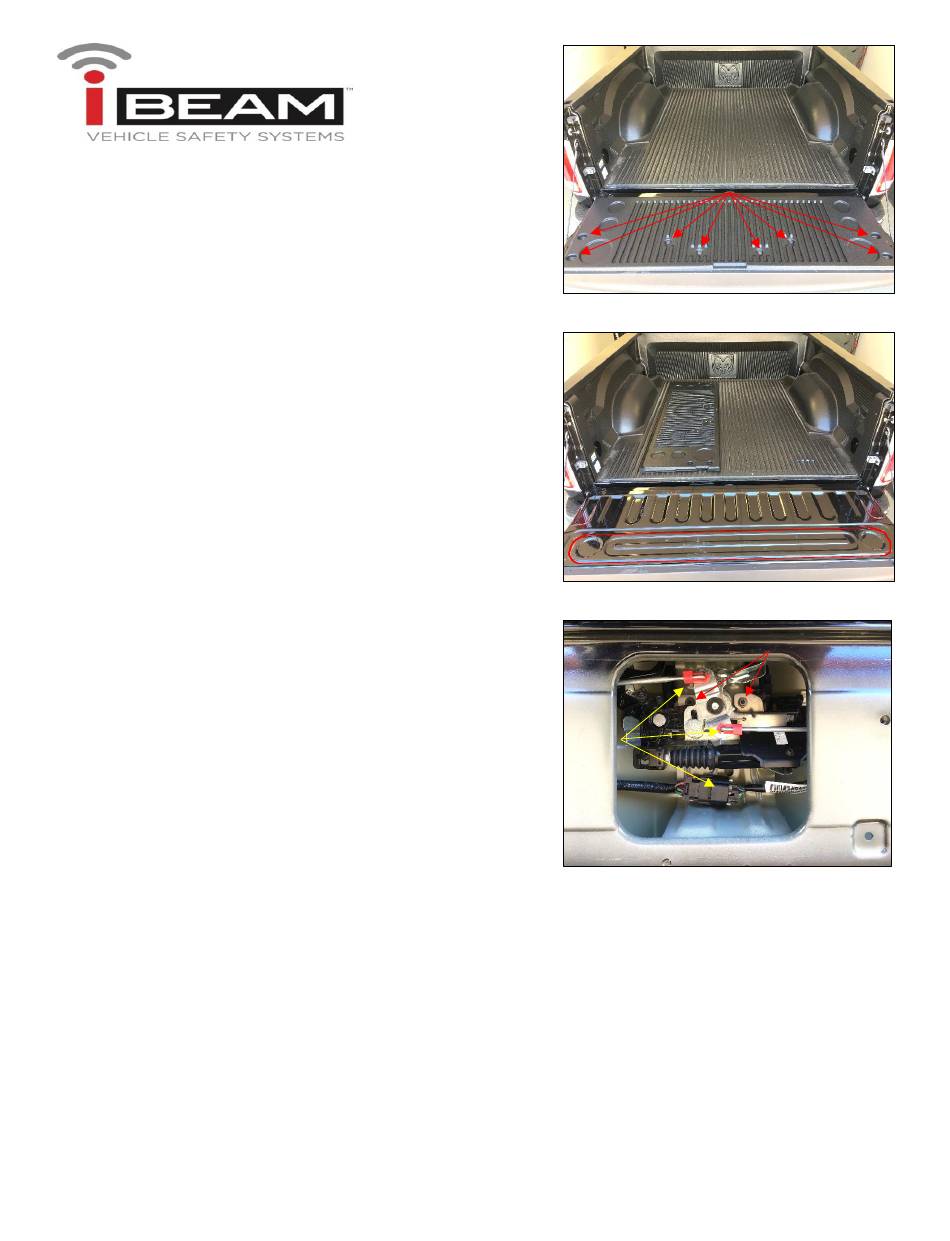

1. Start by lowering the tailgate and remove
the (8) T30 torx screws from the bed liner,
remove liner (Fig. A), remove access panel
(Fig. B), and place aside.
2. Now that you have access to the handle
assembly, disconnect harness running to lock
actuator and unclip (2) latch rods. (Fig. C)
3. Next, remove (2) 8mm nuts located below
latch connectors, then slide latch assembly
aside. (Fig. C)
4. Gently remove handle by lifting the handle
from the outside and slowly working it out.
5. Now that the handle is out of the tailgate,
you will have to swap the locking mechanism
out of the old handle to the new one.
6. Start by removing the (2) 8mm screws from
locking mechanism, and then remove
mechanism from handle. (Fig. D)
7. Now place the locking mechanism in the new
handle and secure it with the factory 8mm
screws.
Fig. A
Fig. B
Fig. C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iBeam TE-DGH
Summary of Contents for iBeam TE-DGH
- Page 1 TE-DGH/TE-DGHC (CMOS) RAM 1500 (2009-2017) RAM 2500 (2010-2017) Fig. A Replacement Tailgate Handle with Camera Removal and Installation Instructions Tools Needed: T30 torx bit, ratchet, 8mm socket. 1. Start by lowering the tailgate and remove Fig. B the (8) T30 torx screws from the bed liner, remove liner (Fig.
- Page 2 8. Next, remove taillight and splice the red power wire from the camera’s harness into the reverse light’s 12v positive wire. This will trigger the camera to turn on when vehicle is placed in reverse. Attach the black ground wire to a metal non-painted surface. 9.
