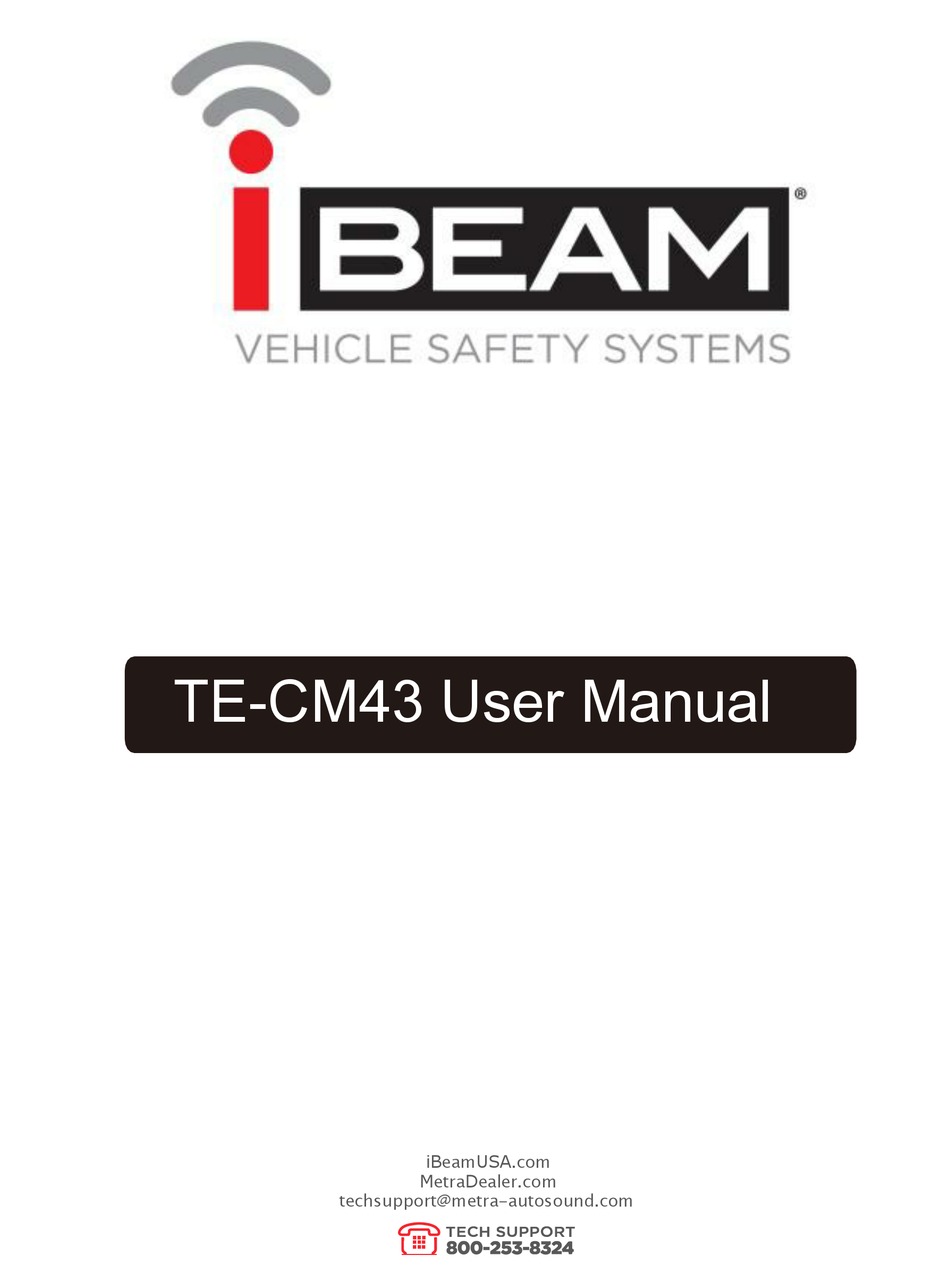

- Page 1 TE-CM43 User Manual iBeamUSA.com MetraDealer.com techsupport@metra-autosound.com � TECH SUPPORT 800-253-8324...
- Page 2 1. Mirror 3. Specification Screen size 4.3 inch Display screen Frameless TFT LCD panel Display resolution 480(H)x234(V) Display mode 16:9 / 4:3 Power consumption DC10-15V Working voltage Video input Signal system PAL / AUTO / NTSC...
- Page 3 4. Operation (1) Pull down on lower spring loaded clips, and place mirror monitor over factory reverse mirror. (2) Run cables, avoid areas that may pinch the cable. (3) Connect yellow RCA to reverse camera output, (4) Connect red wire to switched +12V. (5) Connect black wire to ground (a metal, non-painted surface).
- Page 4 IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
