- Page 1 TE-JPKT Manual...

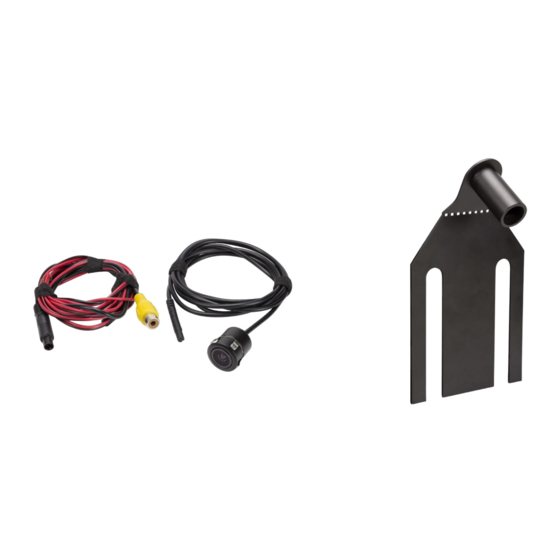

- Page 2 1. Box Contents Camera and wiring Bracket 2 Push nuts • Applications 2007-2018* Jeep Wrangler (* 2018 JK trim only) • Installation of camera • Run camera wire through stem of bracket, DO NOT pop the camera into the bracket before confirming visual on monitor. •...
- Page 3 4. Wiring diagram 22 ft 2 ft 5. Specifications Sensor CMOS 7080 Resolution 480 TV Lines Field of view Diagonal 170º, Horizontal 110º, Vertical 90º Illumination 0.6 Lux IP rating IP67 Parking Lines Defeatable (white loop on harness) Extension cable 26’...
- Page 4 IMPORTANT If you are having difficulties with the installation of this product, please call out Tech Support line at 386-257-1187. Before doing so, looks over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
