Dual Console Configuration
The dual console configuration is available using either of the Dual Console
8 Port switches. Use the same methods described previously to connect the
cables to your unit. Then use the ports on the front of the switch box to
connect an additional keyboard, monitor, and mouse. See "Menu Screen" in
Chapter 4 for information on switching connection modes.
Keyboard,
Mouse,
and
Video Cables

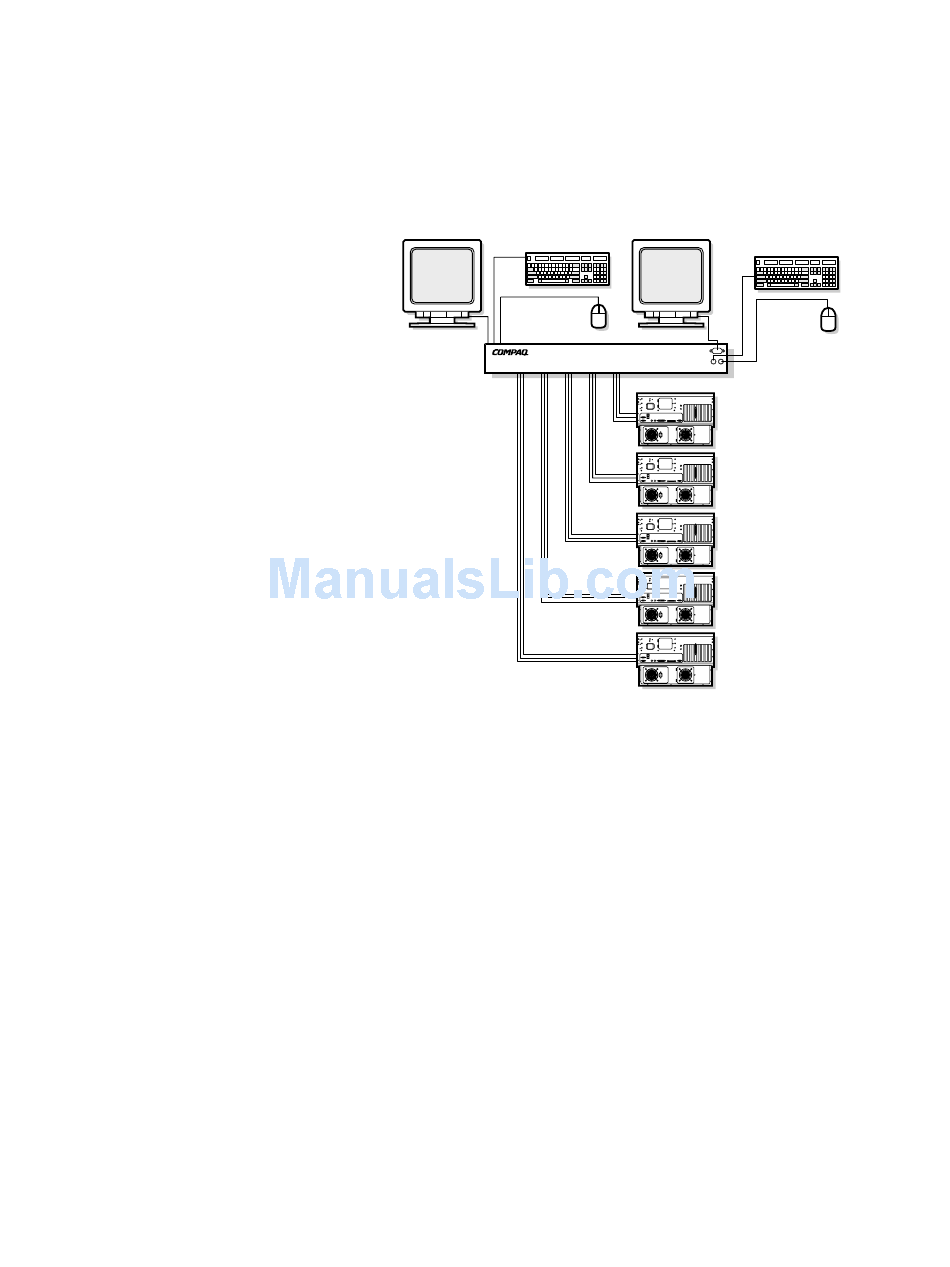

Figure 3-10. 8-Port dual console configuration
