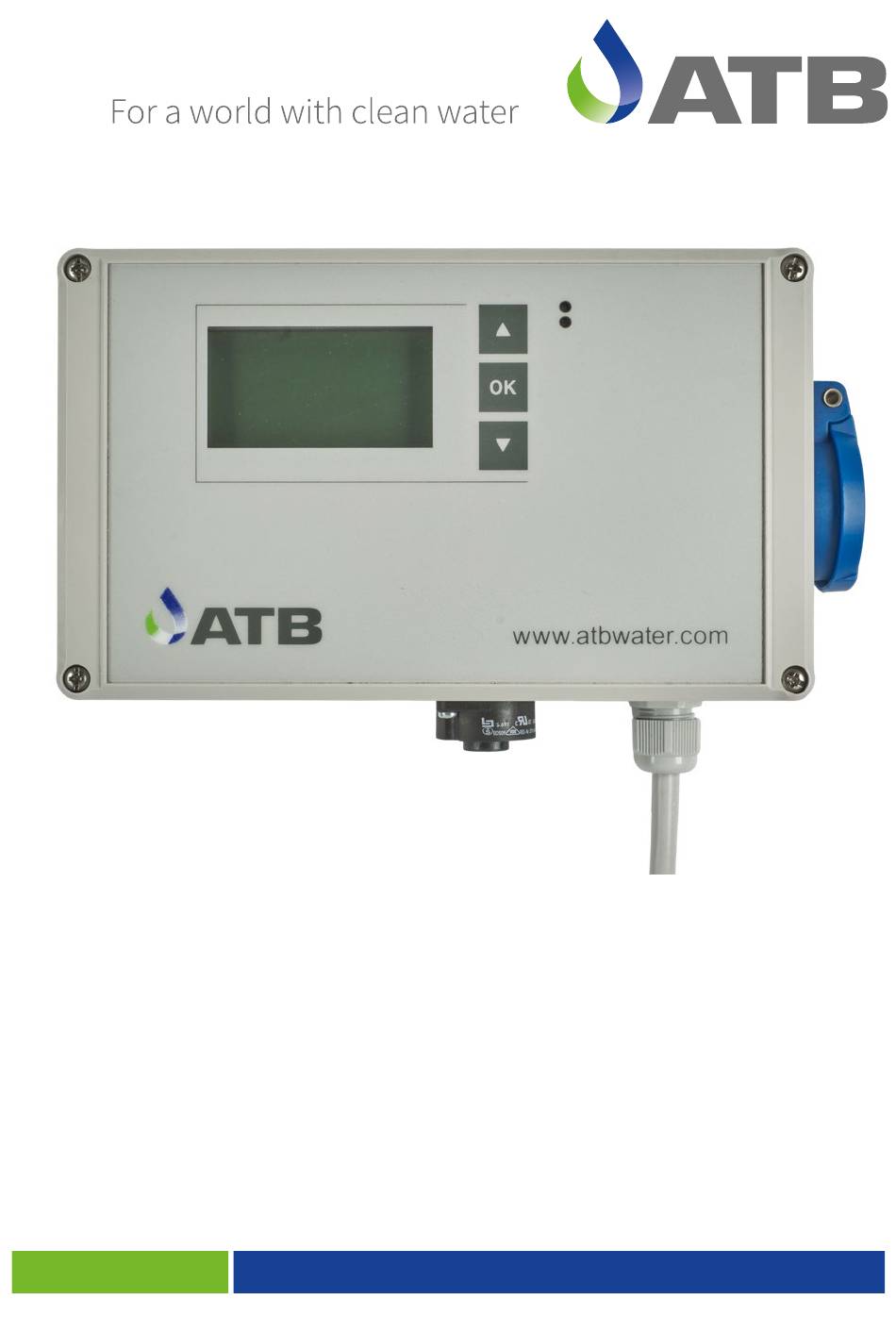

  • Page 1 PUROO®/ PUROO® Complete Operating Instructions...
  • Page 2 Important information for consumers in the EU Disposal instructions for batteries and rechargeable batteries Every consumer is legally obliged to return all used batteries and rechargeable batteries according to the Battery Ordinance (Directive 2006/66/EC). Disposal in the household waste is prohibited. Since batteries and rechargeable batteries are also included in the delivery of products from our range, we would like to point out the following: Used batteries and rechargeable batteries do not belong in the...
  • Page 3 Please take a few minutes to read through this operating instruction closely and carefully. Only in this way is a secure and fault-free operation ensured. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 3 from 36...
  • Page 4 With the removal of clean water, the water level is lowered to the minimum water level ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 4 from 36...
  • Page 5 With renewed rise of the water level to the maximum water level the plant to normal operation following removal of the clean water. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 5 from 36...
  • Page 6 Following the ending of the settling phase the compressed air elevator is again cleaned through several short conveying surges using treated wastewater before the actual clean water removal is applied. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 6 from 36...
  • Page 7 When the water level rises again to the maximum water level, the system returns to normal operation after clear water discharge. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 7 from 36...
  • Page 8 Nationally applicable specifications and technical data are to be observed! If the control unit is used for other applications without express approval of the firm ATB WATER GmbH and/or the following safety notices are disregarded, this can lead to malfunctions or defects in the plant.
  • Page 9 Ensure that no damage to persons, material or downstream equipment can occur, in particular also during the manual commissioning of units (manual operation)! ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 9 from 36...
  • Page 10 If the inputs are correct confirm with YES and OK. Info Changeover to the info indicator follows. Displayed are the selected PT ATBcontrol 1 Connect Puroo number, the software version, time and serial number of the PUROO ® V1.10.10 16:24:52 S-Nr.:0001000 Commissioning is now complete.
  • Page 11 Indicated are the operation phase, the operational condition of the compressor, the remaining running time of the current operation phase, the elapsed time of the respective phase PUROO ® The last line shows the current time and the total operating hours of the aerator.
  • Page 12 Here, WiFi settings and alarm pause times can be changed, a settings WiFi-settings PUROO ® sludge removal can be noted (PUROO® Complete only) and alarm pause escape operating parameters can be viewed. It is only possible to change the operating parameters in Service Mode...
  • Page 13 The ventilation intensity is increased after a certain number of cycles. After sludge removal, this should be reduced back to the basic setting. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 13 from 36...
  • Page 14 Inputs are not checked for plausibility. Our service department would be very happy to provide you with support. ATB WATER GmbH reject warranty claims of any kind for the results of incorrect inputs! 2.3.1 Settings (Service mode) Possibility for modification of preset parameters.
  • Page 15 The current status of the float switch and the current power consumption are displayed. After 15 minutes an automatic return from manual to automatic operation. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 15 from 36...
  • Page 16 With a flooding alarm there is also an automatic reset following a drop of the float switch. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 16 from 36...
  • Page 17  necessary. NO(14) = Normally Open; NC(12) = Normally Closed; C/CO(11) = common conductor ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 17 from 36...
  • Page 18 The exchange of the accumulators with batteries is forbidden due to the danger of explosion! ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 18 from 36...
  • Page 19 Membrane block blocked. Call Service.  Input 24 V Possible cause Rectification Check of the switched float inputs Call Service. negative. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 19 from 36...
  • Page 20 OK key (signal tone) for ca. 3 secs. If the voltage is re- established the signal deactivates automatically. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 20 from 36...
  • Page 21 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 21 from 36...
  • Page 22 ® Info about the PUROO ® Complete aeration settings The continuously increasing sludge volume means in the PUROO Complete plant an increasing ® oxygen demand. Because the plant does not operate time- but inflow-controlled, the number of cleaning cycles give relatively precise conclusions about the wastewater inflow and therefore the sludge growth.
  • Page 23 Schlammvolumen [ml/l] Sludge volume Belüftungsintensität [%] Aeration intensity 1000 +100 + 75 + 50 + 25 T in Monaten Months ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 23 from 36...
  • Page 24 Lower water authorities often require the sending, by the operator or maintenance firm, of the scheduled maintenance reports following each maintenance period. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 24 from 36...
  • Page 25 The sludge/water mixture remaining in the second half is used for inoculation and maintenance of the cleaning performance and must not be pumped out! ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 25 from 36...
  • Page 26 - but at least to a water level of 0.5 m. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status 12.05.2023 / Page 26 from 36...
  • Page 27 WLAN and the control unit becomes "free" again. Only one device can connect to a control unit at a time. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 27 from 36...
  • Page 28 In User level SERVICE you then have the additional option of changing settings. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 28 from 36...
  • Page 29 Date / Time Other information on the control unit, the set unit type and the number of PTs. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 29 from 36...
  • Page 30 ENTER. You can return to the user level "USER" by entering "000000" and LOGIN. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 30 from 36...
  • Page 31 You also have the option of downloading errors and events in the form of an Excel spreadsheet (Download CSV). ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 31 from 36...
  • Page 32 You can return to the user level "USER" by entering "000000" and LOGIN. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 32 from 36...
  • Page 33 Operating Instructions PUROO / PUROO Complete ® ® ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 33 from 36...
  • Page 34 Porta Westfalica, 04.04.2018 Markus Baumann (Managing Director) ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0271 / Status: 12.05.2023 / Page 34 from 36...
  • Page 36 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica Phone +49 5731 30230-0, Fax +49 5731 30230-30, info@atbwater.com, www.atbwater.com Operating instructions PUROO® PUROO® Complete | Art.-No.: 9060 0271 | Stand: 12.05.2023...
