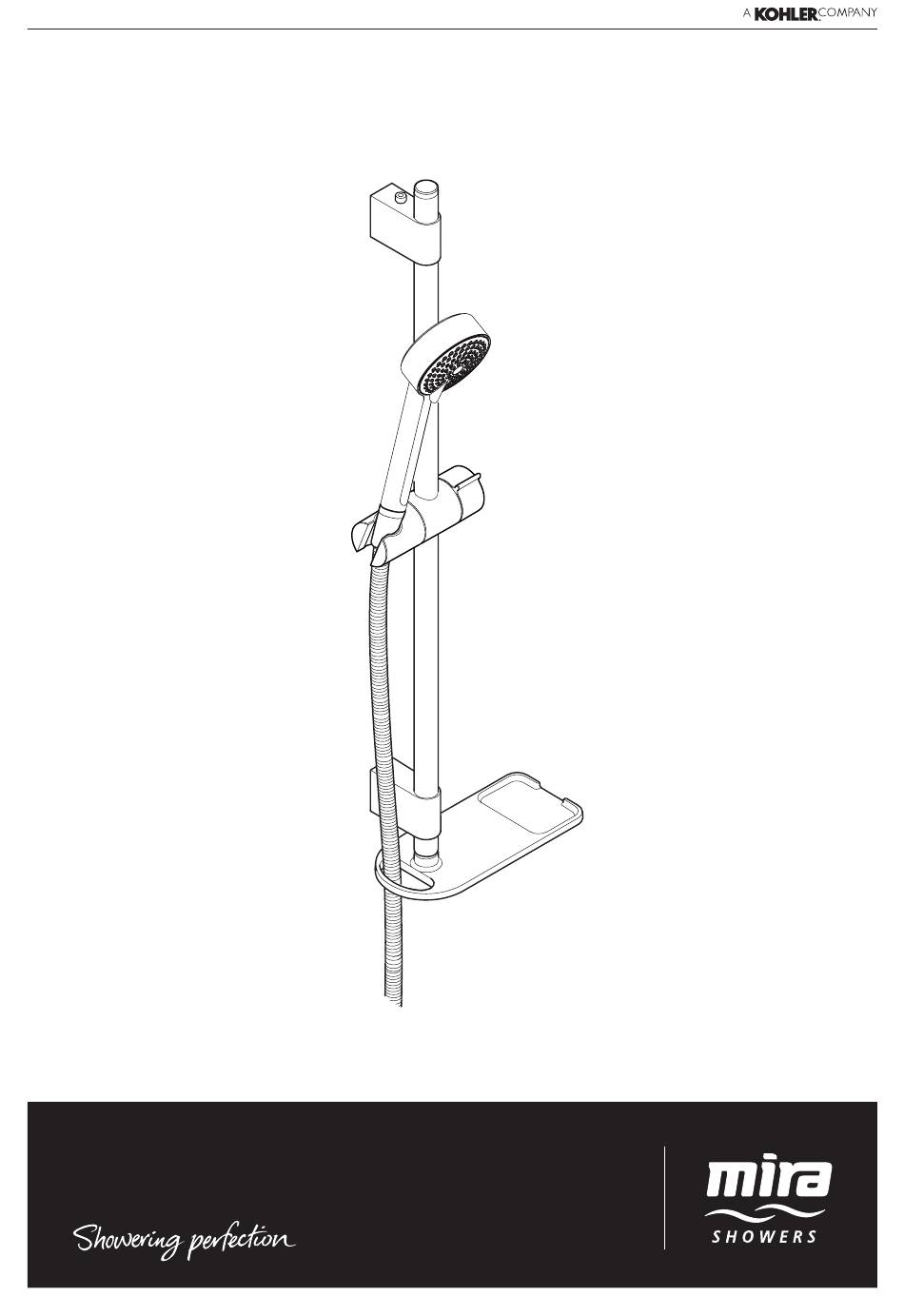

- Page 1 Mira Beat Shower Fittings These instructions must be left with the user Installation Guide...
- Page 2 If you experience any difficulty with the installation or operation of your new Shower Fittings, please refer to ‘Fault Diagnosis’, before contacting Kohler Mira Ltd. Our telephone and fax numbers can be found on the back cover of this guide.
- Page 3 GUARANTEE Guarantee For domestic installations, Mira Showers guarantee the products listed in this guide against any defect in materials or workmanship for a period of one year from the date of purchase. For non-domestic installations, Mira Showers guarantee the product against any defect in materials or workmanship for a period of one year from the date of purchase.
- Page 4 PACK CONTENTS 2 x Wall Plugs 2 x Screws 1 x End Cap 2 x Mounting Brackets 1 x Showerhead 2 x Fixing Screws 1 x Clamp Bracket 1 x Slide Bar 1 x Shower Hose 2 x Hose Seals 2 x Slide Bar Supports 1 x Hex Wrench...
- Page 5 DIMENSIONS 265 mm 701 mm 620 mm...
- Page 6 SPECIFICATIONS Pressures Minimum maintained pressure: 0.1 bar (10 kPa). Maximum maintained pressure: 5.0 bar (500 kPa). Warning! Exceeding the stated maximum maintained pressure could result in excessive spray forces and possible damage to the product. INSTALLATION REQUIREMENTS Installation must be carried out in accordance with these instructions, and must be conducted by designated, qualified and competent personnel.
- Page 7 INSTALLATION Mark the wall fixing positions and drill two holes to suit the wall fixings. Note: For new installations optimum fixing centres 580 mm. Replacement fixing centres 620 mm maximum. Install the wall plugs and the mounting brackets and secure with the screws. Check vertical alignment.
- Page 8 Make sure that the slide bar clamping screws are flush with the inside edge of the slide bar supports. Fit the slide bar supports over the mounting brackets, then adjust the slide bar vertically ensuring an equal length of slide bar protrudes from the top and bottom mounting bracket.
- Page 9 M4 Screws Install the slide bar assembly onto the mounting brackets. Tighten the 2 x M4 screws with the supplied 3 mm hexagonal key. Caution! Do not force assembly on to the mounting brackets, re-align a slide bar support if required. Install the cap on top of the slide bar.
- Page 10 OPERATION The adjustable showerhead has four different spray actions. To select any of the four spray actions, turn the spray plate anticlockwise from the full clockwise position until it clicks once. Mode 1 Mode 2 Mode 3 Mode 4 Full On First Row ON 2nd, 3rd, 4th 1st, 2nd and...
- Page 11 CLEANING Always read the IMPORTANT SAFETY INFORMATION for your shower. Cleaning the showerhead Many household and commercial cleaners, including hand and surface cleaning wipes contain abrasive and chemical substances that can damage plastics, plating and printing and should not be used. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth.
- Page 12 SPARE PARTS 1703.196 GP1502014W-WH 1703.563 1703.194 1703.353 1703.354 1703.351 1703.352 1703.203 1703.202 632.73 1703.127 1703.205 1603.104 1603.168 1703.197 1703.195...
- Page 13 Part Number Description 632.73 Hose Seal (x2) 1603.104 Shower Hose 1.25 m (metal) Chrome 1603.168 Shower Hose 1.75 m (metal) Chrome 1703.127 Slide Bar - Brushed Stainless Steel 1703.194 Mounting Pack - Components Identified 'A' 1703.195 Taper Block 1703.196 End Cap 1703.197 Soap Dish GP1502014W-WH...
- Page 14 NOTES...
- Page 15 ACCESSORIES Genuine Mira accessories can be purchased direct from Customers Services (our contact details can be found on the back cover of this guide) or from approved stockists or merchants. Shower Seat Checkvalve - 1688.282 Flow Regulator (12 L/min - Red) White - 2.1536.128 - 1641.059 To c o m p l y w i t h U K Wa t e r...
- Page 16 Kohler Mira Limited. Cromwell Road, Kohler France S.A.S. Cheltenham, 30 Boulevard de la Bastille, The company reserves the right Gloucestershire 75012 Paris, to alter product specifications GL52 5EP France without notice. 14648 1167324-W2-C © Kohler Mira Limited, July 2023...
