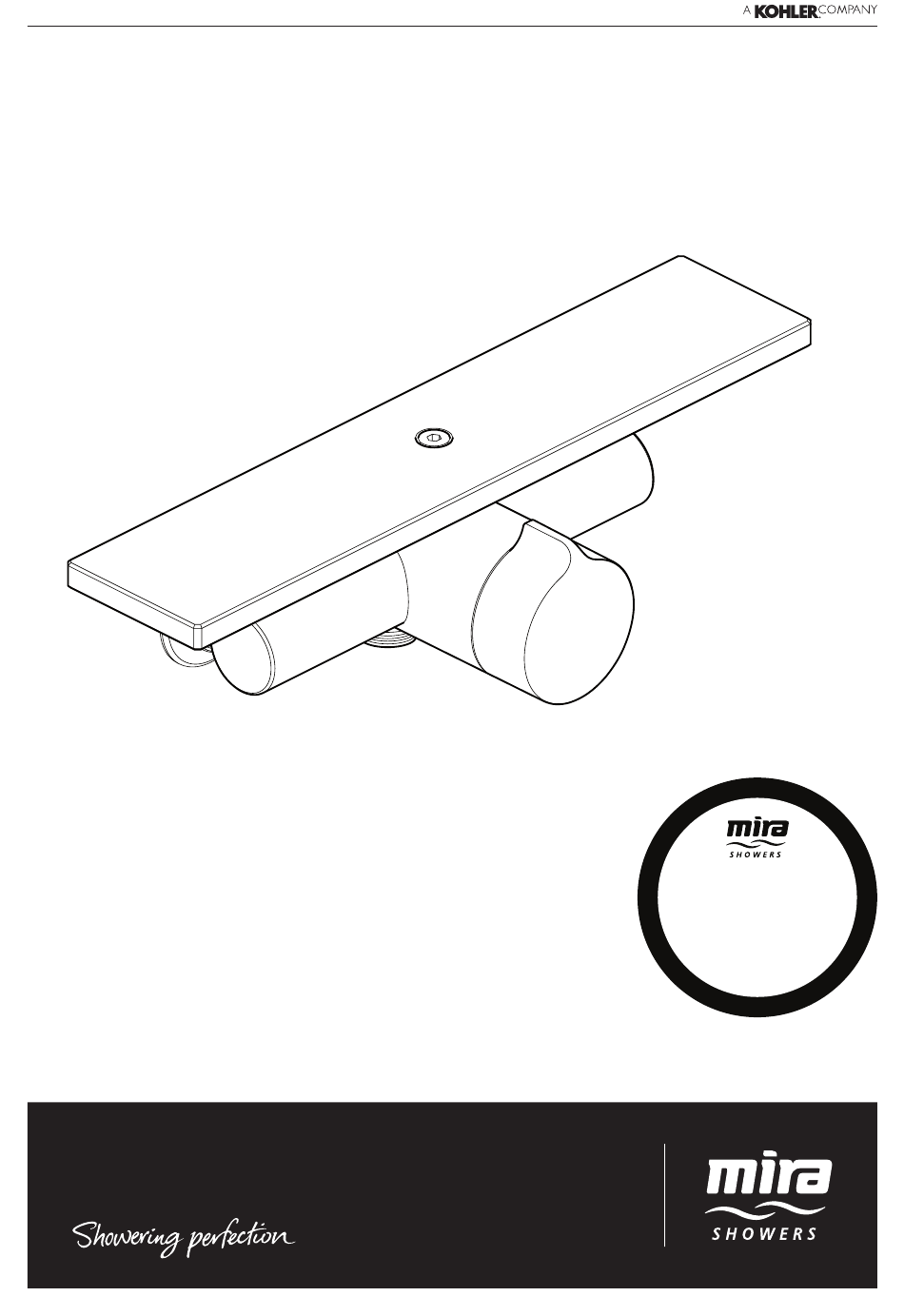

- Page 1 Mira Bijou and Mira Ordo Thermostatic Mixers For SPARES, ADVICE or REPAIRS Please call us on 0844 571 5000 (UK Only) These instructions must be left with the user Installation and User Guide...
-
Page 2: Recommended Usage
ü mixing valves with a single control knob for on/off Heavy Commercial and temperature control. û The Mira Bijou has a 300 mm clear glass storage Healthcare û shelf and is supplied complete with Mira L14A Shower Fittings. Patents and Design Registration... -
Page 3: Pack Contents
1 x 4 mm Hexagonal Key 2 x Fixing Screws 1 M6 x 5 mm Grubscrew 1 x 2.5 mm Hexagonal Key 1 x Mira Bijou or Mira Ordo Thermostatic Mixing Valve Documentation 1 x ‘O’ Key 1 x Guarantee Registration Document... -
Page 4: Specifications
Reduce noise through the mixer due to high or unequal pressures. 39 mm • Stabilise incoming supply temperatures. Temperatures 300 mm - Mira Bijou • Factory Pre-set (Blend) Shower: 41°C. 235 mm - Mira Ordo • Optimum Thermostatic Control Range: 35°C to 43°C (achieved with supplies of 15°C cold,... -
Page 5: Installation
6. Decide on a suitable position for the Mixer. INSTALLATION The position of the Mixer and the Shower Fittings must provide a minimum gap of 25 mm Suitable Plumbing Systems between the spill-over level of the shower tray/ bath and the showerhead (refer to illustration). Gravity Fed: This is to prevent back-siphonage. -
Page 6: Installing The Thermostatic Mixer
Installing the Thermostatic Mixer 3. For solid walls drill the holes for the backplate with a 6 mm drill and insert the wall plugs 1. The thermostatic mixer can be installed with (supplied). For other types of wall structure rear or rising supply inlets. Decide on the most alternative fixings may be required (not appropriate method for your installation, and if supplied). - Page 7 6. Reversed Inlet Supplies Only: 7. Remove the backplate from the mixer by loosening the grubscrew with a 2.5 mm Using a suitable tool, carefully remove the hexagonal key (supplied). plug cap from the centre of the sealing plug to reveal keyway. 8.
- Page 8 11. Fit the compression nuts and olives onto the 16. Fit the shower fittings, refer to your shower pipework. fittings installation and user guide for instructions. 12. Align the mixer with the pipework and fit onto the backplate. Note! For user comfort on high pressure systems, a 12 litre/minute flow regulator Important! Make sure that the hot and cold (supplied) can be fitted inside the outlet nipple.
-
Page 9: Operation
2. Carefully remove the concealing cap from the OPERATION control knob. 3. Loosen the control knob grubscrew with the The Mira Bijou and Mira Ordo are thermostatic 2.5 mm hexagon key (supplied) and pull off mixing valves which have a single sequential the control knob. -
Page 10: User Maintenance
Lubricants USER MAINTENANCE Silicone based lubricants must only be used on If you require a Mira trained service engineer or the rubber seals. agent, refer to section: ‘Customer Services’. Caution! Oil based or other lubricant types may cause rapid deterioration of seals. Fault Diagnosis Cleaning Symptom:... -
Page 11: Spare Parts
SPARE PARTS 1663.233 Shelf Assembly (Bijou) 1672.031 Shelf Assembly (Ordo) 1663.157 Backplate Assembly 1663.160 Outlet Plug 1663.231 Elbow Assembly 1663.168 Pipe Concealing 1663.154 1663.152 Plates (x2) Elbow Connector Thermostatic Assembly Cartridge Assembly 1663.265 Flow Regulator 1663.151 Hub and Bearing 1663.158 Assembly 1663.155 Outlet Nipple... -
Page 12: Customer Service
(excludes Eire). Ring 01922 471763 for more details. Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. FM 14648 1091537-W2-E (1672) (B94G) © Kohler Mira Limited, August 2012...
