USB Port Headers (9-pin) : USB2
The headers are used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to the
back panel.
(3)
IDE Activity LED: IDE LED
This connector connects to the hard disk activity indicator light on the case.
(4)
Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred method of
rebooting in order to prolong the lift of the system's power supply. See the figure
below.
(5)
Speaker connector: SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(6)
Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
(7)
Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power ON/OFF the
system.

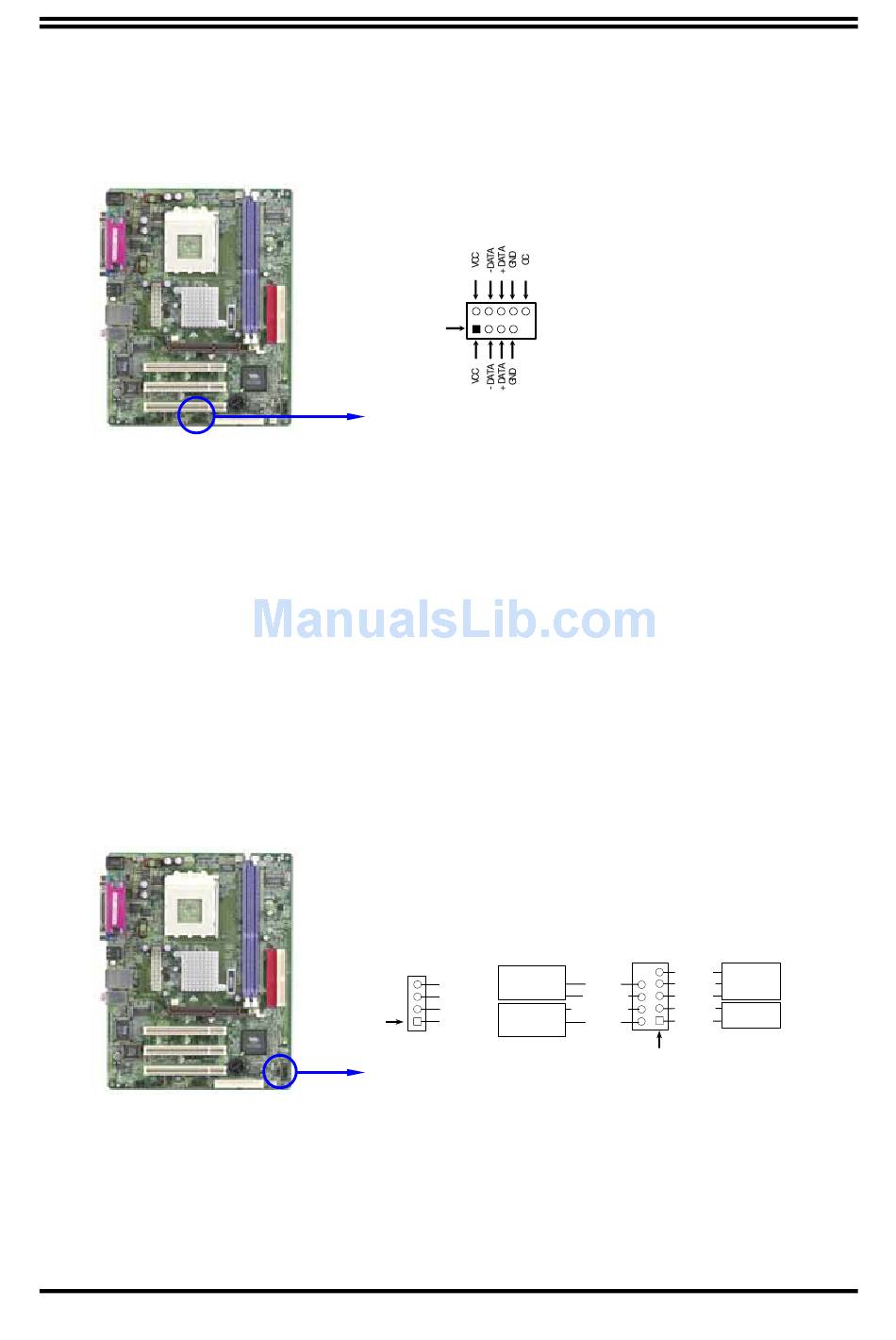

USB2
Pin 1
USB Port Headers
SPEAK
PWRBTN
VCC5
NC
NC
POWER LED
Pin 1
SPKR
System Case Connections
15
JW FP
NC
RESET
GND
RSTSW
PWRBTN
GND
HDDLED
POWERLED
HDLED
VCC5
VCC5
Pin 1
