2-6 Connectors, Headers

2-6-1 Connectors

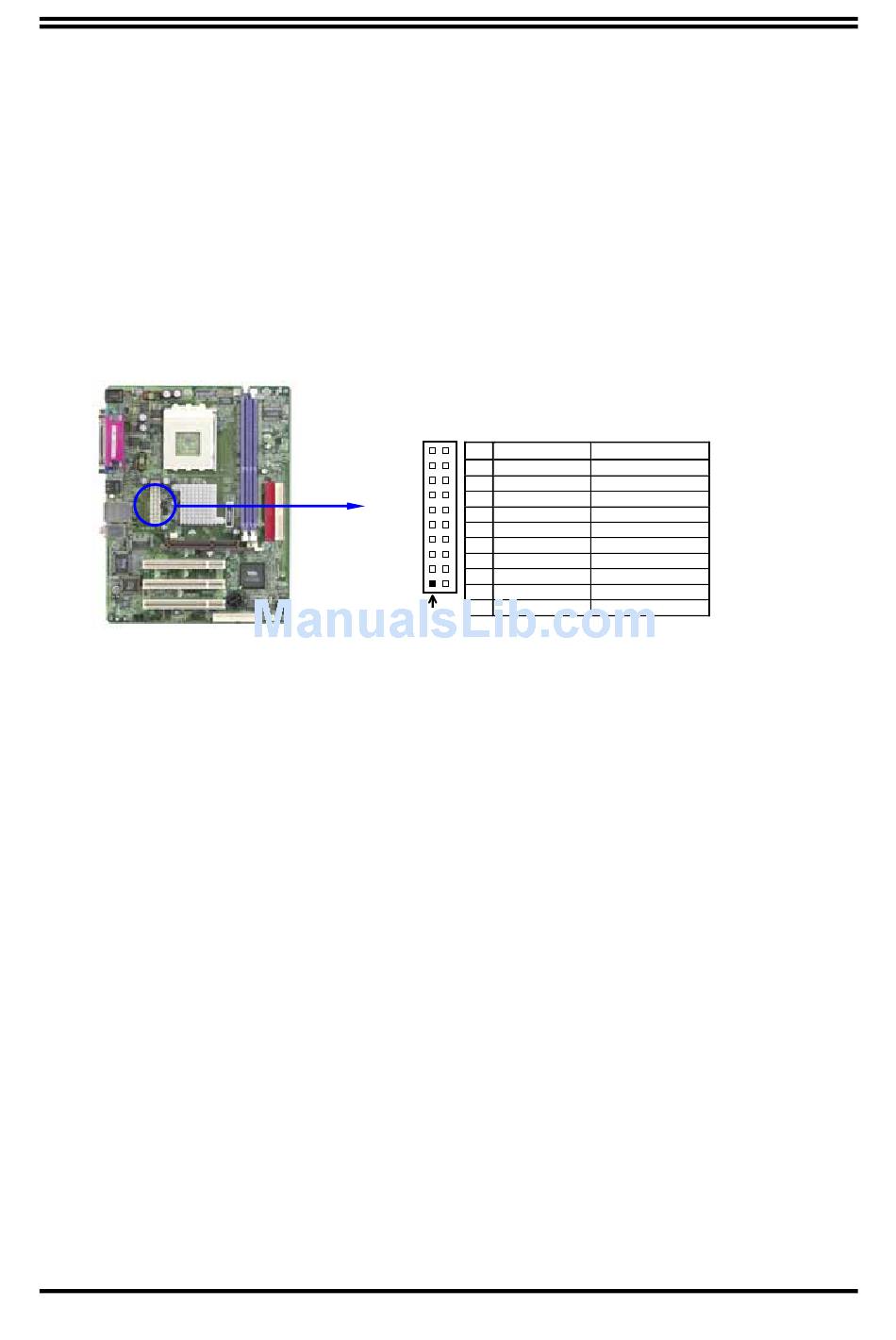

(1) Power Connector (20-pin block) : ATXPOW
ATX Power Supply connector. This is a new defined 20-pins connector that usually
comes with ATX case. The ATX Power Supply allows to use soft power on momentary
switch that connect from the front panel switch to 2-pins Power On jumper pole on the
motherboard. When the power switch on the back of the ATX power supply turned on,
the full power will not come into the system board until the front panel switch is
momentarily pressed. Press this switch again will turn off the power to the system
board.
(2) PS/2 Mouse & PS/2 Keyboard Connector: KB/MS
The connectors for PS/2 keyboard and PS/2 Mouse.
(3) USB Port connector: USB/USB1
The connectors are 4-pin connector that connect USB devices to the system board.
(4) LAN Port connector: LAN (for V4DP/V2DP)
This connector is standard RJ45 connector for Network.
(5) Parallel Port Connector (25-pin female): PARALL
Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-board
Parallel Port can be disabled through the BIOS SETUP.
"INTEGRATED PERIPHERALS SETUP" section for more detail information.
(6) Audio Connector : CN2
This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC.
Line-out :
Line-in :
MIC :
(7) Serial Port COM1 : COM1
COM1 is the 9-pin D-Subminiature email connector. The On-board serial port can be
disabled through BIOS SETUP. Please refer to Chapter 3 "INTEGRATED PERIPHERALS
SETUP" section for more detail information.
(8) VGA Connector (15-pin D-Sub) Connector: VGA
VGA is the 15-pin D-Subminiature female connector for display monitor.
Pin 1
Audio output to speaker
Audio input to sound chip
Microphone Connector
PIN ROW2
1 3.3V 3.3V
2 -12V 3.3V
3 GND GND
4 Soft Power On 5V
5 GND GND
6 GND 5V
7 GND GND
8 -5V Power OK
9 +5V +5V (for Soft Logic)
10 +5V +12V
12
ROW1
Please refer to Chapter 3
