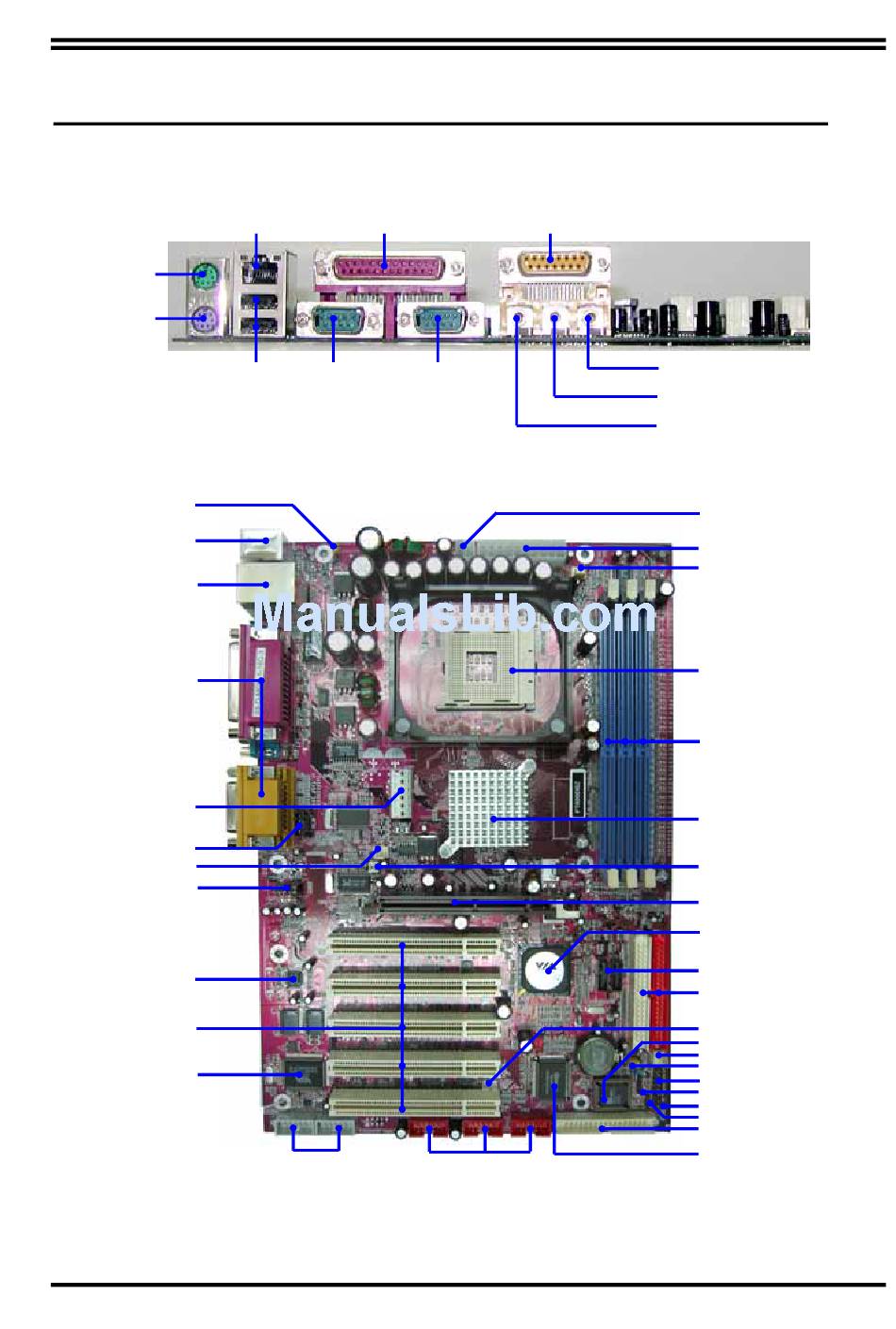

1-4 Layout Diagram & Jumper Setting
(for PT800DBP/
PS/2 Mouse
PS/2
Keyboard
K/B Power ON Jumper (JP1)
PS2 KB/Mouse Port
USB Port/
LAN Connector
PC99 Back Panel
ATX P9 Power Conn.
CD Audio
System FAN
Front Panel Audio
6-CH AC'97 Audio Codec
PCI Slot
VIA VT6307 Chip
PT800DBZ)
LAN
PRINT
USB COM1
1394 Port
(1394A, 1394B)
(for PT800DBZ)
GAME/MIDI PORT
COM2
USB Port
(USB1, USB2, USB3)
4
MIC
LINE-IN
LINE-OUT
ATX 12V Power Conn.
ATX Power Connector
CPU FAN
CPU Socket
DDR SDRAM DIMM x3
VIA PT800 Chip
(JP2, JP4)
CPU F.S.B. Frequency Selector
AGP Slot
VIA VT8237 Chip
(SATA1, SATA2)
Serial-ATA Connector
ATA 133 IDE Connector
Wake On LAN
2MBit Flash ROM BIOS
System FAN1
Clear CMOS (JBAT)
Front Panel Connector
Speaker Conn.
IR Connector
Power LED Connector
Floppy Connector
Winbond W83697HF Chip
