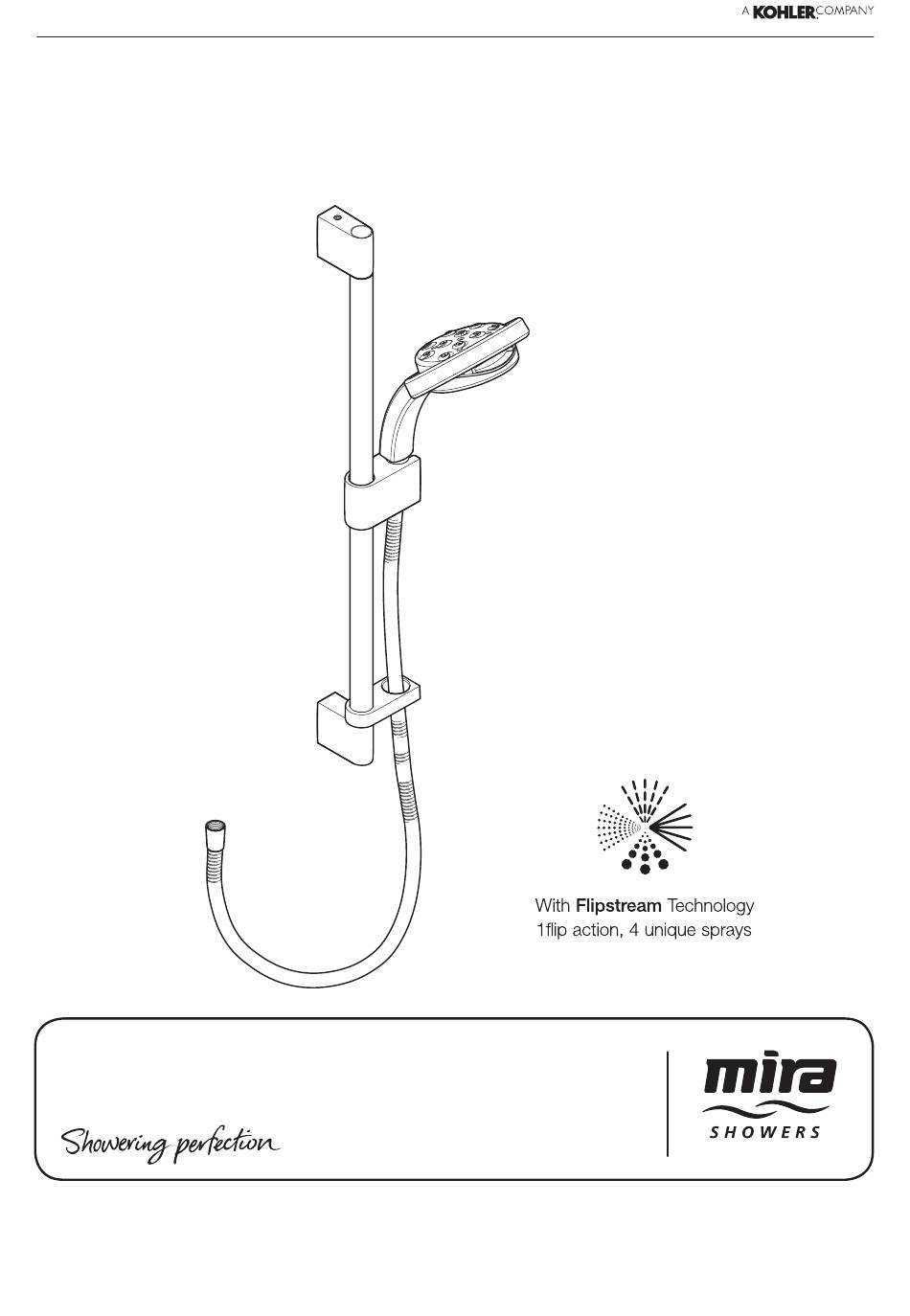

Mira Classic Shower Fittings
Installation and User Guide
Please leave these instructions with the user
If you experience any difficulty with the installation or operation of your new shower, then
please refer to the Fault Diagnosis section, before contacting Kohler Mira Ltd.
.
Our telephone and fax numbers can be found in the back of this guide
1106062-W2-D
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mira Classic and is the answer not in the manual?

Questions and answers

Summary of Contents for Kohler Mira Classic

  • Page 1 If you experience any difficulty with the installation or operation of your new shower, then please refer to the Fault Diagnosis section, before contacting Kohler Mira Ltd. Our telephone and fax numbers can be found in the back of this guide...
  • Page 2 GUARANTEE Guarantee For domestic installations, Mira Showers guarantee the Mira Classic Shower Fittings against any defect in materials or workmanship for a period of one year from the date of purchase For non-domestic installations, Mira Showers guarantee the Mira Classic Shower Fittings against any defect in materials or workmanship for a period of one year from the date of purchase.
  • Page 3 PACK CONTENTS Tick the appropriate boxes to familiarise yourself with the part names and to confirm that the parts are included. 2 x Slide Bar Securing Screws 2 x Wall Brackets 2 x End Plugs 2 x Slide Bar Supports 1 x Showerhead 1 x Slide Bar 2 x Hose Seals...
  • Page 4 DIMENSIONS 150 mm 82 mm 600 mm 82 mm SPECIFICATIONS Pressures Minimum maintained pressure: 0.1 bar (10 kPa). Maximum maintained pressure: 5.0 bar (500 kPa). Warning! Exceeding the stated maximum maintained pressure could result in excessive spray forces and possible damage to the product. 1106062-W2-D...
  • Page 5 INSTALLATION REQUIREMENTS Installation must be carried out in accordance with these instructions, and must be conducted by designated, qualified and competent personnel. The hose retaining ring supplied must be used to stop the showerhead from dropping below the spill-over level of the bath or shower tray, ensure there is a minimum of 25 mm between the showerhead and bath/tray spill-over level.
  • Page 6 Decide on a suitable position for the slide bar avoiding buried cables and pipes. Slide Bar Securing Screw Using the supplied template as a must be positioned at the top guide, mark the position of the fixing holes for the wall brackets. Note! Use a spirit level to make sure that the fixing holes are vertical.
  • Page 7 Slide Bar Securing Screw Slide Bar Support Showerhead Wall Bracket 600 mm Slide Bar Clamp Bracket Hose Retaining Ring Wall Plug Fixing Screw 1106062-W2-D...
  • Page 8 OPERATION Changing the Spray Setting The Classic Showerhead has four different spray actions:- Rain, Cloud, Storm and Burst. The showerhead features a rotating head to enable differing spray patterns to be achieved, turn the showerhead in the direction shown to activate the different spray patterns.
  • Page 9 Height Adjustment. The height of the showerhead is easily adjusted by gently moving the clamp bracket either up or down the slide bar until the required height is achieved. MAINTENANCE Cleaning Many household cleaners contain abrasives and chemical substances, and should not be used for cleaning plated or plastic fittings.
  • Page 10 FAULT DIAGNOSIS The trouble shooting information tabled below gives details on what you can do as a user, should you encounter difficulties with the shower fittings whilst operating the shower. Before replacing any parts make sure that the underlying cause of the malfunction has been resolved.
  • Page 11 SPARE PARTS 575.09 Hexagonal Wrench - 3 mm 632.73 Hose Seal (x2) 1603.104 Shower Hose 1.25m chrome 1688.185 Classic Clamp Bracket - chrome 1688.187 Classic Slide Bar Support - chrome 1688.188 Classic Hose Retaining Ring - chrome 1688.190 Classic fitting component pack 'A' (including wall plugs and screws) 1688.193 Classic Slide Bar...
  • Page 12 E-mail: Accidental or wilful damage. CustomerServiceEire@mirashowers.com Products purchased ex-showroom display. Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifications without notice. 14648 1106062-W2-D 1106064-W2-D © Kohler Mira Limited, November 2016...
