AFi HB-NWP Assembly Instructions Manual
Bookcase headboard (twin, full), bed frame full
Hide thumbs
Also See for HB-NWP:
- Assembly instructions manual (6 pages) ,
- Assembly instructions manual (10 pages) ,
- Assembly instructions manual (9 pages)
Advertisement
Quick Links
Before assembling your newport captain's bookcase headboard, please
read through these instructions carefully and familiariz yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Phillips screwdriver
Customer supplied
BOOKCASE HEADBOARD WITH METAL FRAME
HEADBOARD HARDWARE
A
JCB M6 X 1 2/8"(30mm) -
Spare -
B
JCB M6 X 1 1/2"(35mm) - 6 pcs
Spare - 1 pc
C
JCB M6 X 2"(50mm) - 4 pcs
Spare - 1 pc
D
Wooden dowel 10 X 30mm - 4 pcs
E
Wooden dowel 8 X 30mm - 12 pcs
BOOKCASE HEADBOARD
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
4
pcs
F
Metal L-Bracket - 3 pcs
1
pc
G
Wood screw 1/2" - 6 pcs
H
Wood screw 1 1/2" - 4 pcs
I
W
ooden pull -
Spare - 1 pc
J
W
ooden pull screw -
Spare - 1 pc
( TWIN, FULL )
e
Spare - 1 pc
Spare - 1 pc
2
pcs
2
pcs
CODE
ITEM
HB-NWP R-28582X
PO :
HARDWARE FOR METAL BED FRAME
K
JCB M6 X 1"( 5mm) - 6 pcs
2
Spare -
For post - 2 pcs
For metal bed frame - 4 pcs
L
Split washer - 4 pcs
Spare - 1 pc
M
Flat washer - 4 pcs
Spare - 1 pc
N
Allen wrench - 1 pc
Spare - 1 pc
READY
TO
ASSEMBLE
Adult assembly
ITEM
R-28583X
1
pc
Page 1 of 5
Advertisement
Related Manuals for AFi HB-NWP
Summary of Contents for AFi HB-NWP

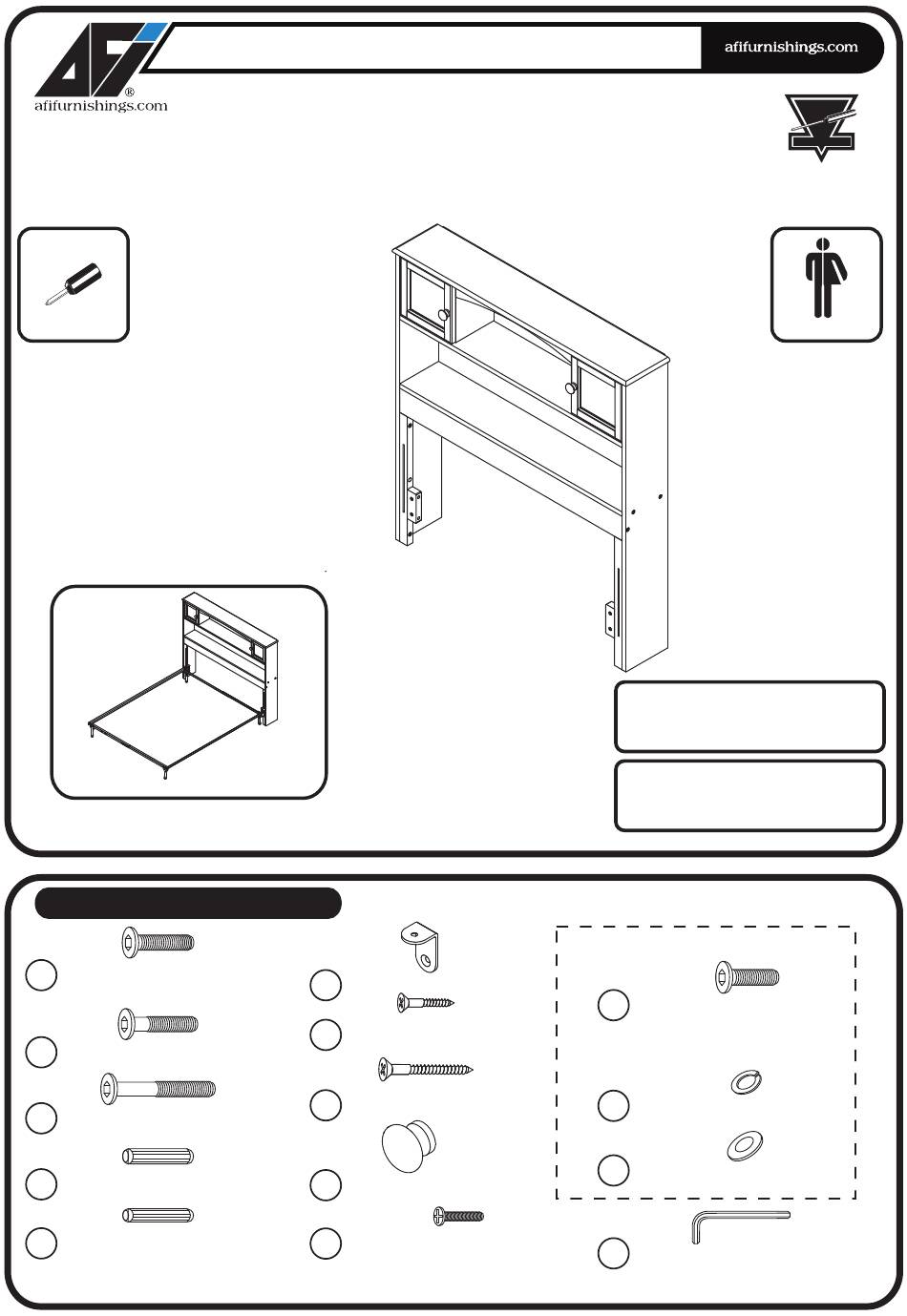

- Page 1 1-800-955-3726 Phillips screwdriver Customer supplied Adult assembly CODE ITEM ITEM HB-NWP R-28582X R-28583X BOOKCASE HEADBOARD WITH METAL FRAME PO : HEADBOARD HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. HARDWARE FOR METAL BED FRAME JCB M6 X 1 2/8”(30mm) -...
- Page 2 PARTS LIST HARDWARE 1 BOX TOP STORAGE 1 SET LEFT SIDE PANEL 1 PC RIGHT SIDE PANEL 1 PC LOWER SHELF 1 PC PILLOW STOP 1 PC BACK PANEL 1 PC LEFT POST 1 PC RIGHT POST 1 PC SPACER BLOCK 2 PCS STEP 1 Insert wooden dowels (D) and (E) into locator holes on (05)(06)(08) and (09) as shown below.
- Page 3 Attach the left, right post (08) and (09) to the left, right side panel (03) and (04) as shown below. Using STEP 2 JCB (C) and (K). Tighten with Allen wrench (N). Adult assembly JCB M6 X 2” JCB M6 X 1” Allen wrench Attach the lower shelf (05), pillow stop (06) &...
- Page 4 Lay the top storage (02) on the floor upside down, taking care to lay it on some cardboard to prevent STEP 4 scratching. Stand the side panel assembly upside down and using JCB (A), tighten with Allen wrench (N). Adult assembly JCB M6 X 1 2/8”...
- Page 5 BED FRAME FULL READY ASSEMBLY INSTRUCTIONS Before assembling your bed frame, please read through these ASSEMBLE instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 PARTS LIST HARDWARE FOOT RAIL...
- Page 6 FULL Step 3 Attach center leg (6) to support board (5) as shown below. Using allen screw (E) tighten with Allen wrench (G). Repeat the others. Allen screw Attach support board (5) to the bed as shown below using wood screws 1 1/4" (F). Step 4 Tighten with Phillips head screw driver.
