AFi HB-NWP Assembly Instructions Manual
Bookcase headboard, 1fb panel bed frame, bed drawer
Hide thumbs
Also See for HB-NWP:
- Assembly instructions manual (6 pages) ,
- Assembly instructions manual (9 pages)
Advertisement
Quick Links
Before assembling your newport captain's bookcase headboard, please
read through these instructions carefully and familiariz yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Phillips screwdriver
Customer supplied
BOOKCASE HEADBOARD WITH METAL FRAME
HEADBOARD HARDWARE
A
JCB M6 X 1 2/8"(30mm) -
Spare -
B
JCB M6 X 1 1/2"(35mm) - 6 pcs
Spare - 1 pc
C
JCB M6 X 2"(50mm) - 4 pcs
Spare - 1 pc
D
Wooden dowel 10 X 30mm - 4 pcs
E
Wooden dowel 8 X 30mm - 12 pcs
BOOKCASE HEADBOARD
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
4
pcs
F
Metal L-Bracket - 3 pcs
1
pc
G
Wood screw 1/2" - 6 pcs
H
Wood screw 1 1/2" - 4 pcs
I
W
ooden pull -
Spare - 1 pc
J
W
ooden pull screw -
Spare - 1 pc
( TWIN, FULL )
e
Spare - 1 pc
Spare - 1 pc
2
pcs
2
pcs
CODE
ITEM
HB-NWP R-28582X
PO :
HARDWARE FOR METAL BED FRAME
K
JCB M6 X 1"( 5mm) - 6 pcs
2
Spare -
For post - 2 pcs
For metal bed frame - 4 pcs
L
Split washer - 4 pcs
Spare - 1 pc
M
Flat washer - 4 pcs
Spare - 1 pc
N
Allen wrench - 1 pc
Spare - 1 pc
READY
TO
ASSEMBLE
Adult assembly
ITEM
R-28583X
1
pc
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFi HB-NWP
Summary of Contents for AFi HB-NWP

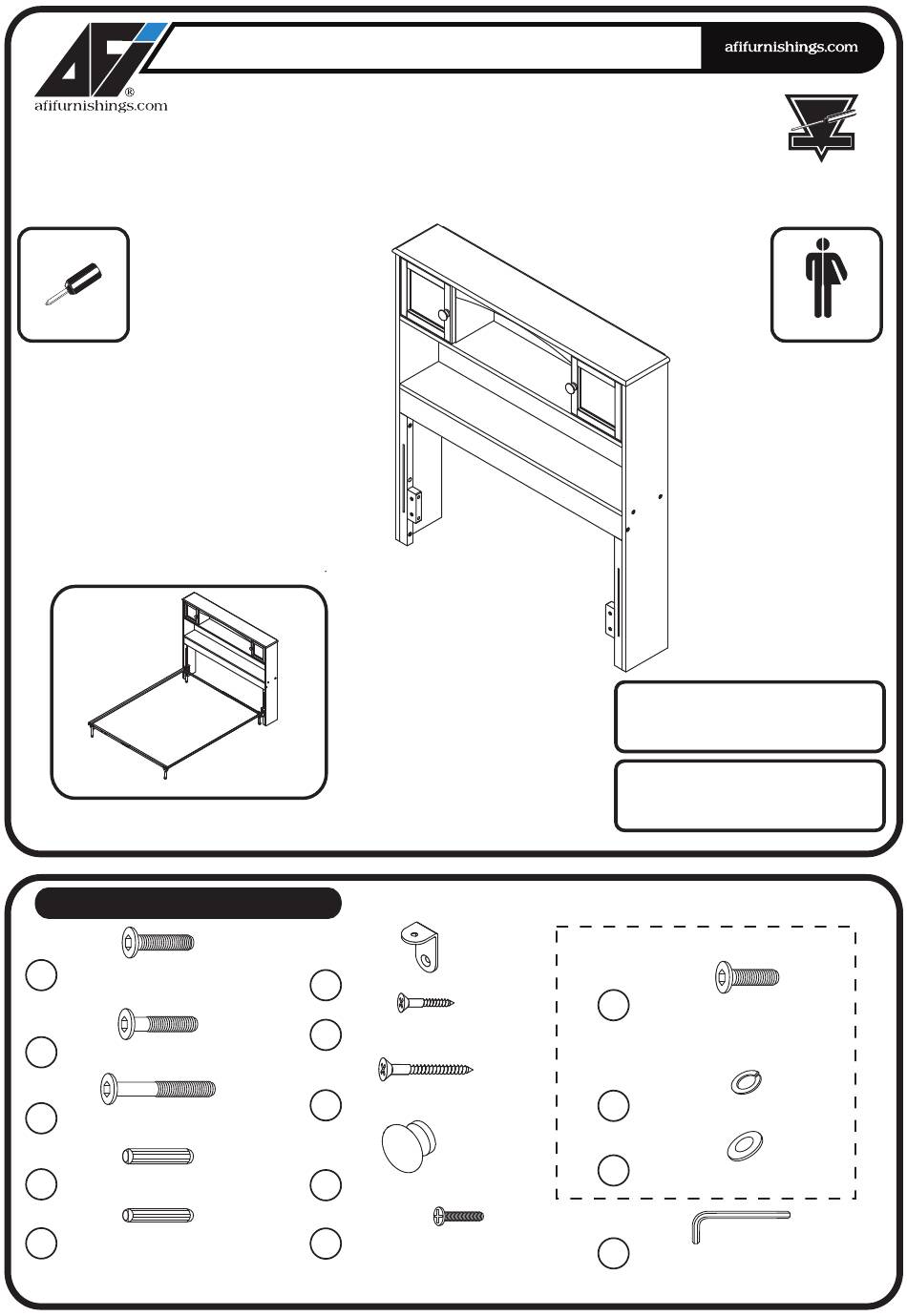

- Page 1 1-800-955-3726 Phillips screwdriver Customer supplied Adult assembly CODE ITEM ITEM HB-NWP R-28582X R-28583X BOOKCASE HEADBOARD WITH METAL FRAME PO : HEADBOARD HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. HARDWARE FOR METAL BED FRAME JCB M6 X 1 2/8”(30mm) -...
-
Page 2: Parts List
PARTS LIST HARDWARE 1 BOX TOP STORAGE 1 SET LEFT SIDE PANEL 1 PC RIGHT SIDE PANEL 1 PC LOWER SHELF 1 PC PILLOW STOP 1 PC BACK PANEL 1 PC LEFT POST 1 PC RIGHT POST 1 PC SPACER BLOCK 2 PCS STEP 1 Insert wooden dowels (D) and (E) into locator holes on (05)(06)(08) and (09) as shown below. - Page 3 Attach the left, right post (08) and (09) to the left, right side panel (03) and (04) as shown below. Using STEP 2 JCB (C) and (K). Tighten with Allen wrench (N). Adult assembly JCB M6 X 2” JCB M6 X 1” Allen wrench Attach the lower shelf (05), pillow stop (06) &...
- Page 4 Lay the top storage (02) on the floor upside down, taking care to lay it on some cardboard to prevent STEP 4 scratching. Stand the side panel assembly upside down and using JCB (A), tighten with Allen wrench (N). Adult assembly JCB M6 X 1 2/8”...
- Page 5 Attach headboard assemby to the metal bed frame as shown below. (purchased STEP 7 separately) Using JCB (K) split and flat washer (L) and (M) tighten with Allen wrench (N). Adult assembly JCB M6 X 1” Split washer Flat washer Allen wrench Congratulations! Your Bed is now ready for use.
- Page 6 1FB PANEL BED FRAME FULL READY ASSEMBLY INSTRUCTIONS Before assembling your bed frame, please read through these ASSEMBLE instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 PARTS LIST HARDWARE LEFT LEG...
- Page 7 FULL Attach left & right side rails (5)(6) to the footboard as shown below. Using JCB (A) and barrel Step 4 nut (B) tighten with Allen wrench (G). Step 5 Attach the side rails to the headboard as shown using the bed hooks and middle set of pins on headboard.
- Page 8 FULL Attach slat kit (7) onto the bed. Using wood screw (C) tighten with Phillips head screwdriver. Step 7 (Customer supplied) Adult assembly Step 8 Wood screw 1 1/4" Lastly, cover holes with wood button (D). Wood button Congratulations! Your bed is now ready for use. We recommend that you periodically recheck that all screws are tight to ensure lasting safety.
- Page 9 BED DRAWER ASSEMBLY INSTRUCTIONS READY Before assembling your bed drawer, please read through these instructions carefully, familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Allen wrench Adult assembly NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
- Page 10 Guide the drawer bottom (05) in carefully so Step 2 Step 3 Attach drawer back (04) to bed drawer that it won’t jump out of its grooves. Be sure it assembly as shown. Use JCB M6 X 30mm (A). Tighten with Allen wrench (B). fits fully into its groove at the bottom (in the drawer face) before fitting the drawer back.
