DTP3 CrossPoint Series Matrix Switcher • Contents...
Page 12

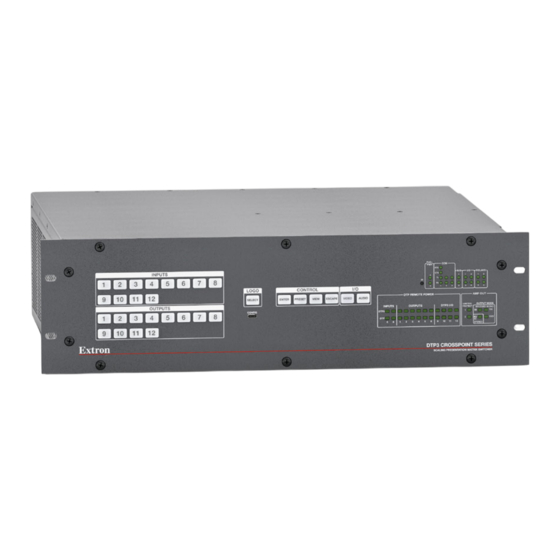

DTP3 CrossPoint IPCP A models — Includes a built‑in Extron IPCP Pro control processor and a Class D power convertible amplifier. DTP3 CrossPoint IPCP A SL models (662/642/622 models only) — Includes a built‑in Extron IPCP Pro control processor, a Class D power convertible amplifier, and a ShareLink Pro module. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 13
VIDEO OUT AUDIO OUT AUDIO OUT DIGITAL HDMI Ethernet SATA PHONE LINE Digital Matrix Switcher XTP SR HD 4K FLAT PANEL XTP Scaling Receiver Figure 1. Typical DTP3 CrossPoint 884 IPCP A Application DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 14
RS-232 Amphenol Extron Tx Rx G AUDIO OUT AV LAN OUTPUT DTP3 IN DTP3 R 201 Ethernet POWER STANDBY Receiver Laptop IP Camera Figure 2. Typical DTP3 CrossPoint 662 IPCP A SL Application DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 15
The USB audio port is used for connectivity to computer based soft codecs and program playback sources. The DTP3 CrossPoint Series also includes a built‑in digital signal processor (DSP Pro) that provides a wide variety of microphone pre‑amplifier controls, mixers, filters, dynamics processors, and feedback suppressors (see DSP Configurator Pro on page 81).
Page 16
When a preset consisting of full configurations is recalled, it completely overwrites the current configuration. • When a preset consisting of one or more partial configurations is recalled, it overwrites only a portion of the current configuration, leaving other ties and settings unchanged. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 17
• Remote powering of DTP3 and DTP transmitters and receivers — For simplified installation, the DTP3 CrossPoint can provide power to select DTP3‑enabled and first‑generation DTP‑enabled endpoints over the twisted pair connection. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 18
Ethernet network. • DHCP server for AV LAN — Automatically distributes IP addresses and network configuration parameters for AV devices connected to the local AV LAN, which streamlines system setup and management. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 19
Aspect ratio control — The aspect ratio of the video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 20
Gating threshold, signal level reduction, and timing parameters are user‑adjustable per channel, allowing for fine‑tuning to avoid the “chopped” sound characteristic of a traditional automixer when a microphone is gated off. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 21
The buttons illuminate red, green, or amber depending on function, for ease of use in low light environments. • View I/O mode — Users can easily view which inputs and outputs are actively connected. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 22
Updated Version 2.0 software makes it easier to add, remove, and change shared content — For users sharing content via ShareLink Pro software, the Version 2.0 user interface makes it easier to share content quickly, remove individual shared items, and maximize an item size for greater visibility. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 23
• Collaboration mode allows any attendee to display content and control the presentation — Enables content display from any connected device to enhance interactivity in brainstorming sessions, team meetings, and other collaborative environments. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 24
• Includes user‑friendly software for screen mirroring, sharing, and advanced control — Provides both an executable that does not require administrator access rights and a version that can be deployed by IT administrators. DTP3 CrossPoint Series Matrix Switcher • Introduction...
Page 25
Les décharges électrostatiques (ESD) peuvent endommager l’équipement, même si vous ne pouvez pas le sentir, le voir ou l’entendre. • Remove system power before making all connections. • Débranchez l’alimentation du système avant de faire n’importe quelle connexion. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 26
Les décharges électrostatiques (ESD) peuvent endommager l’équipement, même si vous ne pouvez pas le sentir, le voir ou l’entendre. • Remove system power before making all connections. • Débranchez l’alimentation du système avant de faire n’importe quelle connexion. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 27
HDMI outputs — Connect HDMI cables between these ports and HDMI video displays (see Secure HDMI Connectors to use the LockIt HDMI Cable Lacing Bracket to secure the connectors to the DTP3 CrossPoint). DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 28
When a line level source is connected, be certain the +48 V phantom power is off (cleared). • Lorsqu’une source de niveau ligne est connectée, soyez certain que l’alimentation fantôme +48 V est débranchée (enlevée). DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 29
Ensure the rated input voltage of the speakers matches the selected output voltage of the audio amplifier. • Assurez‑vous que la tension nominale d’entrée des enceintes correspond à la tension de sortie sélectionnée de l’amplificateur audio. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 30
Green Link LED — Lights steadily to indicate that the switcher is properly connected to an Ethernet LAN. NOTE: If it has not been changed, the default LAN port IP address is 192.168.253.250. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 31
USB 5Gbps port — Use a USB Type A cable to connect 3.0 speed devices Connections such as cameras to this USB 3.0 SuperSpeed port. See the ShareLink Pro 1100 User Guide at www.extron.com to configure and operate the ShareLink Pro module. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 32
AV LAN 1 192.168.254.248 AV LAN 2 IPCP AV LAN DTP3 AV LAN 3 IP Address CrosssPoint 192.168.254.250 IP Address 192.168.254.254 DTP3 CrosssPoint AV LAN Figure 14. AV LAN and LAN Ports Connections DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 33
100Base‑T (max. 155 Mbps) or 1000Base‑T Fast Ethernet require CAT 5e UTP or STP cable at minimum. For ports on an IPCP module, see the IPCP Pro Q xi and xi Series User Guide at www.extron.com to make all network connections and to configure and operate the control processor. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 34
Do not comb the cable for the first 65 feet (20 meters), where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook and loop fasteners. • Separate twisted pair cables from AC power cables. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 35
The DTP3 CrossPoint can be restored to full power mode via PCS or SIS command, pressing any front panel button, or after a power cycle. NOTE: The IPCP Pro 360MQ xi controller does not go into power save mode since it may be controlling things that are not AV related. DTP3 CrossPoint Series Matrix Switcher • Installation...
Page 36
Configuration port Escape button IPCP LEDs (IPCP A models only) Logo Select button Video button Enter button Audio button NOTE: The buttons blink or are fully lit when selected, depending on the operation. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 37
The name can be 16 characters (A to Z and 0 to 9) without spaces and no special characters. • Logos can be formatted as PNG, BMP, JPEG, and GIF. • Logos are created and saved using PCS (see the DTP3 CrossPoint Series PCS Help File). DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 38
• With the PRESET button and VIEW button, selects between front panel locks (mode 2 and mode 0). • With the VIEW button, selects between front panel locks (mode 2 and mode 1). DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 39
Lock mode 1 — All changes are locked from the front panel (except for setting Lock mode 2). Some functions can be viewed. • Lock mode 2 — Advanced features are locked and can be viewed only. Basic functions are unlocked. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 40
3. Press and release an OUTPUT button that indicates a connection, and that button turns off. The other OUTPUTS tied to that input remain lit. 4. Press and release the blinking ENTER button to save the new configuration. The INPUT, OUTPUTS, and ENTER buttons turn off. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 41
3. Select the preset — Press and release the input or output button for the desired preset. 4. Recall the preset — Press and release the ENTER button. The configuration stored in the selected memory location is now the current configuration and can be viewed in the View-only mode. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 42
The TLP Pro 725M then sends a control command through the receiver DTP port, to the receiver captive screw port, to the display to take some action. • The response from the display is sent back to the control system. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 43
TLP Pro 725M 7" Wall Mount LINK OVER POWER HDMI TouchLink Pro DTP3 --A MAX RS-232 Laptop Touchpanel AUDIO OUT OUTPUT DTP3 IN RS-232 HDMI Display Display Figure 19. Typical Ethernet to RS‑232 Insertion Configuration DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 44
• In the event of a complete system reset, the password converts to the default, which is extron. New passwords must be configured to secure the device. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 45
(full reset). 2. Release the Reset button and then immediately press and release the button again. Nothing happens Reset if the second momentary press does not occur within 1 second. DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 46
5. Check the cabling and make corrections as necessary. 6. Call the Extron Sales and Technical Support Hotline if necessary (see the contact information on page 109 for the phone number in your region of the world). DTP3 CrossPoint Series Matrix Switcher • Operation...
Page 47
RS‑232. The Ethernet cable can be terminated as a straight‑through cable or a crossover cable and must be properly terminated for the application (see RJ-45 Connectors on page 18). DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 48
5. The matrix switcher is password protected, so the appropriate administrator or user name and password must be entered. a. Enter admin or user name. b. Enter the password next to the Password prompt. DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 49
Each switcher response to an SIS command ends with a carriage return and a line feed (CR/LF = ), which signals the end of the response character string. A string is one or more characters. DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 50
E28 — Bad filename or file not found E33 — Bad file type or size for logo assignment failure NOTE: If the unit does not support or recognize the entered commands, no response is issued. DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 51
= HDCP status (for outputs) = No monitor connected, = Monitor connected, not encrypted = Monitor connected, HDCP encrypted X1& = Off and On = Off or disable = On or enable (default) DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 52
= None (audio input set to NONE, or set to LPCM‑2Ch or Multi‑Ch and no digital stream is present) = LPCM‑2CH (detected LPCM‑2Ch audio in any "digital" or AUTO mode) = LPCM‑3CH+ or Bitstream (detected LPCM‑3Ch+ or Bitstream audio in "digital" or AUTO audio mode) DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 53
X3&] ITYP Ityp E X3^ X3&] View input connector type ITYP KEY: = Input port 5 and 6 X3& = Input connector type 1 = DTP3 (default) 2 = HDMI DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 54
HdcpO00 * KEY: X@ = Output number to max number of outputs = HDCP status (outputs) = No monitor connected = Monitor connected, is not encrypted = Monitor connected, HDCP encrypted DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 55
1ECHO Echo1 Disable Echo Returns response only. 0 ECHO Echo0 X3%] View ECHO X3%] Verbose mode 2/3 Echo KEY: = Echo for SIS over SSH = Off = On (default) DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 56
8x12] = Maximum video matrix size to max video matrix size (Input x Output [Example: = Video signal status = No video signal at input = Video input signal detected DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 57
3a, 3b, 4a, 4b, 5a, 5b, 6a, 6b 7, 8, 9, 10, 11, and 12 (Inputs 7 through 12 are for the DTP3 CrossPoint 884 only). Direct global preset X2$ ] %... KEY: = Input number to max number of inputs = Output number to max number of outputs = Global preset DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 58
Resets the ShareLink Pro module via the S1*1RSTD RstdS1*1 reset DTP3 CrossPoint. NOTE: If the ShareLink Pro Module not installed in the product, the DTP3 CrossPoint responds with (Not Valid for Current Configuration). DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 59
2048 x 1080 2048 x 1200 2048 x 1536 2560 x 1080 2560 x 1440 2560 x 1600 3840 x 2160 4096 x 2160 * = Default output resolution (1080p) DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 60
= Digital input status = Logic low = Logic high = Digital I/O channel 1 to 4 DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 61
= Dante Redundancy mode = Switched/off (default) = Redundant/on X11^ = SIS command to be sent to remote dante‑controlled device. X11& = SIS command response from remote dante‑controlled device, tagged by the DSP. DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 62
* 0AU View phantom power status X1&] X1& KEY: = Status = Phantom power off = Phantom power on = Object ID Object ID (OID) Number Tables starting on page 58 DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 63
1 to 16 X01$ = Audio input (EXP) name 31 characters. Illegal characters: ~ , @ = ‘ [ ] { } < > ‘ “ ; : | \ and ? DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 64
= Meter value vs threshold = Equal to or below threshold = Above threshold = Object ID Object ID (OID) Number Tables 1024 = Automixer gate monitoring status = Disabled = Enabled DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 65
Gain value with a resolution to , multiply by 10. For mute values, use = Percentage , integer only. Returned values are rounded up or down to the nearest integer DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 66
Get USB call status UPHN X8( ] Verbose mode 2/3 UphnH KEY: = USB I/O number = USB 1 = USB 2 = USB 3 = Call status = Inactive = Active DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 67
Device names are not case sensitive X11^ = SIS command to be sent to remote dante‑controlled device. X11& = SIS command response from remote dante‑controlled device, tagged by the DSP. DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 68
I/O channel number. Signal Presence — Input number for signal presence monitoring. If is not specified, the input number defaults to the corresponding I/O channel number. DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 85
AV #11 Left 60108 60008 Left 60120 60020 Right 60109 60009 Right 60121 60021 AV #6 AV #12 Left 60110 60010 Left 60122 60022 Right 60111 60011 Right 60123 60023 DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 86
60156 60056 AT #29 60164 60064 AT #22 60157 60057 AT #30 60165 60065 AT #23 AT #31 60158 60058 60166 60066 AT #24 60159 60059 AT #32 60167 60067 DTP3 CrossPoint Series Matrix Switchers • SIS Configuration and Control...
Page 87
(see page 105) provides a location for viewing and, if connected via a serial port or if logged on via the LAN port as an administrator, editing settings unique to the Ethernet interface. DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 88
For software, type the name of the software into the Search Software field and select the desired software (see figure 21). Figure 21. PCS Software Search The selected software page opens below the search (see figure 22 on page 78). DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 89
For Firmware: a. To install via PCS, see Update Firmware in the Device List on page 84. b. To install via the internal web pages, see the Firmware Panel on page 107. DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 90
Select the IPCP Pro 360MQ xi device by clicking on it to highlight it in the list and click Connect. After entering the password, the DTP3 CrossPoint device becomes available below the IPCP. DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 91
In the event of a complete system reset, the passwords convert to the default, which is Passwords Panel extron (see on page 106 to change a password). • Select the Show Characters checkbox to display the password characters. DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 92
Or type the device model in the Search by model field to get a short list of only the desired device models. 3. Click the Configure button. A new offline device configuration tab opens. Figure 27. New Configuration File Dialog Box DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 93
PCS Software List Show Expanded Device Tabs Selecting Show Expanded Device tabs from the Software list displays the device IP address or connection method in the Device tab. Figure 30. Expanded Device Tab DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 94
3. To display details about third‑party software packages and associated licensing, click Licenses ( 4. Click the OK button ( ) to close the dialog box. Figure 33. About - Extron PCS Dialog Box DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 95
Restore to Multiple Devices — Upload a saved configuration file for a DTP3 CrossPoint Matrix to multiple devices on the network. NOTE: The connected devices must be connected via LAN. • DTP3 CrossPoint Matrix Help — Open the DTP3 CrossPoint Matrix Series PCS Help File. DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 96
NOTE: The connected devices must be connected via LAN. • About This Module — Open the About This Module dialog box, with the module part number and firmware version of the connected device. DTP3 CrossPoint Series Matrix Switchers • Product Configuration Software...
Page 97
DSP Configurator Pro Help File. When connected to a device, changes made in DSP Configurator Pro are directly applied to the device. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 98
The Device Manager panel opens with the selected device listed. 6. Double click the device in the Device Manager panel to open its configuration in the workspace (see figure 40 on page 88). DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 99
The Device Manager panel opens with the selected device listed. Double click the device in the Device Manager panel to open it in the workspace. Figure 42. Connect to the Device via TCP/IP DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 100
Click Start Project at the bottom of the Added Devices column. The Device Manager panel opens with the selected device listed. e. Double click the device in the Device Manager panel to open it in the workspace. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 101
4. Click Start Project at the bottom of the Added Devices column. The Device Manager panel opens with the selected device or devices listed. 5. Double click the desired device in the Device Manager panel to open it in the workspace. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 102
The File menu offers the standard Windows File menu options New, Open, Open Recent, Save, Save As, Export, Preferences, and Close. Edit The Edit menu offers the standard Windows Edit menu options Cut, Copy, and Paste. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 103
Meter Bridge — Opens a dialog box to view all meters on the device for convenient viewing of system status. NOTE: The Meter Bridge is only available when connected to a device. Help The Help menu offers options such as the Help file and About. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 104
This panel displays the current status of DSP Configurator Pro and shows when data is being pushed to or pulled from the device. When the software is ready to perform actions, the panel displays Ready. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 105
Amplifier Settings — Opens a dialog box to configure the the amplifier output mode. Add — Adds a new item. Add Folder — Adds a new folder. Delete — Deletes an existing item. DTP3 CrossPoint Series Matrix Switchers • DSP Configurator Pro...
Page 106
Configuring the DTP3 CrossPoint in Dante Controller Use a standard Ethernet cable to connect the DTP3 CrossPoint to a Dante network via the rear panel AT port and power the device. DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 107
2. From the control computer Start menu select: All Programs > Audinate > Dante Controller 3. The Dante Controller - Network View screen opens. All Dante devices on the network are discovered and listed. DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 108
6. Press <Enter> on the keyboard to confirm the name, or click another channel text box. 7. Repeat steps 4 through 6 to rename additional receiver or transmitter channels. 8. When finished renaming receivers and transmitters, close the Device View dialog box. DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 109
• To make a receiver‑to‑transmitter connection, click once on an intersection. • To remove a connection, click on the icon at the intersection. DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 110
5 seconds before disconnecting or powering down the devices. This ensures that the new information is properly saved to those devices. Device level configuration such as sample rates, latency, and clock settings are saved instantly. DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 111
4. If the issue is resolved, add connections and hardware one at a time, checking for proper operation after each addition, until the point of failure is discovered (typically a bad cable or invalid redundant configuration). DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 112
Click the Help icon in the upper‑right corner of the Network View screen. • Select Help, then Online Help from the list. • Press the <F1> key on the computer keyboard for online help or <Shift+F1> for offline help. DTP3 CrossPoint Series Matrix Switchers • Dante Controller...
Page 113
If connected to the USB port, the default is 203.0.113.22 (this IP address cannot be changed). 4. Press the <Enter> key on the keyboard. 5. The DTP3 CrossPoint is password protected. Enter user or admin in the Username field (see figure 48 page 103). DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 114
About the DTP3 CrossPoint). The internal web page does not automatically update. To see an updated page, click the Refresh button on the web browser. Figure 49. DTP3 CrossPoint Internal Web Page DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 115
To sync the date and time with your PC: Click SYNC TO PC to set the date and time according to your PC. Figure 51. Sync to NTP Servers Mode DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 116
3. When finished editing, click out of the field and SAVE to confirm your changes or CANCEL to close the window without making changes. Figure 52. Network Panel DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 117
X in the upper‑right corner. NOTE: Passwords can be changed but they cannot be removed entirely. The DTP3 must have passwords at all times. These fields cannot be blank. DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 118
The new firmware filename displays beside Version in the Firmware panel. Dante Panel The Dante panel (see figure ) displays the Device Name and Firmware Version of a Dante device connected to the DTP3 CrossPoint. Figure 55. Dante Panel DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 119
DTP3 CrossPoint, such as the firmware version, copyright, part number, licenses, patents, and web page version. Click on the View the End User License Agreement link to view the user licenses. Figure 56. About the DTP3 CrossPoint Panel DTP3 CrossPoint Series Matrix Switchers • Internal Web Pages...
Page 120
Reliable earthing (grounding) — Reliable earthing of rack‑mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as the use of power strips). DTP3 CrossPoint Series Matrix Switchers • Reference Information...
Page 121
1. Insert the unit into the rack, aligning the mounting bracket holes with those in the rack (see figure 57). Figure 57. Installing the Switcher in a Rack 2. Secure the switcher to the rack using the supplied bolts. DTP3 CrossPoint Series Matrix Switchers • Reference Information...
Page 122
• Some special characters (colon [:], underscore [_], and hyphen [‑]). • It has a file extension that is .key or .pem. • It can have optional encryption (via password or passphrase). DTP3 CrossPoint Series Matrix Switchers • Reference Information...
Page 123
Please contact us if you have any questions about the guidelines or if you have a question about cleaning the product. DTP3 CrossPoint Series Matrix Switchers • Reference Information...
Page 124
Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
