Equinox Systems Butterfly Quad MKII User Manual

Hide thumbs

Advertisement

Table of Contents

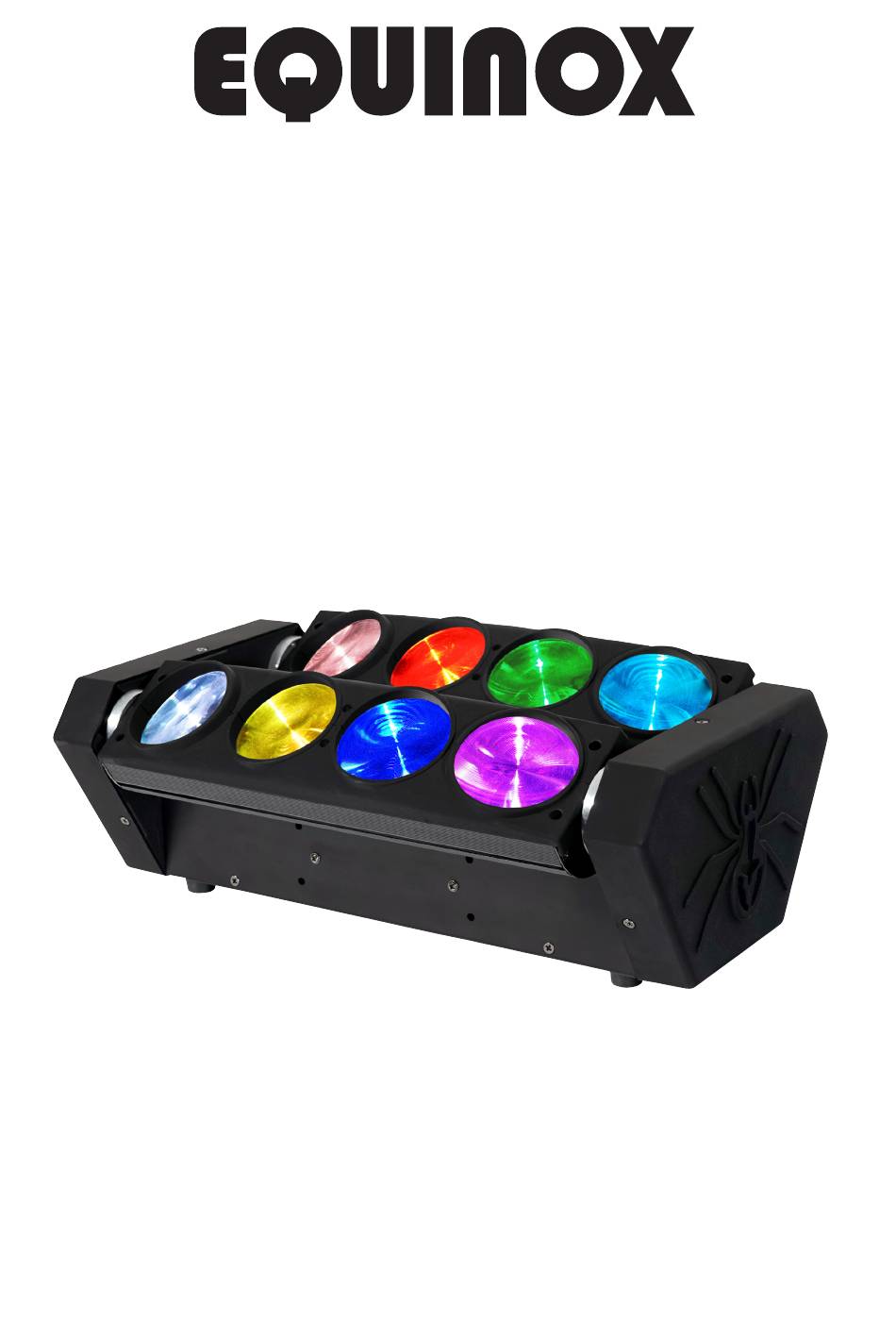

Butterfly Quad MKII
User Manual
Order code: EQLED440

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Butterfly Quad MKII and is the answer not in the manual?

Questions and answers

Related Manuals for Equinox Systems Butterfly Quad MKII

Summary of Contents for Equinox Systems Butterfly Quad MKII

  • Page 1 Butterfly Quad MKII User Manual Order code: EQLED440...

  • Page 2: Safety Advice

    Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 3 F3A 250V • Supplied with hanging bracket Dimensions 148 x 402 x 235mm • 4 button menu with LED display Weight 4.1kg • IEC power input/output Order code EQLED440 • 3-Pin XLR input/output 402mm 148mm www.prolight.co.uk Butterfly Quad MKII User Manual...

  • Page 4: Technical Specifications

    10 - Function buttons & 1 x power cable 03 - IEC power output 07 - DMX LED 11 - Sound LED 04 - 3-Pin XLR DMX output 08 - Master LED 12 - Slave LED www.prolight.co.uk Butterfly Quad MKII User Manual...

  • Page 5: Blackout Mode

    1 S P d s ' p Inversion t i L 1 Tilt 1 inversion y e s t i L 2 Tilt 2 inversion y e s r e S t Reset y e s www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 6 1/6/12 or 36 DMX channel modes. Press the “ENTER” button to confirm the setting. 1 channel mode: Please note: The unit must be in slave Channel Value Function mode to work on DMX 000-015 No function 016-128 Auto mode 129-255 Sound mode www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 7 Program 23 117-121 Program 24 122-126 Program 25 127-131 Program 26 132-136 Program 27 137-140 Program 28 141-143 Sound 1 144-147 Sound 2 148-151 Sound 3 152-155 Sound 4 156-159 Sound 5 160-163 Sound 6 www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 8 LED 2 Light Green 240-255 LED 4 White 160-175 LED 2 Light Blue 176-191 LED 2 Cool White 192-207 LED 2 Warm White 208-223 LED 2 Light Pink 224-239 LED 2 Sky Blue 240-255 LED 2 White www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 9 LED 8 Warm White 192-207 LED 6 Warm White 208-223 LED 8 Light Pink 208-223 LED 6 Light Pink 224-239 LED 8 Sky Blue 224-239 LED 6 Sky Blue 240-255 LED 8 White 240-255 LED 6 White www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 10 000-255 LED 7 White (0-100% dimming) CH33 000-255 LED 8 Red (0-100% dimming) CH34 000-255 LED 8 Green (0-100% dimming) CH35 000-255 LED 8 Blue (0-100% dimming) CH36 000-255 LED 8 White (0-100% dimming) www.prolight.co.uk Butterfly Quad MKII User Manual...

  • Page 11: Master/Slave Mode

    LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the LED display . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Butterfly Quad MKII User Manual...
  • Page 12 LED display. Now press the “ENTER” button and use the “UP” and “DOWN” to choose between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Butterfly Quad MKII User Manual...

  • Page 13: Dmx Setup

    Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Butterfly Quad MKII User Manual...

  • Page 14: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Butterfly Quad MKII User Manual...

  • Page 15: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Butterfly Quad MKII User Manual...
