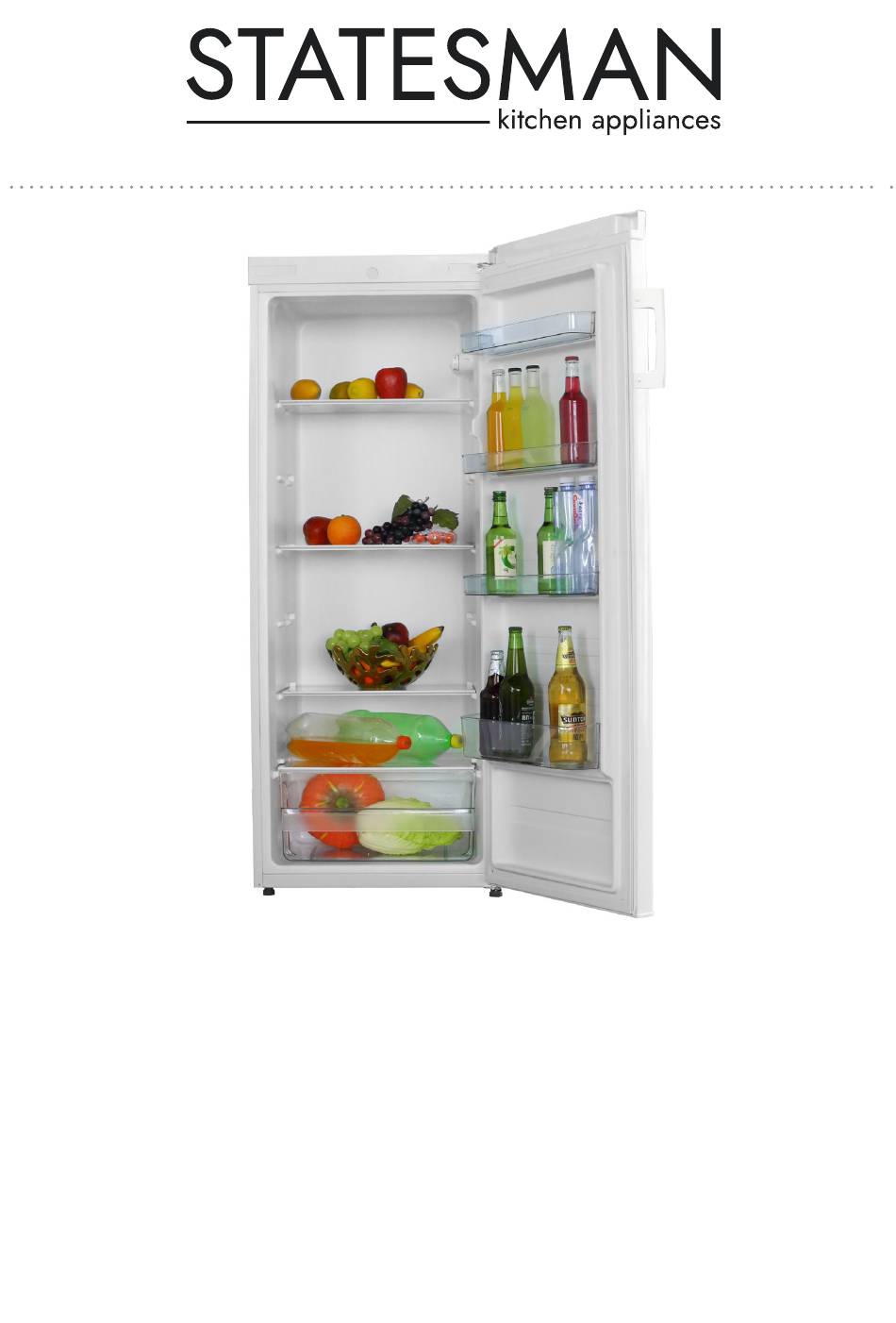

- Page 1 TL235LWE 55CM TALL LARDER FRIDGE WHITE Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
- Page 2 Important Safety Instructions ..........3-5 Product Specification..............6 Appliance Overview ..............7 Installation ................8-12 Operating Instructions ............13-14 Cleaning & Maintenance ........... 15-16 Trouble Shooting Guide ............17 Mains Plug Fuse Replacement ..........18 Disposal Information ............... 18 Statesman Warranty Information ........19-20...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Read and follow all the instructions even if you feel you are familiar with the product and find a place to keep this manual handy for future reference. WARNING: This product is intended for domestic use only; for food refrigeration storage only.
- Page 4 • To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions. • The appliance is not intended for use at altitudes exceeding 2000m. • Do not touch the light bulb if it has been on for a long period of time because it could be very hot.
- Page 5 in the compartments of the appliance; - clean regularly surfaces that can come in contact with food and accessible drainage systems; - clean water tanks if they have not been used for 48 hours; the water system connected to a water supply if water has not been drawn for 5 days; - store raw meat and in suitable containers in the refrigerator so that it is not in contact with or drip onto other food;...
- Page 6 PRODUCT SPECIFICATION Supplier Name Statesman Model Number TL235LWE Category Type Larder Fridge Energy Efficiency Class Annual Energy Consumption 102 (kWh/a) Total Gross Volume (Litre) 230L Total Net Volume (Litre) 230L Climate Class N/ST This appliance is intended to be used at an ambient temperature between “16” (lowest temperature)°C and “38”(highest temperature) °C...
- Page 7 APPLIANCE OVERVIEW 1. Temperature Control Dial 2. Adjustable Glass Shelves 3. Salad Drawer Cover 4. Salad Drawer 5. Adjustable Feet 6. Small Door Shelf 7. Large Door Shelf...
- Page 8 INSTALLATION Location and Air Circulation • The appliance must stand vertically on a flat, even surface. It is not recommended to stand the appliance on a carpeted surface. • The operating voltage for your fridge is 220-240V at 50Hz. The manufacturer does not accept responsibility for any damages that occur due to ungrounded usage.
- Page 9 Reversing the Door It is possible to change the opening direction of the door if required. Please follow the instructions below: 1. Remove the right top-hinge cover (see fig. 1). 2. Remove the screws from the top hinge using a Philips head screwdriver (see fig.
- Page 10 4. Remove the nut with sleeve. Take off the washer, then move the axes to the other side and secure (see fig. 4). fig. 4: 5. Unscrew the bottom hinge assembly with a Phillips head screwdriver and then remove the adjustable foot (see fig.5). Please Note: Do not lean the appliance back any further than 45 degrees.
- Page 11 7. Install the two screws on the right and remove the left top hinge cover (see fig. 7). 8. Install the left top hinge cover on the right and remove the two screws (see fig.8). 9. Install the top hinge. Set the top door right position, fix the top hinge and the cover (see fig.
- Page 12 10. Install the right top hinge cover on the right (see fig. 10). Door Space Requirements: The unit door must be able to open fully as shown. W x D > 927 x 959mm Levelling the Unit If the unit is not level, the door and magnetic seal alignments will not enclose properly.
- Page 13 OPERATING INSTRUCTIONS Using the Appliance • The thermostat dial is located on the right-side wall of the interior. The settings are as follows: Min: Warmest Temperature Med: Normal Operation (adequate for most situations) Max: Coolest Temperature • During high ambient temperatures e.g. on hot summer days.
- Page 14 Noises Inside the Appliance You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them. These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases.
- Page 15 CLEANING & MAINTENANCE • Use a vacuum cleaner to remove dust from underneath the appliance and from around the compressor which is situated at the back of the unit. Do this regularly to maintain adequate ventilation. Be careful not to damage the coolant system.
- Page 16 Moving the Appliance Hold the unit around the sides or base when moving it. Under no circumstances should the appliance be lifted by holding the edges of the top surface. Servicing The unit should be serviced by an authorized engineer and only genuine spare parts should be used.
- Page 17 TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 277 508: Problem Possible Cause Solution The appliance does not Mains plug is not plugged in Insert mains plug firmly. work.
- Page 18 MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place.
- Page 19 STATESMAN WARRANTY/GUARANTEE TERMS & CONDITIONS THANK YOU FOR CHOOSING STATESMAN As a valued customer we would like to offer you a FREE 2-year warranty to cover your product against any electrical or mechanical defects. This means that in the unlikely event you develop a fault or problem with your product we will happily repair or replace the item free of charge.
- Page 22 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508...
