Summary of Contents for STATESMAN L255W

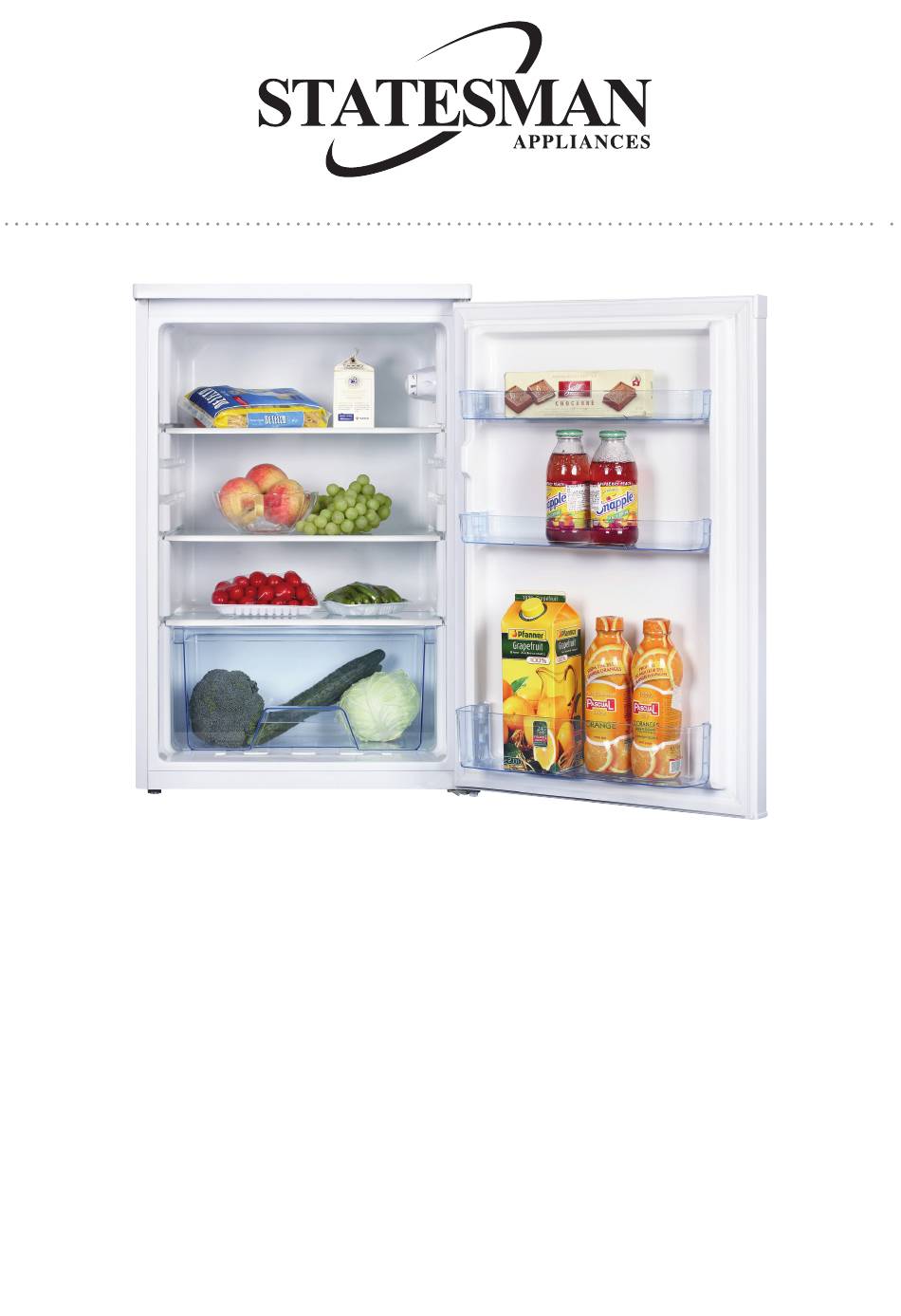

- Page 1 L255W 55CM UNDER COUNTER LARDER FRIDGE Instruction Manual Please read these instructions carefully before use and retain for future reference...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Important: This appliance is not intended for use by persons including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. - Page 3 Thank you for purchasing your new Statesman under counter larder fridge. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. UNPACKING Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included:...
-
Page 4: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering. Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. - Page 5 INSTALLATION Reversing the Door Swing Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner 1. Remove the 2 screws on the back. 2. Lift the top cover away from the fridge. 3. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching. 4. Swap the bottom bushing and bottom bushing cap of the upper door. The bottom bushing key must be in the correct position to allow it to be inserted correctly.
- Page 6 INSTALLATION 6. Remove the screw-type adjustable feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom. 7. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom. Loosely secure.
-
Page 7: Product Overview
INSTALLATION Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section. Before Using Your Unit Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled. PRODUCT OVERVIEW... -
Page 8: Operation
OPERATION Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the right side of the cabinet. Connect the mains cable to the mains socket. 2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C). 3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often. -
Page 9: Tips For Keeping Food In The Unit
TIPS FOR KEEPING FOOD IN THE UNIT • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. • Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool. • To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped. • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit. • To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out. -
Page 10: Maintenance
MAINTENANCE Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. Hold and twist to remove the light bulb cover. 3. Remove the old bulb by unscrewing in an anti-clockwise direction. 4. Replace with a new bulb (220~240V, max. 15W). Please make sure that it is secure in the bulb cover. 5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on. Care When Handling / Moving the Unit Hold the unit around its sides or base when moving it. - Page 11 SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on; 0844 848 5861 Please have the following details ready; • Model Name/ Model Number • Serial Number • Date of Purchase • Where Purchased • Customer Name, address and Postcode...
