Summary of Contents for STATESMAN FF2310APS

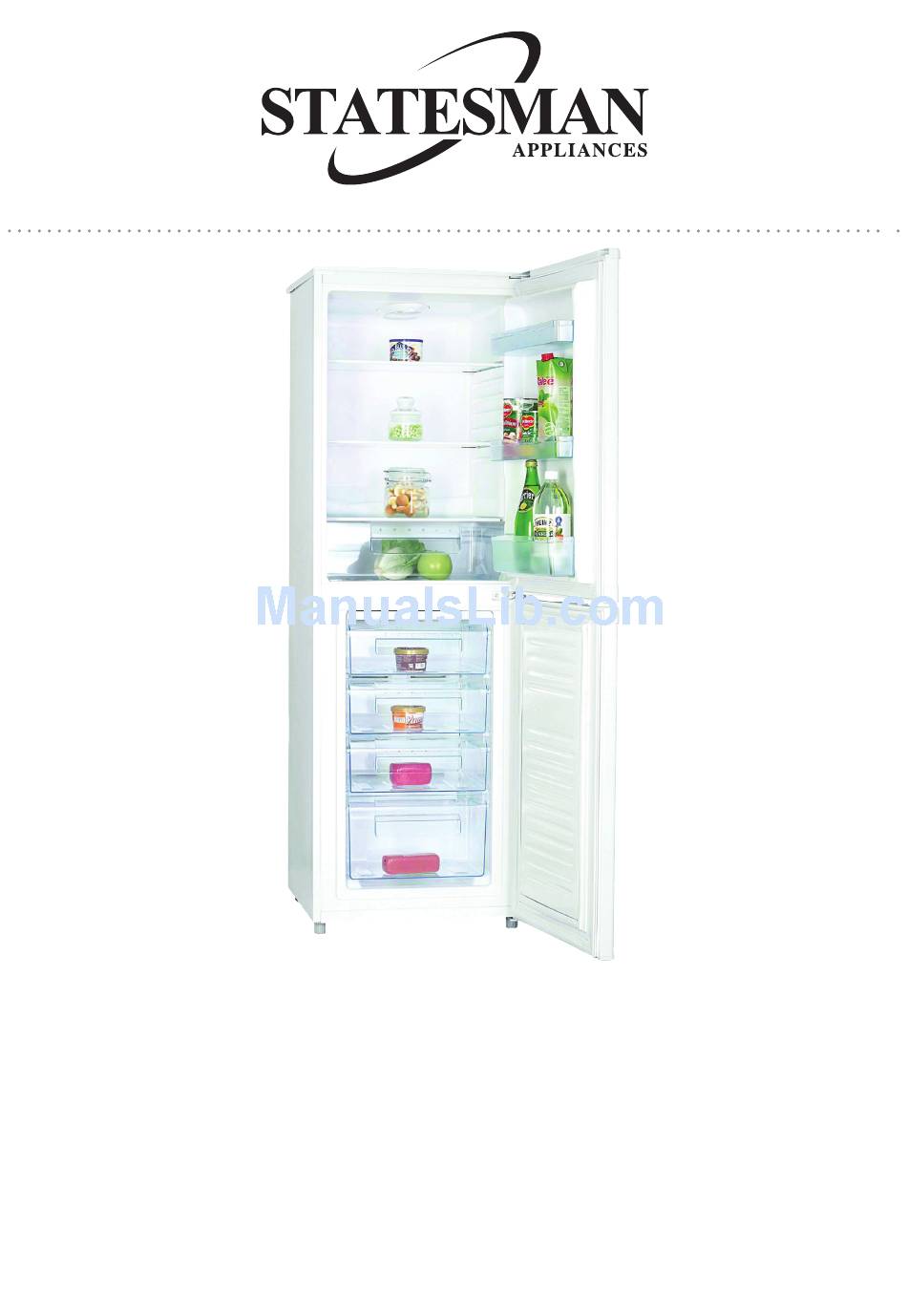

- Page 1 For Models FF2310APS, FF2310APW, FF2310APB 55cm FREESTANDING FRIDGE FREEZER Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3 Specification ..............4 Appliance Overview ............5 Installation ..............6-7 Operating Instructions ..........8-9 Cleaning and Maintenance ........9-10 Fuse Replacement ............10 Trouble Shooting Guide ......... 10-11 Disposal Information ...........11... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for domestic use only, for refrigerated and frozen food. When using electrical appliances, basic safety precautions should always be followed: • Do not operate the appliance with a damaged cord or plug, after it malfunctions or has been dropped or damaged in any way. All electrical repairs must be carried out by a qualified... -
Page 4: Specification
SPECIFICATION Supplier Name / Trade Mark Statesman Model Number FF2310AP Category Type Refrigerator with Freezer Energy Efficiency Class EU Eco-Label Award Annual Energy Consumption 245kWh/year Freezing Capacity 3kg/24hr Fridge Storage Volume (Litre) and Applicable Star Rating Compartment 165L Freezer Storage Volume (Litre) Applicable Star Rating Compartment 4 Star Refrigeration System (Frost Free, Static, Totally No Frost) Frost Free Temperature Rise Time (-18°C to -9°C) 10.8 hours Climate Class This appliance is intended to be used at an ambient temperature between 16°C and 38°C... -
Page 5: Appliance Overview
APPLIANCE OVERVIEW 1. Refrigerator Lamp 6. Levelling Feet 2. Glass Shelves 7. Thermostat 3. Salad Crisper Cover 8. Door Shelves 4. Salad Crisper 9. Bottle Shelf 5. Freezer Drawers... -
Page 6: Installation
INSTALLATION Location and Air Circulation • The appliance must stand vertically on a flat, even surface, to level the appliance use the levelling feet by turning them until the appliance is as level as possible. • This appliance has been designed to operate in ambient temperatures between 16°C and 38°C • It is not recommended to place this appliance in a room where the temperature is likely to drop below 16°C for prolonged periods, as the internal appliance temperature will not be maintained. • The appliance should be at least 50cm away from sources of heat e.g. radiators, direct sunlight, gas ovens, stoves and 5cm away from electric cookers as extreme temperatures will affect the performance of your appliance. - Page 7 4. Remove the pin from the top hinge with a screwdriver and turn over the hinge bracket and then refit the pin to the hinge bracket (Fig 3). 5. Remove the 2 screws from the middle hinge and remove hinge, the lower door can now be removed and stored safely (Fig 4). Fig 2. Fig 3. 6. Remove and swap the blanking pins from the opposite side to the middle hinge screw holes (Fig 5).
-
Page 8: Operating Instructions
Before using your Appliance • Allow the appliance at least 24 hours before storing any food inside to allow for sufficient cooling temperature to be reached. • The interior of the appliance needs to be cleaned prior to use by wiping with a soft cloth and using warm water. Wipe the appliance completely dry before replacing any shelves or drawers. • Allow 4 hours for the appliance to stand upright before turning on to allow coolant gases time to settle after the appliance is in place. Using your Appliance • Once dry, plug the appliance into the mains socket. • Avoid opening the door for long periods or unnecessarily. -
Page 9: Cleaning And Maintenance
7. Clean your appliance as described below, plug in and switch back on, Setting 4 on your temperature control. Allow at least 4 hours for the temperature to return to the adequate temperature before putting the food back into the appliance. Important: Do not use any mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer. CLEANING AND MAINTENANCE Switch off the electrical supply and remove the plug from the mains socket before cleaning. -
Page 10: Fuse Replacement
Operating Sound The cooling gas which circulates in the cooling circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that: • The appliance is level. • Nothing is touching the rear. • The contents in the appliance are vibrating. Changing the Bulb The internal Light is LED; it is advised to contact a qualified technician to replace the bulb. FUSE REPLACEMENT (Moulded Plug Top – Class I) Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. -
Page 11: Disposal Information
Troubleshooting (continied) Fault Possible cause Solution Appliance cools Temperature is set too cold. Turn the temperature regulation knob too much to a warmer setting temporarily. Unusual noises Appliance is not level. Re-adjust the feet. The appliance is touching the Move the appliance slightly. wall or other objects. A component, e.g. - Page 12 38 Bluestem Road, Ransomes Europark Ipswich, IP3 9RR 0844 848 5861...
