TL335LWE
UPRIGHT LARDER FRIDGE
Instruction Manual
Serial number:
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL335LWE and is the answer not in the manual?

Questions and answers

Related Manuals for STATESMAN TL335LWE

Summary of Contents for STATESMAN TL335LWE

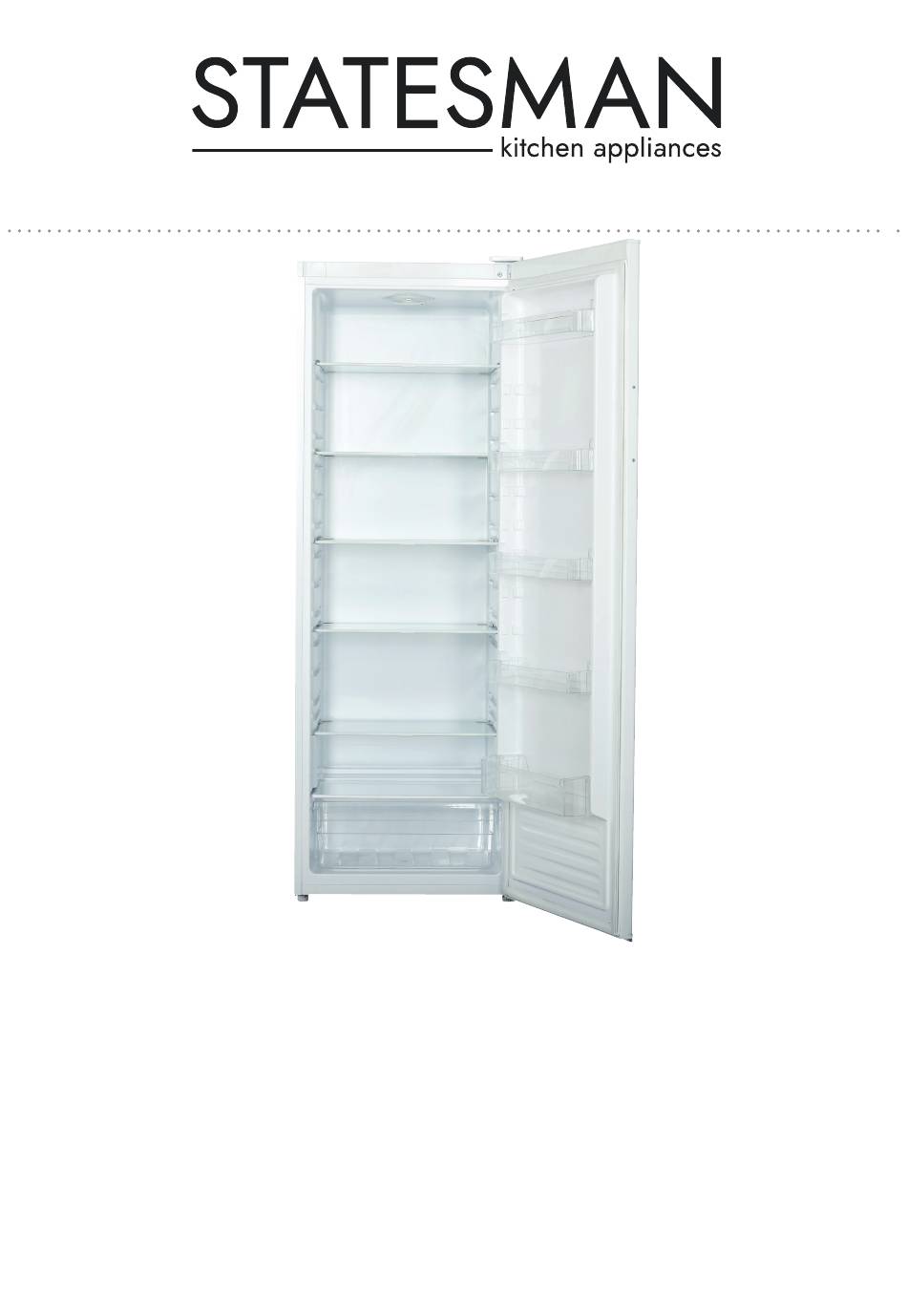

  • Page 1 TL335LWE UPRIGHT LARDER FRIDGE Instruction Manual Serial number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ........3 Specification ..............4 Appliance Overview ............5 Installation ..............5-7 Operating Instructions ..........7-8 Cleaning and Maintenance ........9-10 Fuse Replacement ............10 Disposal Information ...........10 Trouble Shooting Guide ..........11...

  • Page 3: Important Safety Instructions

    SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product and find a place to keep this manual handy for future reference. Important: This product is intended for domestic use only, for food refrigeration storage only. When using electrical appliances, basic safety precautions should always be followed: • Do not operate the appliance with a damaged cord or plug, after it malfunctions or has been dropped or damaged in any way. All electrical repairs must be carried out by a qualified...

  • Page 4: Specification

    SPECIFICATION Supplier Name / Trade Mark Statesman Model Number TL335LWE Category Type Upright Larder Energy Efficiency Class EU Eco-Label Award Annual Energy Consumption 143kWh/annum Freezing Capacity Fridge Storage Volume (Litre) and Applicable Star Rating Compartment 331L Freezer Storage Volume (Litre) Applicable Star Rating Compartment Refrigeration System (Frost Free, Static, Totally No Frost)

  • Page 5: Appliance Overview

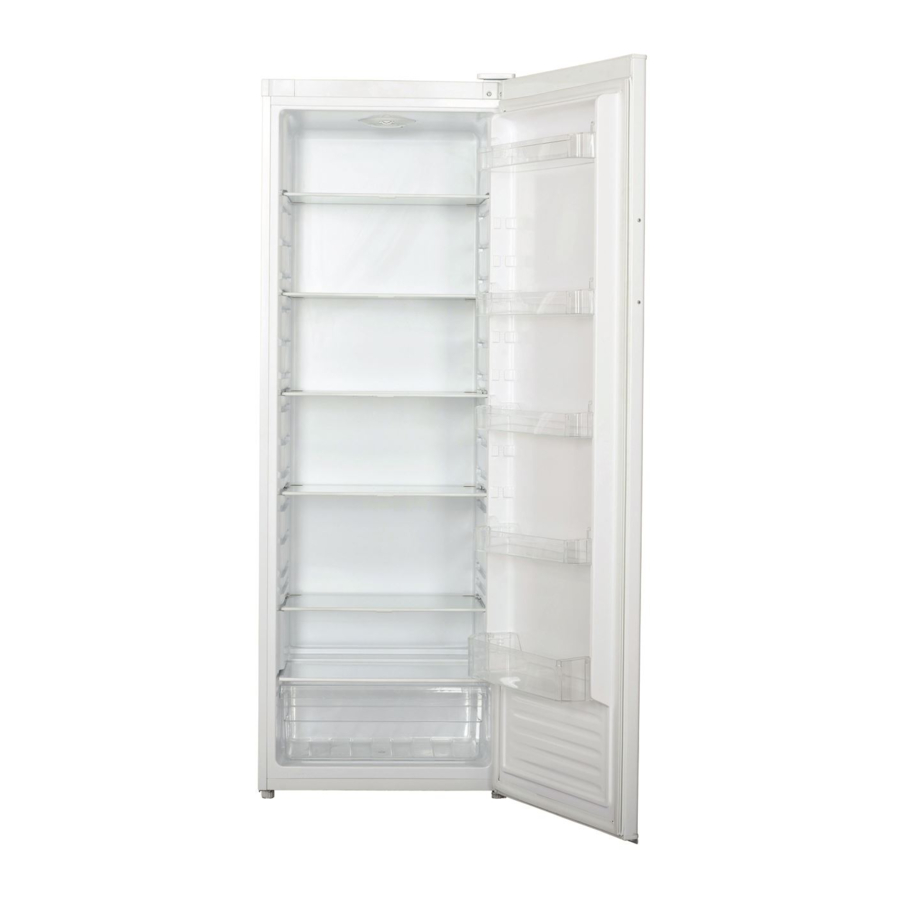

    APPLIANCE OVERVIEW Internal light and thermostat control Glass shelves Door shelves Lower door shelf Salad drawer Levelling feet INSTALLATION Location and Air Circulation • The appliance must stand vertically on a flat, even surface. To level the appliance use the levelling feet by turning them until the appliance is as level as possible. • This appliance has been designed to operate in ambient temperatures between 16°C and 38°C. • It is not recommended to place this appliance in a room where the temperature is likely to drop below 10°C.
  • Page 6 Reverse the Door The appliance door can be fitted to open on either the left or the right depending on its location. The appliance will have to be tilted and supported in order to carry this out. It is advisable to get some help during this procedure WARNING: Do not lay the appliance flat as this may damage the coolant system. Take care when fitting and tightening screws. To change the direction of the door, please follow these instructions: Fig1.

  • Page 7: Operating Instructions

    13. Re-fit the top hinge with the door. Fig8. Fig9. 14. Check the door is aligned horizontally and vertically and all sealed properly. 15. Tighten the hinge screws. 16. Screw the top hinge cover. (Fig 8.) 17. Screw the rear spacer at the rear of the unit. (Fig 9.) 18.
  • Page 8 Temperature Temperature Setting Recommendation Environment Temperature Freezer Compartment Fridge Compartment Summer Set on 3-4 Normal Set on 3-4 Winter Set on 2-3 • Information above give users recommendation of temperature setting. Impact on Food Storage • Under Recommended setting, the best storage time of fridge is no more than 3 days. • The best storage time may reduce under other settings.

  • Page 9: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Disconnect from the electricity supply before cleaning. Interior • Remove all food from the appliance and cover to help keep cool. • Remove all the shelves and salad crisper carefully from the appliance and wash in lukewarm water with a soft cloth and dry thoroughly. Never replace the shelves or salad crisper into the appliance if wet. • Wipe the interior of the appliance with a damp clean cloth. • Dry the interior thoroughly with a clean cloth and replace the shelves. • Plug in and switch on and allow the temperature in the appliance to drop back to an adequate temperature.

  • Page 10: Fuse Replacement

    Bulb Replacement The internal Light is LED it is advised to contact a qualified technician to replace the bulb. Operating Sounds The cooling gas which circulates in the cooling circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that: • The appliance is well levelled • Nothing is touching the rear. • Nothing resting on the appliance is vibrating.

  • Page 11: Trouble Shooting Guide

    TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible cause Solution...
  • Page 12 The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu This product contains a light source of energy efficiency class G (if present). 38 Bluestem Road, Ransomes Europark Ipswich, IP3 9RR 0844 848 5861...
