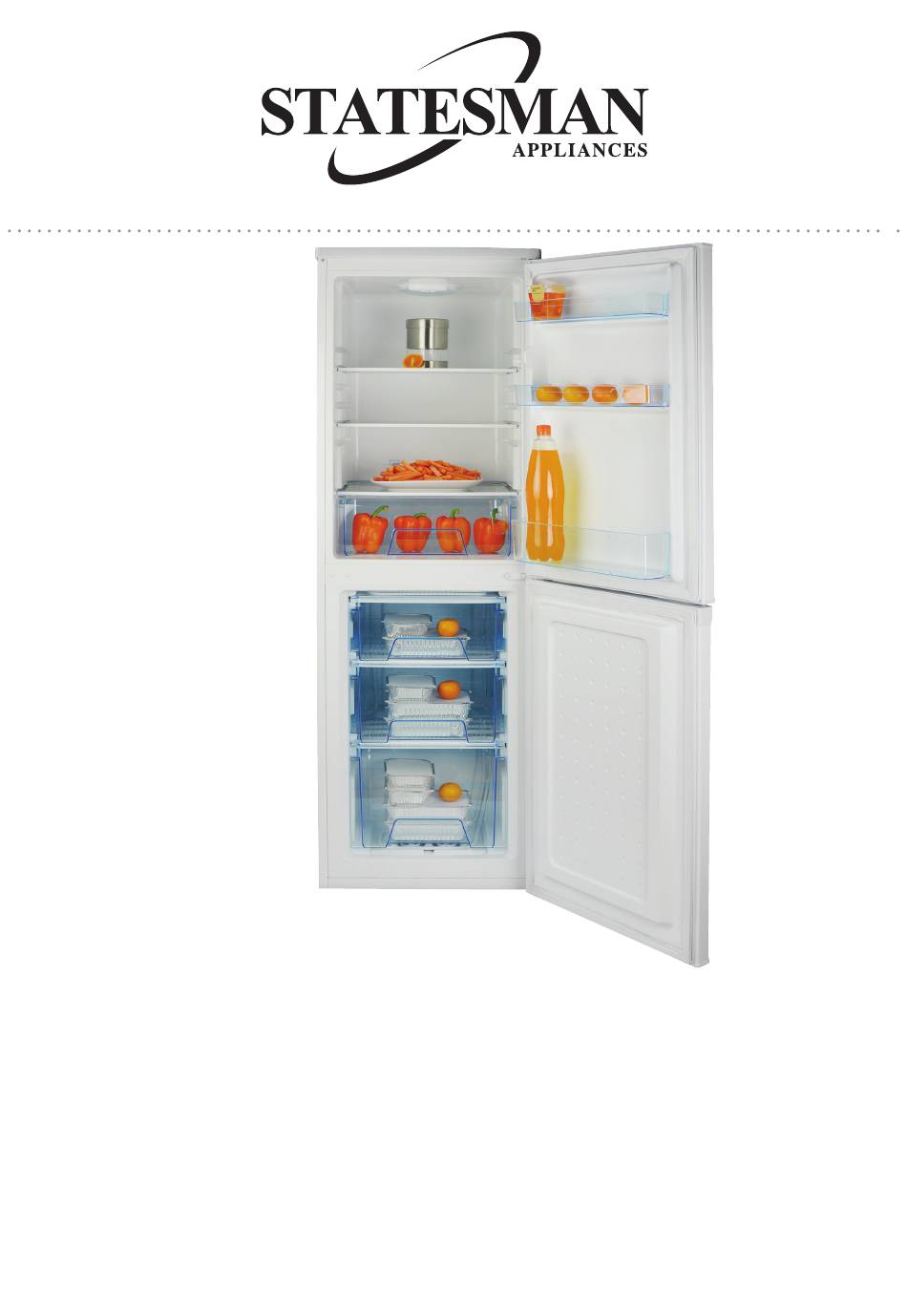

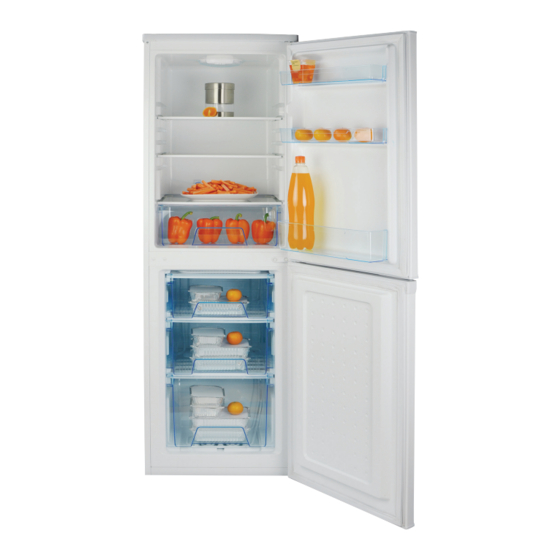

- Page 1 For Models F1974APW, F1974APB & F1974APS 50cm FREESTANDING FRIDGE FREEZER Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3 Specification ..............4 Appliance Overview ............5 Installation ..............6-8 Operating Instructions ...........8 Cleaning and Maintenance ........8-10 Fuse Replacement ............10 Trouble Shooting Guide ..........11 Disposal Information ...........11... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for indoor domestic use only, for refrigerated and frozen food storage only. -
Page 4: Specification
SPECIFICATION Supplier Name / Trade Mark Statesman Model Number F1974AP Category Type Refrigerator with Freezer Energy Efficiency Class EU Eco-Label Award Annual Energy Consumption 215kwh/year Freezing Capacity 3kg/24h Fridge Storage Volume (Litre) and Applicable Star Rating Compartment 117L Freezer Storage Volume (Litre) Applicable Star Rating Compartment 4 Star Refrigeration System (Frost Free, Static, Totally No Frost) Static Temperature Rise Time (-18°C to -9°C) 600 minutes Climate Class ST/N This appliance is intended to be used at an ambient temperature between “16” (lowest temperature) °C and “38”(highest temperature) °C Noise Emission (dB) 43dB Built-in Appliance... -
Page 5: Appliance Overview
APPLIANCE OVERVIEW 1. Refrigerator Lamp 6. Adjustable Foot 2. Glass Shelf 7. Thermostat 3. Drain Port 8. Door Shelves 4. Crisper 9. Bottle Shelf 5. Freezer Drawer... -
Page 6: Installation
INSTALLATION Location and air circulation • The appliance must stand vertically on a flat, even surface, to level the appliance use the levelling feet by turning them until the appliance is as level as possible. • This appliance has been designed to operate in ambient temperatures between 16°C and 38°C. • It is not recommended to place this appliance in a room where the temperature is likely to drop below 5°C for prolonged periods, as the internal appliance temperature will not be maintained. • The appliance should be at least 50 cm away from sources of heat e.g. radiators, direct sunlight, gas ovens, stoves and 5cm away from electric cookers as extreme temperatures will affect the performance of your appliance. - Page 7 4. Remove the 3 screws from the top hinge, then lift the hinge to remove. The top door can now be removed and stored safely. 5. Remove the door block from the underside of the top door. 6. Remove the 2 screws from the middle hinge and remove hinge, the lower door can now be removed and stored safely.
-
Page 8: Operating Instructions
19. Re-adjust the levelling feet to minimise operation noises caused by vibration. 20. Allow 5 hours for the appliance to stand upright before turning on the appliance to allow coolant gases time to settle after the appliance is in place. OPERATING INSTRUCTIONS Before using your appliance • Allow the appliance at least 24 hours before storing any food inside to allow for sufficient cooling... - Page 9 5. Plug in and switch on and allow the temperature in the appliance to drop back to an adequate temperature. 6. Replace the food in the appliance. Important: Avoid getting water into the electric components of the appliance (i.e. the thermostat) as this may damage your appliance. Defrosting the fridge • Defrosting occurs automatically in fridge compartment during operation; the defrosted water will be collected by the evaporating tray and evaporates automatically. • The drain hole in the rear of the fridge compartment should be kept clear from food and debris to prevent water building up which could result in excess ice formation. Defrosting the freezer After a period of time frost will build up in the compartments. Regular defrosting will therefore be necessary to maintain the efficiency of the appliance. The best time to defrost your appliance is when the amount of food stored is low.
-
Page 10: Fuse Replacement
Going away If you are going away and do not want to leave the appliance left on, switch off at the socket and remove the plug from the mains sockets ensuring not to pull the cord. Remove any food and follow the cleaning instructions in the “Cleaning and Maintenance” section. Important: Leave the doors ajar as this will prevent odours and mould accumulating in the appliance and will allow the appliance to dry completely. Power cut In the event of a power cut keep the appliance door closed to maintain the temperature inside. Operating sound The cooling gas which circulates in the cooling circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that: • The appliance is well levelled • Nothing is touching the rear. -
Page 11: Trouble Shooting Guide
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible cause Solution... - Page 12 38 Bluestem Road, Ransomes Europark Ipswich, IP3 9RR 0844 848 5861...
