Summary of Contents for STATESMAN TL335LW

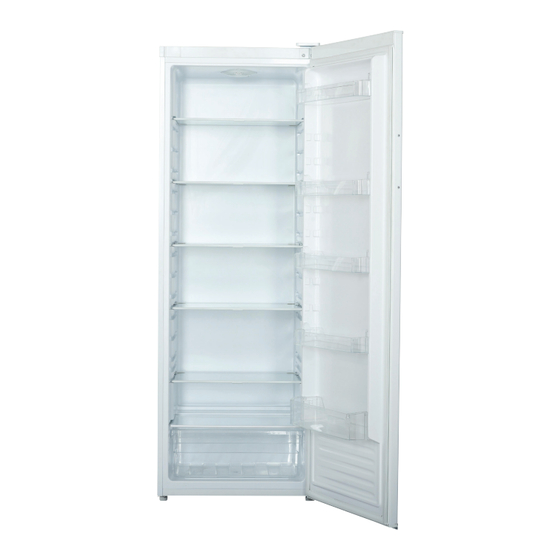

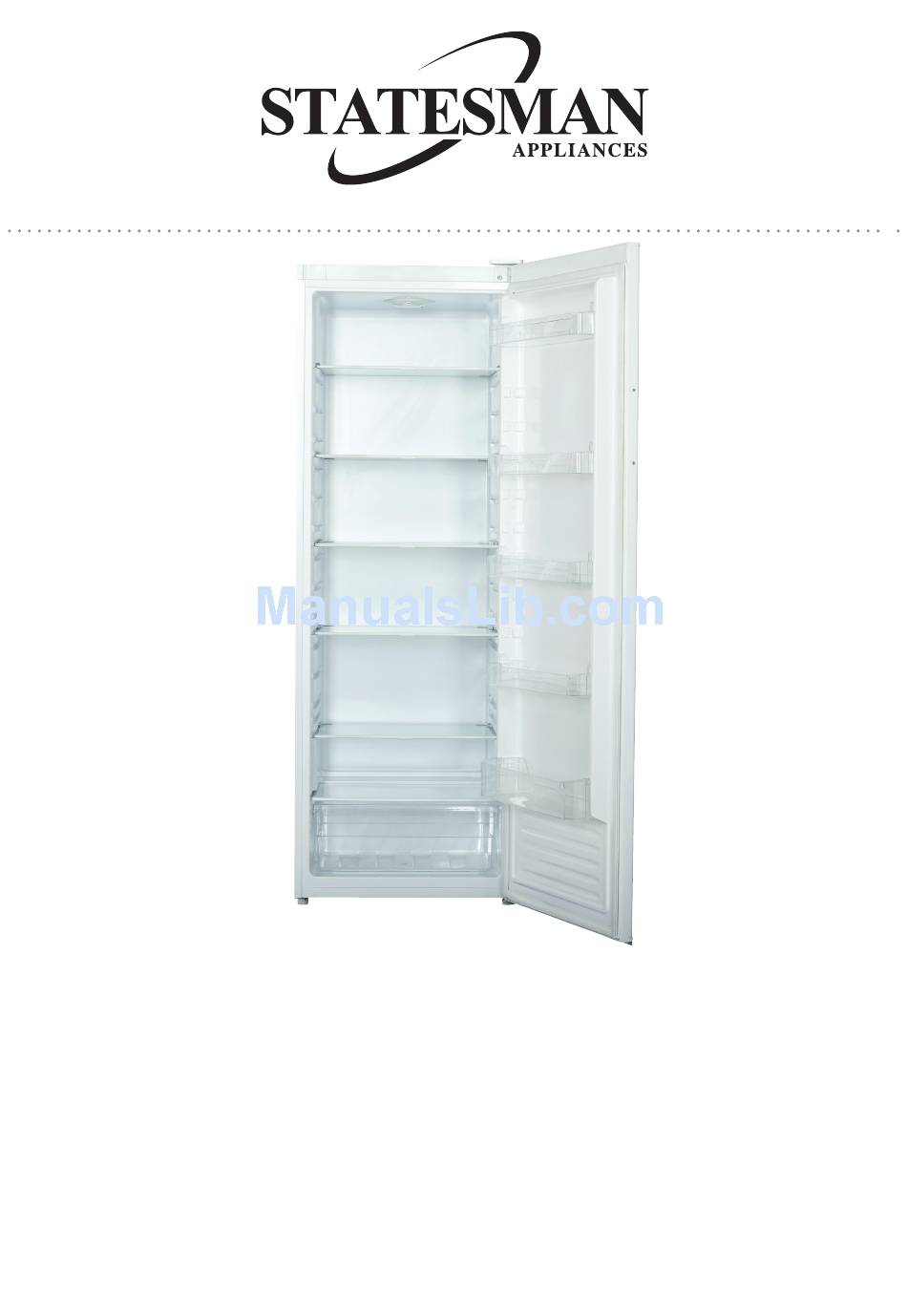

- Page 1 TL335LW UPRIGHT LARDER FRIDGE Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3 Specification ..............4 Appliance Overview ............4 Installation ..............5-6 Operating Instructions ..........6-7 Cleaning and Maintenance ........7-8 Fuse Replacement ............8 Trouble Shooting Guide ..........9 Disposal Information .............9 Terms and Conditions and Warranty Information .. 10-11... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for domestic use only, for food refrigeration and frozen food storage only. -
Page 4: Specification
Specification Supplier Name / Trade Mark Statesman Model Number TL335LW Category Type Upright Larder Energy Efficiency Class EU Eco-Label Award Annual Energy Consumption 135kWh/annum Freezing Capacity Fridge Storage Volume (Litre) and Applicable Star Rating Compartment 335L Freezer Storage Volume (Litre) Applicable Star Rating Compartment Refrigeration System (Frost Free, Static, Totally No Frost) -
Page 5: Installation
INSTALLATION Location and Air Circulation The appliance must stand vertically on a flat, even surface, to level the appliance use the levelling feet by turning them until the appliance is as level as possible. Install the appliance in a well ventilated room with an average room temperature of between 16°C and 38°C. The appliance is supplied with rear spacers, these are to be screwed to the rear of the appliance to ensure enough ventilation at the rear of the appliance. -
Page 6: Operating Instructions
9. Install hinge on left side and foot base on the right side. Refit the levelling feet with their original parts (fig6). 10. U nscrew top hinge pin and re-fit on the left side (fig7). 11. S tand the appliance up and put the door on the bottom hinge. Re-fit the upper hinge with the door. Before tightening check all the seals, if all sealed properly then the hinge screws can be tightened. Reverse Door Fig4. Fig5. Fig6. Fig6. Note: Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before tightening the bottom hinge. -
Page 7: Cleaning And Maintenance
The temperature in the appliances compartment can be monitored by using a fridge thermometer. DO NOT USE a Mercury filled thermometer, as a breakage would cause a health hazard. Your appliance must NOT be placed in a room where the temperature goes below 16°C or above 38°C for prolonged periods, as the internal appliance temperature will not be maintained. Using your Appliance Efficiently • Avoid opening the door for long periods or unnecessarily. -
Page 8: Fuse Replacement
Drainage Channel The drainage channel must be cleaned regularly to prevent a build-up of impurities; this can be found on the interior back wall of your appliance. Use a damp clean cloth and wipe the channel clean, then use a pipe cleaner or similar flexible object to clean the drainage hole to prevent blockages. Going away If you are going away and do not want to leave the appliance switched on, switch off at the socket and remove the plug from the mains socket ensuring not to pull the cord. -
Page 9: Trouble Shooting Guide
Troubleshooting If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 01473 271 272. Please have the model code, batch number and purchase information available. Fault Possible cause Solution... -
Page 10: Terms And Conditions And Warranty Information
Statesman Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects. - Page 11 To register your product, please complete all sections of the form below and return to us at the following address: Statesman Appliances, Pik-a-Pak Electrical Distributors, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR. Alternatively you can visit the Statesman website and complete the form online. www.statesmanappliances.co.uk Customer Details: Title:...
