Summary of Contents for STATESMAN TL235LW

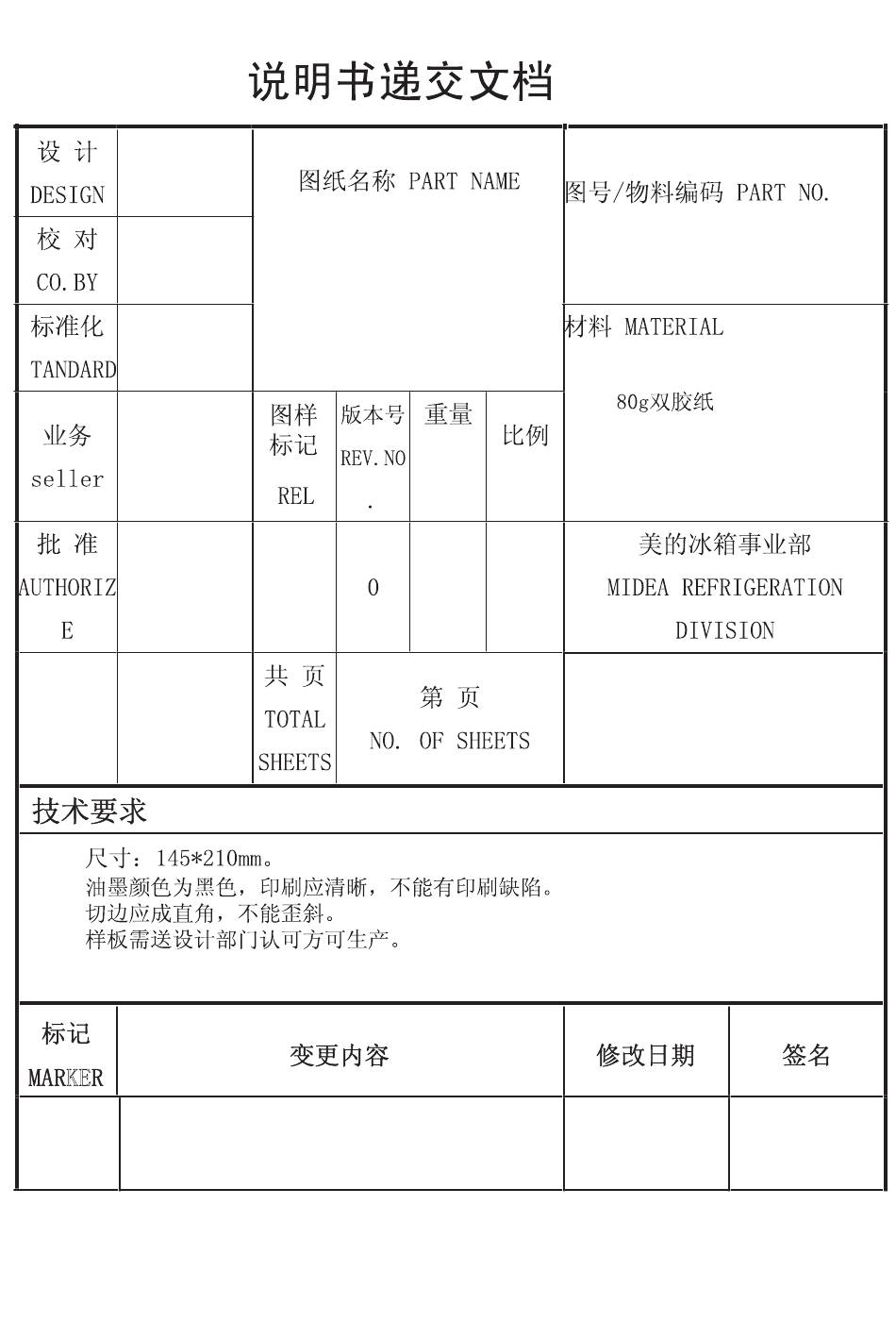

- Page 1 黄志胜 2014.03.15 TL235LW 50200104B577 （CE-BC235-S） 曾斌 scale 杨垒 1、 16P. 2、 3、 4、 版本更新，自MO-106731开始更新。 2016.03.31 程磊 页码11参数有更改，自MO-383587开始更新。 2017.05.08 程磊...
- Page 2 TL235LW - 55cm Single Door Larder Fridge...
-
Page 3: Table Of Contents
Contents SAFETY WARNINGS ......................1 INSTALLTION ........................2 Location ........................2 Reversing the Door Swing ..................2 Door Space Requirements ..................6 Levelling the Unit ....................... 6 Cleaning Before Use ....................6 Before Using Your Unit ....................6 Interior Accessories ....................7 PRODUCT OVERVIEW ...................... -
Page 4: Safety Warnings
1. SAFETY WARNINGS 1) WARNING―Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING―Do not damage the refrigerant circuit. 3) WARNING―Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. 4) The appliance has to be unplugged after use and before carrying out user maintenance on the appliance. -
Page 5: Installtion
2. INSTALLTION 2.1 Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 3) Remove the hinge shaft sleeve and the door block to the other side. Remove the nut with sleeve. Take off the washer then remove the axes to the other side and fixed.
- Page 7 4) Disassemble the screws fixed the bottom hinge assembly with cross slot screwdriver and remove the adjustable foot Note：the refrigerator-freezer incline angle less 45°. 5) Replace the bottom hinge to the other side then fix it with screws. Install the two screws on the right and Remove the left top hinge cover...
- Page 8 7) Install the left top hinge cover on the right and Remove the two screws 8) Install the top-hinge. set the top door right position, fix the top-hinge and the cover. Install the left top hinge cover on the left...
-
Page 9: Door Space Requirements
Door Space Requirements The unit's door must be able to open fully as shown. W×D≥902×1052mm Levelling the Unit To do this adjusts the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. -
Page 10: Interior Accessories
properly andto allow it time to fall to the correct temperature. Your unit should not be overfilled. ◆ Before Plugging in You must check that you have a socket which is compatible with the plug supplied with the unit. ◆ Before Turning On! Do not turn on until two hours after moving the unit. -
Page 11: Operation
4. OPERATION 4.1 Switching On Your Unit ◆The temperature selector knob is located on the right hand sidewall of the refrigerator interior Setting“Min” ：Less Cool Temperature Setting“Med” ：Normal Operation (adequate for most situations) Setting“Max” ：Coolest Temperature ◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat to the Coolest setting (position“Max”).This may cause the compressor running continuously in order to maintain a low temperature in the cabinet. -
Page 12: Cleaning Tips
warm water using a“wrung-out”sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. ◆ Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that thedoor is closed to avoid the polish getting on the magnetic door seal or inside the unit. -
Page 13: Warm Tips
Illuminating light does not Whether the refrigerator is connected to power, shine whether the illuminating light is damaged. The freezer door is stuck by food packages; The refrigerator door cannot Too much food; be properlyclosed. Tilt refrigerator. Whether the food is leveled, whether the refrigerator is Loud noises balanced;... -
Page 14: Disposal
9. DISPOSAL Old units s ll have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insula on materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. - Page 15 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
