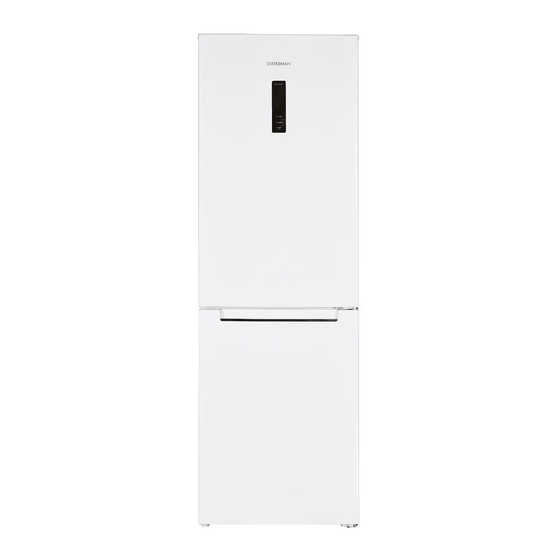

STATESMAN TNF1860W Instruction Manual

60cm 60/40 total no frost fridge freezer with led display
Hide thumbs
Table of Contents

Advertisement

Quick Links

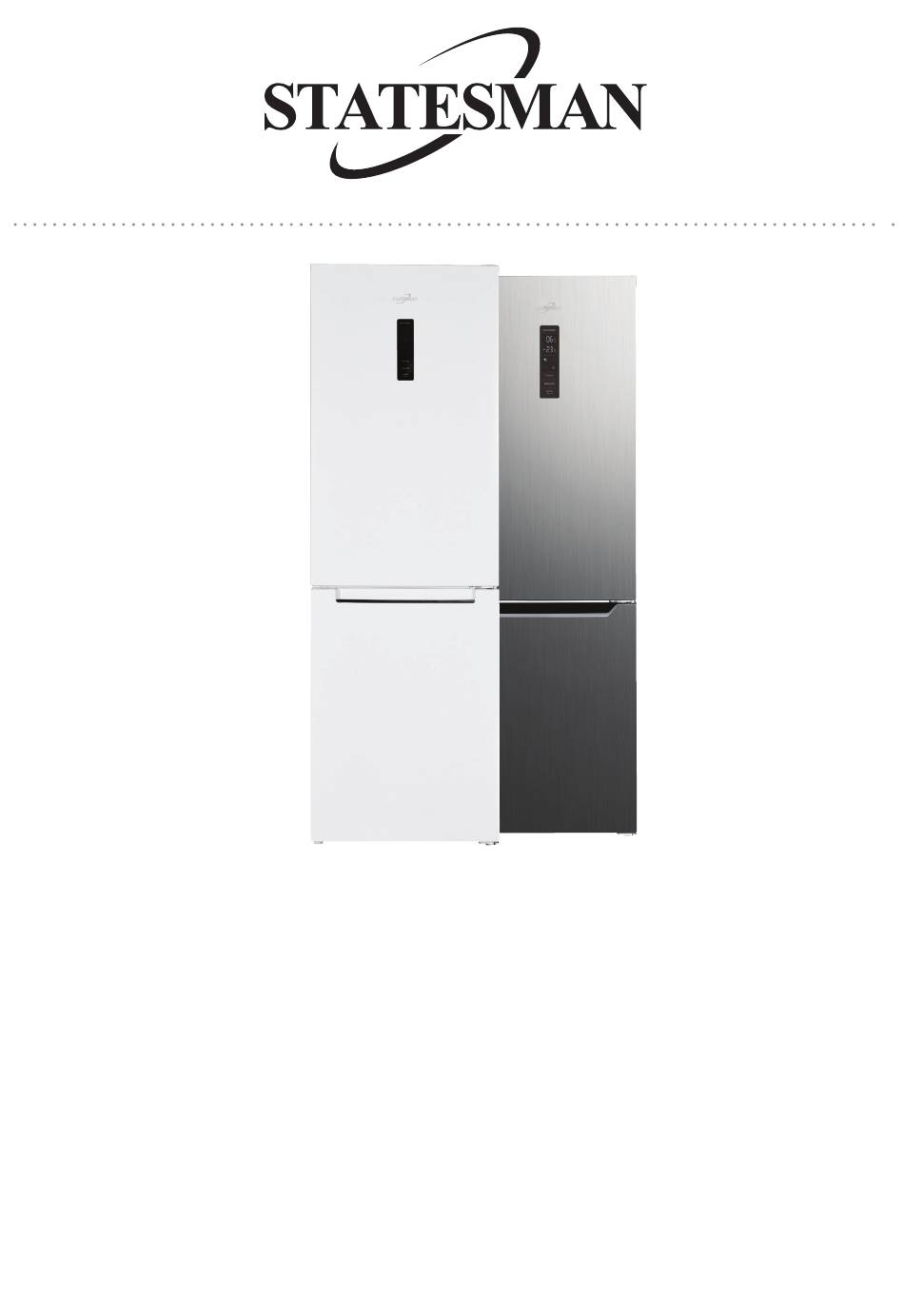

TNF1860W/TNF1860X
60CM 60/40 TOTAL NO FROST FRIDGE FREEZER
WITH LED DISPLAY
Instruction Manual
Serial number:
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNF1860W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STATESMAN TNF1860W

Summary of Contents for STATESMAN TNF1860W

  • Page 1 TNF1860W/TNF1860X 60CM 60/40 TOTAL NO FROST FRIDGE FREEZER WITH LED DISPLAY Instruction Manual Serial number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ........3-5 Appliance Overview ............6 Technical Specification .............7 Installation ..............8-10 Door Reversal ............10-15 Operating Instructions ..........16-21 Cleaning and maintenance ..........21 Fuse Replacement ............22 Disposal Information ............22 Troubleshooting guide ............23...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for domestic use only; to store and freeze food products only.
  • Page 4 10. Always unplug the appliance before attempting to move. When disconnecting from the electricity supply, pull the plug and not the cord. 11. This product is for indoor use only. 12. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • Page 5 WARNING: During use, servicing and disposal of the appliance, please pay attention to this symbol which is located on rear of appliance. There are internal flammable materials. Ensure that during use, servicing and disposal it is far away from fire. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

  • Page 6: Appliance Overview

    APPLIANCE OVERVIEW Fridge Shelves Fridge Balconies Crisper Cover Crisper Fresh Converter Drawer Freezer Drawers Leveling Feet...

  • Page 7: Technical Specification

    SPECIFICATION Trade Mark Statesman Model Number TNF1860W/TNF1860X Category Type Refrigerator - Freezer Energy Efficiency Class A+ Annual Energy Consumption 317 kWh/year Total Net Storage Volume (Litre) 315L Freezing Capacity 12kg/24 hours Fridge Net Storage Volume (Litre) 199L Freezer Net Storage Volume (Litre)

  • Page 8: Installation

    INSTALLATION • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the retailer. Make sure to retain the packaging. • It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
  • Page 9 Levelling If the floor is not perfectly horizontal, you can adjust the height by tightening or loosening the two levelling feet at the front of the appliance. Note: If the appliance is not level, the doors and magnetic seal alignments will not be covered properly.

  • Page 10: Door Reversal

    Electrical connection Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
  • Page 11 2. Unscrew the top hinge. 3. Remove the pin using a screwdriver. Flip the hinge bracket and then refit the pin. 4. Remove the door switch from the existing hinge cover and attach to the replacement (opposite) hinge cover. 5. Remove the upper door cover and move the harness from one side to the opposite side. Then reattach the door cover.
  • Page 12 6. Unscrew the rectangular cover and reattach on the opposite side. 7. Remove the upper door and remove the hinge situated between the upper and lower door using a cross screwdriver. Then remove the lower door. 8. Remove the hinge hole covers from one side and reattach them on the other side. WARNING! When moving the appliance, always seek assistance.
  • Page 13 9. Lay down the fridge freezer and then remove the adjustable feet from both sides. 10. Using a spanner, unscrew the bottom hinge pin. Flip the bracket and then refit the pin. 11. Screw the bottom hinge pin in to the opposite side.
  • Page 14 12. Remove the closing-aids from the bottom of both the upper and lower doors. Use the replacement (opposite) closing-aids and attach them the opposite side. 13. Remove both the fridge and freezer door gaskets, rotate them 180° and then reattach them. 14.
  • Page 15 15. Reinstall the upper door, ensuring that the door is correctly aligned. If the door is not, the gasket may not seal tightly during use. Connect the door to the unit by tightly screwing in the top hinge. 16. Connect the harnesses between the door and the unit. Attach the top hinge cover ensuring that the terminals of the door switch are connected.

  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS Using the Control Panel 1. Temperature of Fridge Compartment 2. Temperature of Freezer Compartment 3. ECO Mode 4. Holiday Mode 5. Super Freeze Mode 6. Lock / Unlock A. Temperature Control of Fridge Compartment B. Temperature Control of Freezer Compartment C.
  • Page 17 Daily Use To avoid contamination of food, please follow the below instructions. • Opening the door for long periods can cause a significant increase of the temperature. • Regularly clean surfaces that can come in contact with food. • Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drips onto other food.
  • Page 18 Fresh Converter Drawer Temperature Control • Temperature of the fresh converter drawer can be adjusted to best suit the food stored. • Push the slider control up and the temperature in the fresh zone will gradually decrease. • When the slider control is placed at the “CRISPER” position the fresh converter drawer will function as a crisper zone and will maintain the appropriate temperature and humidity...
  • Page 19 Temperature Control of the Freezer Compartment This button can be used in both the User Defined Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment, the button will flash. By pressing this consecutively, the temperature will change in a cycle from -14°C to -22°C, after which a 5-second flashing means the temperature has been selected.
  • Page 20 Holiday Mode Press the MODE button to choose the Holiday mode. After flashing for 5 seconds, the Holiday mode icon will stay illuminated meaning the Holiday mode has been confirmed. In Holiday mode, the temperature of the fridge will be set at 17°C. The “FRIDGE”...

  • Page 21: Cleaning And Maintenance

    Thawing Deep-frozen or frozen food, prior to being consumed, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer. Door open alarm If the fridge (upper) door is open for longer than 60 seconds, the alarm will ring periodically until it is closed.

  • Page 22: Fuse Replacement

    MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place.

  • Page 23: Troubleshooting Guide

    TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible Cause Solution...
  • Page 24 Ipswich, IP3 9RR 0844 848 5861 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
