EVM User's Guide: TPS4812Q1EVM
TPS4812-Q1 Evaluation Module for Smart High-Side
Driver
Description

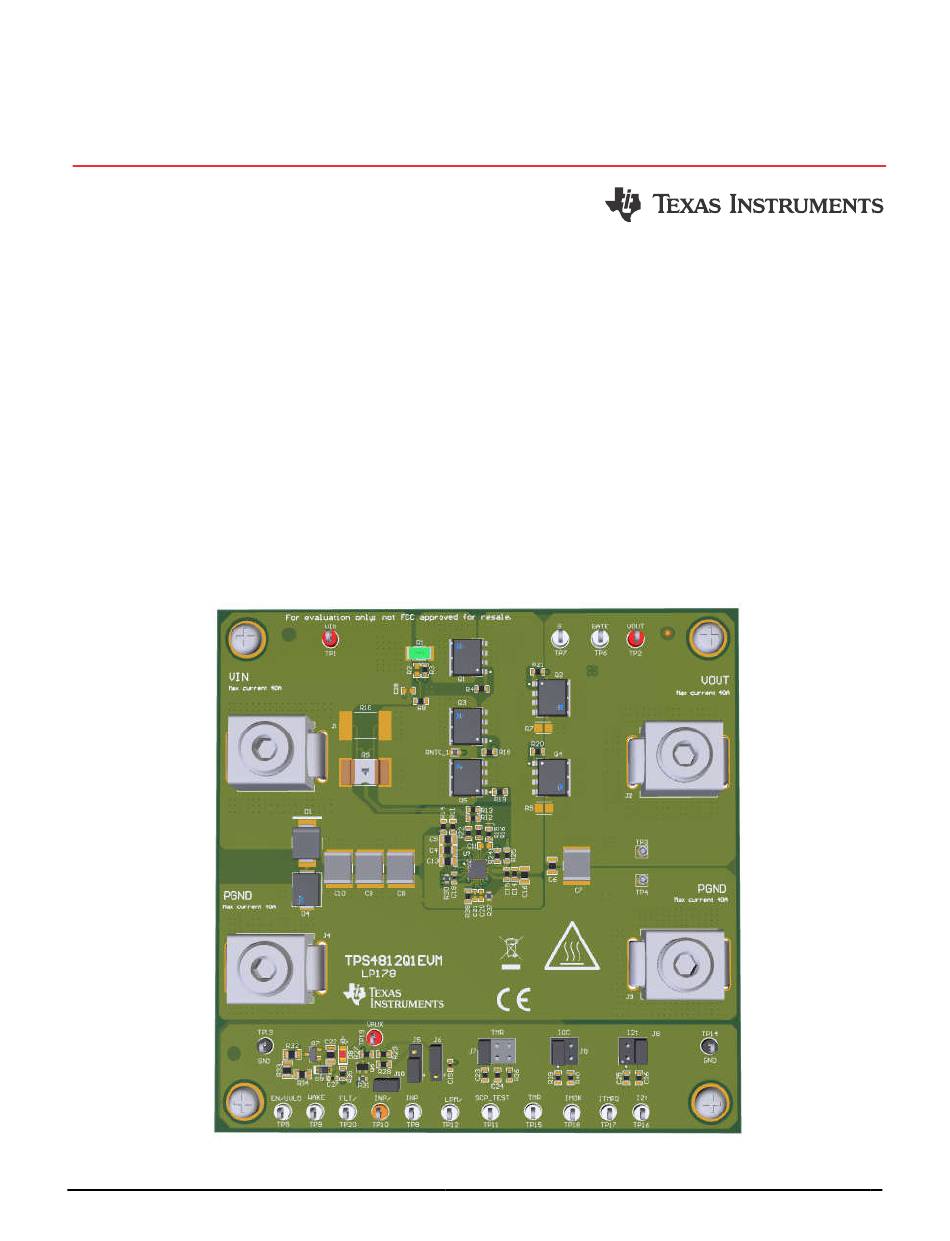

The TPS4812Q1EVM allows reference circuit
evaluation of TI's TPS4812-Q1 smart high-side
driver. The TPS4812-Q1 is a 3.5V to 95V smart
high-side controller and has two strong 2A gate
drivers with separate control inputs allowing multiple
configurations including a low power path mode,
with auto load wake-up options. The TPS4812-
Q1 provides bi-directional current monitoring and
2
adjustable I
t based overcurrent and short circuit
protection with configurable auto-retry and latch-off
fault behavior.
SLUUDA5 – JUNE 2025
Submit Document Feedback
Features
•
3V to 80V operating voltage range
•
16A to 36A adjustable short circuit protection using
onboard jumpers
•
Programmable I
•
Programmable short-circuit protection delay
•
Programmable auto-retry and latch options
•
Bi-directional current monitoring
•
LED status indication for fault conditions
Applications
•
48V battery management system
•
DC/DC converter
•
Automotive power distribution box
•
Zonal
Copyright © 2025 Texas Instruments Incorporated
2
t shut down time
TPS4812-Q1 Evaluation Module for Smart High-Side Driver
Description
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS4812Q1EVM
Summary of Contents for Texas Instruments TPS4812Q1EVM
- Page 1 EVM User's Guide: TPS4812Q1EVM TPS4812-Q1 Evaluation Module for Smart High-Side Driver Description Features The TPS4812Q1EVM allows reference circuit • 3V to 80V operating voltage range evaluation of TI's TPS4812-Q1 smart high-side • 16A to 36A adjustable short circuit protection using driver.
-
Page 2: Kit Contents
EVM schematics, bill of materials, assembly drawings, and top and bottom board layouts. CAUTION Hot surface. Contact can cause burns. Do not touch. 1.2 Kit Contents Table 1-1. TPS4812Q1EVM Kit Contents Item Description Quantity TPS4812Q1EVM 1.3 Specification... -
Page 3: General Configurations
2 Hardware 2.1 Overview The TPS4812Q1EVM evaluation board enables evaluation of TPS48120-Q1 driver. The input power is applied between connectors J1 and J4 while J2 and J3 provide an output connection to the load. Refer to the schematic Figure 4-1... - Page 4 One resistive load or equivalent that can tolerate up to 50A DC load at 60V and capable of the output short. TPS4812-Q1 Evaluation Module for Smart High-Side Driver SLUUDA5 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 5 Make sure the evaluation board has default jumper settings as shown in Table 3-1. Table 3-1. Default Jumper Setting for TPS4812Q1EVM Evaluation Board Figure 3-1. TPS4812Q1EVM Setup with Test Equipment Follow the below instructions before starting any test and repeat again before moving to next test.
- Page 6 = 470 nF) Figure 3-3. State Transition From LPM to Active Mode (LPM = Low to High, Vin = 48V, No Load) TPS4812-Q1 Evaluation Module for Smart High-Side Driver SLUUDA5 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 7 4. Now, load the output to 16A with electronic load to observe the overload behavior of TPS48120-Q1. 5. Disconnect the load Figure 3-4. I T based Overcurrent Response of TPS4812Q1EVM for 6A to 16A Load Step Figure 3-5. Auto-Retry Response of TPS48120-Q1 for an I T based Overcurrent Fault SLUUDA5 –...
- Page 8 Implementation Results www.ti.com Figure 3-6. Latch-off Response of TPS48120-Q1 for an I T based Overcurrent Fault TPS4812-Q1 Evaluation Module for Smart High-Side Driver SLUUDA5 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 9 470nF 5.6V 330pF BAS21-TP 961102-6404-AR 1.2s Latch-off 330ms 3.3V at 150C 3.3V at 36A Figure 4-1. TPS4812Q1EVM: Evaluation Module Schematic SLUUDA5 – JUNE 2025 TPS4812-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 10: Pcb Layout
Figure 4-4 through Figure 4-7 show the remaining PCB layout images. Figure 4-2. TPS4812Q1EVM Board Top Overlay Figure 4-3. TPS4812Q1EVM Board Bottom Overlay Figure 4-4. TPS4812Q1EVM Board Top Layer Figure 4-5. TPS4812Q1EVM Board Bottom Layer Figure 4-7. TPS4812Q1EVM Board Inner Routing Figure 4-6. - Page 11 Header, 2.54mm, 2x1, TH 961102-6404-AR Q1, Q2, Q3, Q4, N-Channel 100V 135A (Tc) 136W (Tc) Surface Mount PowerPAK® 8 SQJQ410EL-T1_GE3 Vishay SLUUDA5 – JUNE 2025 TPS4812-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 12 Sullins Connector Solutions SH-J6 TP1, TP2, TP19 Test Point, Multipurpose, Red, TH 5010 Keystone TP3, TP4 Connector, Receptacle, Pin, TH 0300-2-15-01-47-01-10-0 Mill-Max TPS4812-Q1 Evaluation Module for Smart High-Side Driver SLUUDA5 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 13 RES, 100, 1%, 0.5 W, AEC-Q200 Grade 0, 1206 CRCW1206100RFKEAHP Vishay-Dale RES, 10.0, 1%, 0.125 W, 0805 RC0805FR-0710RL Yageo America SLUUDA5 – JUNE 2025 TPS4812-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 14 Additional Information www.ti.com 5 Additional Information Trademarks All trademarks are the property of their respective owners. TPS4812-Q1 Evaluation Module for Smart High-Side Driver SLUUDA5 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
