www.ti.com

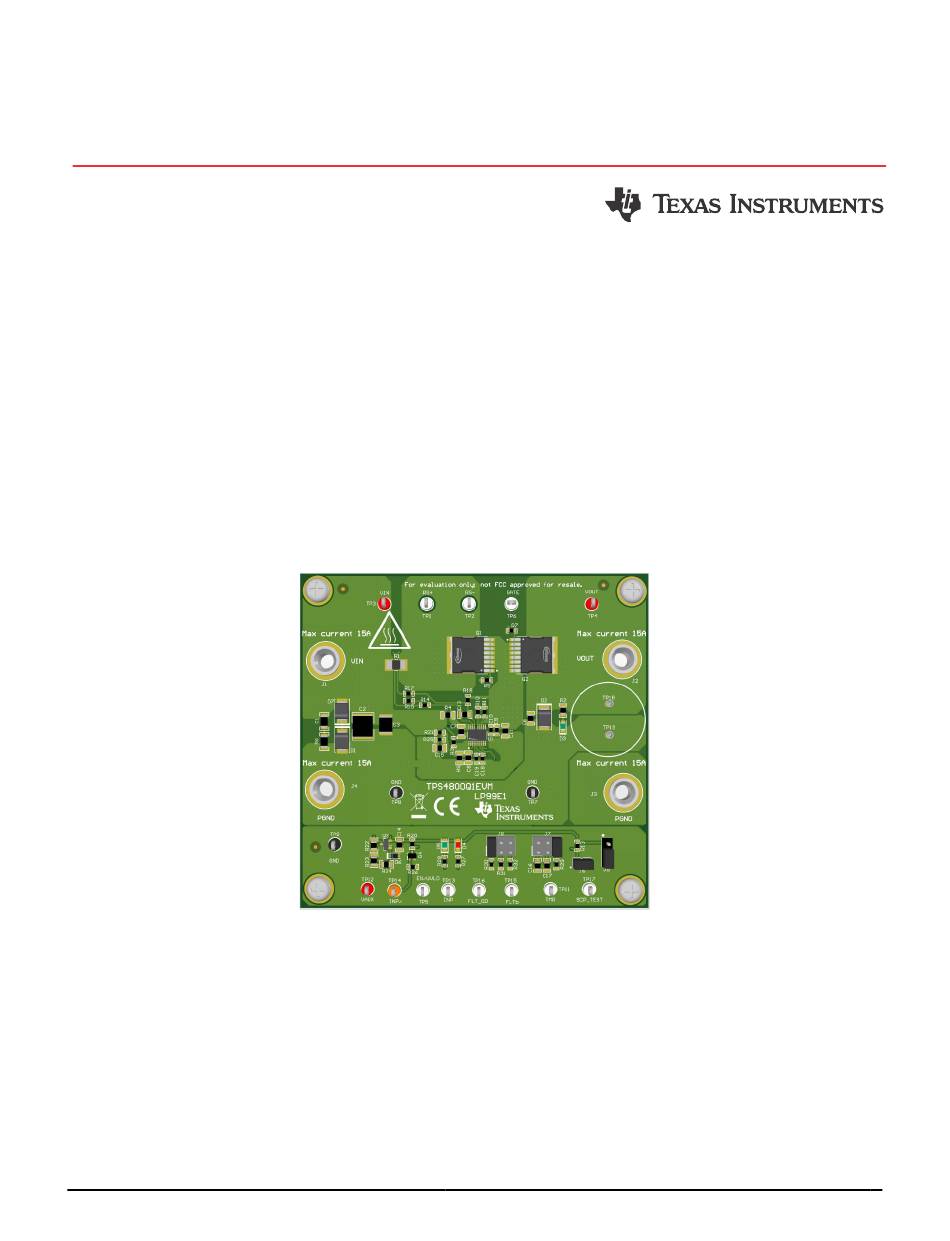

EVM User's Guide: TPS4800Q1EVM TPS4800-Q1
TPS4800-Q1 Evaluation Module for Smart High-Side
Driver
Description

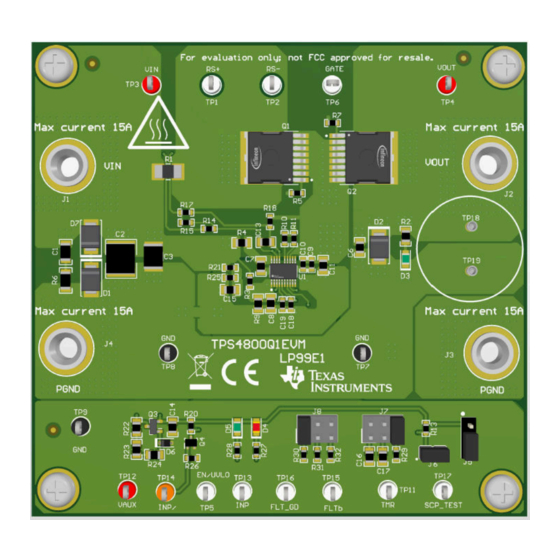

The TPS4800Q1EVM allows reference circuit
evaluation of TI's TPS4800-Q1 smart high-side driver.
The TPS4800-Q1 is a 3.5-V to 80-V smart high-side
controller and has a strong (2-A) gate drive that
enables power switching using parallel MOSFETs
in high current system designs. The TPS4800-Q1
provides adjustable short circuit protection with
configurable auto-retry and latch-off fault behavior.
SLUUCV9 – NOVEMBER 2023
Submit Document Feedback
Features
•
3.5-V to 80-V operating voltage range
•
5-A to 15-A adjustable short circuit protection
using onboard jumpers
•
Selectable high-side or low-side current sense
configuration
•
Programmable short-circuit protection delay
•
Programmable auto-retry and latch options
•
LED status indication for fault and GATE good
conditions
Applications
•
Circuit breaker and safety disconnect switch
•
DC/DC converter
•
Power tools
Copyright © 2023 Texas Instruments Incorporated
TPS4800-Q1 Evaluation Module for Smart High-Side Driver
Description
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS4800-Q1
Summary of Contents for Texas Instruments TPS4800-Q1
- Page 1 3.5-V to 80-V operating voltage range evaluation of TI's TPS4800-Q1 smart high-side driver. • 5-A to 15-A adjustable short circuit protection The TPS4800-Q1 is a 3.5-V to 80-V smart high-side using onboard jumpers controller and has a strong (2-A) gate drive that •...
-
Page 2: Kit Contents
TPS12000-Q1 device can also be evaluated on this EVM by replacing the TPS48000QDGXRQ1 (U1) with TPS12000QDGXRQ1 and connecting EN/UVLO (TP5) to VAUX (TP12) This user’s guide describes the TPS4800-Q1 evaluation module (EVM). This guide provides configuration information, test setup details and contains the EVM schematics, bill of materials, assembly drawings, and top and bottom board layouts. -
Page 3: General Configurations
Ground connection for the power supply VOUT Power output connector to the positive side of the load PGND Ground connection for the load SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 4 A DPO2024 or equivalent, three 10 times voltage probes, and a DC current probe. 2.2.2.4 Loads One resistive load or equivalent that can tolerate up to 20-A DC load at 60 V and capable of the output short. TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback...
- Page 5 Turn OFF the power supply. • Set the jumper setting on EVM to default position as shown in Table 3-1. SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 6 Figure 3-2. Start-Up Profile of Bootstrap Voltage with INP = GND, CBST = 470 nF Figure 3-3. Start-Up Profile with INP = HIGH, CBST = 470 nF TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback...
- Page 7 Figure 3-4. Turn-ON Response of TPS48000-Q1 for INP -> LOW to HIGH Figure 3-5. Turn-OFF Response of TPS48000-Q1 for INP -> HIGH to LOW SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 8 7. Now, perform output short to capture the short-circuit behavior of TPS48000-Q1. Figure 3-6. Overcurrent Response of TPS4800Q1EVM for 12-A to 18-A Load Step Figure 3-7. Auto-Retry Response of TPS48000-Q1 for an Overcurrent Fault TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback...
- Page 9 Implementation Results Figure 3-8. Latch-off Response of TPS48000-Q1 for an Overcurrent Fault Figure 3-9. Output Short-Circuit Response of TPS48000-Q1 SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 10 3. Now, gradually increase the VIN voltage to observe the overvoltage cutoff response of TPS48000-Q1 using an oscilloscope. Figure 3-10. Overvoltage Cut-off Response of TPS48000-Q1 at 58-V Level TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback...
- Page 11 3. Now, toggle the SCP_TEST (TP17) and observe the response of PU/PD and FLTb pins during short circuit comparator (SCP) diagnosis. Figure 3-11. SCP_TEST Response of TPS48000-Q1 SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 12 4. Enable the power supply. 5. Observe the waveform at VOUT (TP4) with an oscilloscope. Figure 3-12. Input Reverse Polarity Protection of TPS48000-Q1 Device TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 13 68nF 680nF 100k 4.70k 10.0k TP15 TP16 5.6V FLTb FLT_GD PGND FLTb FLT_GD 10ms Figure 4-1. TPS4800Q1EVM: Evaluation Module Schematic SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 14: Pcb Layout
Figure 4-3. TPS4800Q1EVM Board Bottom Overlay Figure 4-2. TPS4800Q1EVM Board Top Overlay Figure 4-4. TPS4800Q1EVM Board Top Layer Figure 4-5. TPS4800Q1EVM Board Bottom Layer TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 15 Hardware Design Files Figure 4-6. TPS4800Q1EVM Board Inner Signal Figure 4-7. TPS4800Q1EVM Board Inner Routing Layer Layer SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 16 MOSFET, N-CH, 60 V, 0.115 A, SOT-323 SOT-323 2N7002W-7-F Diodes Inc. RES, 0.002, 1%, 2 W, AEC-Q200 Grade 0, R1, R8 0.002 2010 WSLP20102L000FEA Vishay-Dale 2010 TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 17 CAP, CERM, 0.01 uF, 100 V, +/- 10%, X7R, 0.01uF 1206 12061C103KAT2A 1206 CAP, CERM, 0.01 uF, 100 V, +/- 5%, X7R, C8, C13, C15 0.01uF 08051C103JAT2A 0805 SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 18 RES, 10.0, 1%, 0.125 W, 0805 RC0805FR-0710RL Yageo America R15, R16, R18, R19 RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0603 CRCW06030000Z0EA Vishay-Dale TPS4800-Q1 Evaluation Module for Smart High-Side Driver SLUUCV9 – NOVEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 19 Additional Information 5 Additional Information Trademarks All trademarks are the property of their respective owners. SLUUCV9 – NOVEMBER 2023 TPS4800-Q1 Evaluation Module for Smart High-Side Driver Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
