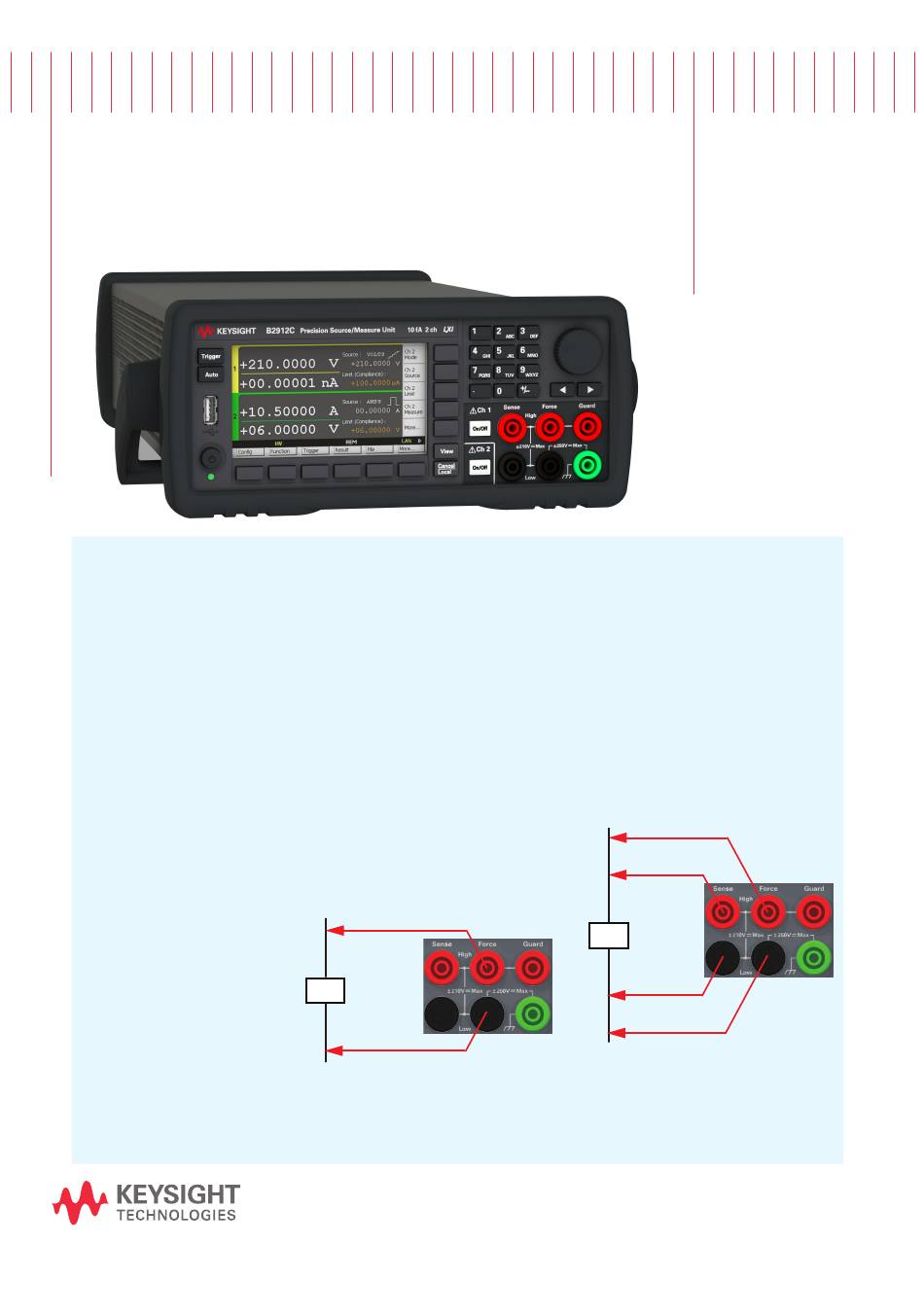

Keysight B2900C/CL Series
Precision Source/Measure Unit
Preparing the Instrument for Use
To position the instrument:
1. Grab the handle by the sides and pull outward.
2. Rotate the handle.
3. Position the instrument.
To turn the instrument ON:
1. Connect the power cord from AC input connector to an AC power outlet at your site.
2. Press the line switch.
To set the power line cycle:
1. Press the More > System > PLC function keys.
2. Press the 50 Hz or 60 Hz key to specify the power line cycle at the site.
To connect the device under test (DUT), optional:
1. B2900 terminals use banana
jacks. Prepare test leads
that use banana plugs.
2. Connect the test leads as
shown in the figures.
For using 4-wire connection, set the Sensing Type to 4-WIRE on the Output Connection dialog box. With the
default setting, it is set to 2-WIRE.
The dialog box is opened by pressing the Config > Source > Connection function keys.
High Force
DUT
Low Force
2-wire connection
Latest Information
To get the latest firmware, software, manuals, and
support information, go to www.keysight.com.
You can then search them by product number.
High Force
High Sense
DUT
Low Sense
Low Force
B2901CL/B2910CL
B2901C/B2902C
B2911C/B2912C
Quick Reference
4-wire connection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2900C Series and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight Technologies B2900C Series

Summary of Contents for Keysight Technologies B2900C Series

  • Page 1 Keysight B2900C/CL Series B2901CL/B2910CL B2901C/B2902C Precision Source/Measure Unit B2911C/B2912C Quick Reference Preparing the Instrument for Use Latest Information To get the latest firmware, software, manuals, and To position the instrument: support information, go to www.keysight.com. 1. Grab the handle by the sides and pull outward. You can then search them by product number.
  • Page 2 12 11 1. Line switch: Turns the instrument on or off. 2. USB-A connector: Used to connect a USB memory. 3. Auto key: Starts a repeat measurement or aborts the repeat measurement. 4. Trigger key: Starts a single measurement, aborts a repeat measurement, or initiates trigger system. 5.

  • Page 3: Changing The View Mode

    Editing the Setup MOVE status EDIT status EDIT status MOVE status Select Press to select Press to fix Changing the View Mode B2901C/B2901CL/B2910CL Single Graph B2902C Dual Single Ch1 Single Ch2 Graph B2911C Single Graph Roll B2912C Dual Single Ch1 Single Ch2 Graph Roll...

  • Page 4: Applying Dc Output

    Applying DC Output B2900 applies a constant voltage of +500 mV by the following procedure. 1. Set the source mode and the Source value. a. Press the View key to b. Press the Mode assist key. c. Press the VOLTS (V) assist key. display the Single view.

  • Page 5: Performing Low Current Measurements

    Performing Sweep Measurements B2900 applies a staircase sweep voltage and measures the current at each step voltage by the following procedure. 1. Press the key to display the Single view. 2. Set the Source mode, Limit value, and measurement mode as shown in "Applying DC Output".

  • Page 6: Sweep Setup

    Single View 1. Channel number. 1 or 2. 2. Latest measurement data 3. Over voltage/current status indicator (OV or OC) 4. High capacitance mode indicator (HC) 5. Remote sensing (4-wire connection) status indicator 6. Source function. VOLTS or AMPS. 7. Source shape indicator. DC, pulse, sweep, or pulsed sweep. DC does not show the indicator. 8.
  • Page 7 Graph View Displays the graph for plotting the channel 1 and/or 2 measurement or math result. 1. Graph display status ON or OFF. Only on 2-channel models. [n] is for channel n. 2. Y-axis data type I (A), V (V), R (W), P (W), or MATH 3.
  • Page 8 WARNING: Potentially hazardous voltages of up to ±250 V may be present at the Low Force and Low Sense terminals. To prevent electrical shock, use accessories that comply with IEC 61010-031. The terminals and the extended conductors must be isolated by using insulation caps, sleeves, etc. *B2910-90200* © Keysight Technologies 2025 Printed in Malaysia Part Number B2910-90200...
