Etac Molift Mover 180 User Manual

Hide thumbs Also See for Molift Mover 180:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Molift Mover 180
BM08299 - 2025-02-20 - Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Molift Mover 180 and is the answer not in the manual?

Questions and answers

Related Manuals for Etac Molift Mover 180

Summary of Contents for Etac Molift Mover 180

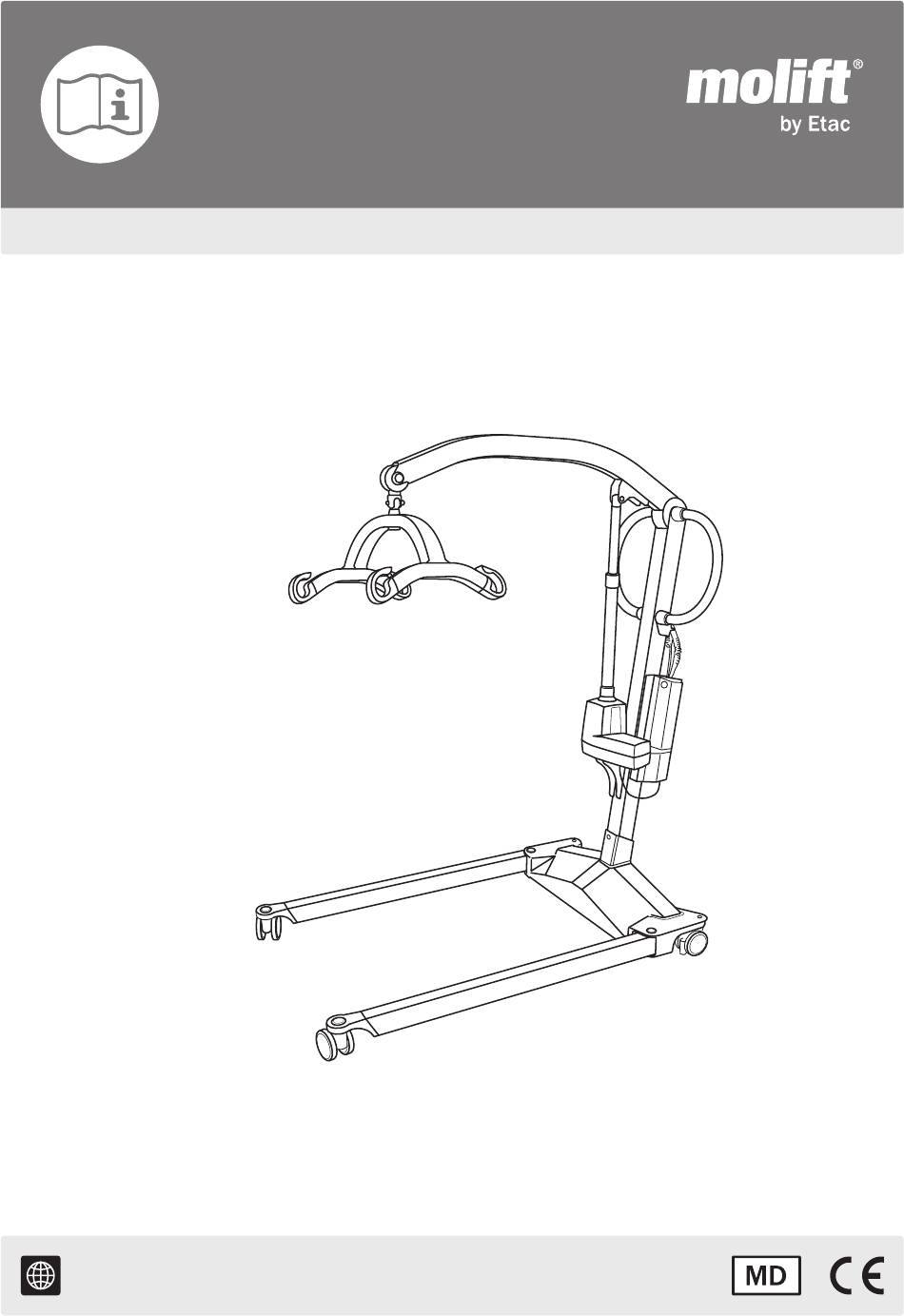

  • Page 1 User manual Molift Mover 180 BM08299 - 2025-02-20 - Rev. 1.0...
  • Page 2 CONTENT Symbols Handling Assembly Device overview Warnings General Information English Checklist Emergency stop Warnings Information Rising Lowering Warnings Information Technical data BM08299 Rev. 1.0...
  • Page 3 EN: Warning: This symbol appears in the user manual along with a number referring to the instructions below. It draws attention to situations where the prod- uct or the user or carer’s safety may be in danger. BM08299 Rev. 1.0...
  • Page 4 EN: Information: This symbol appears in the user manual along with a number referring to supplementary information which can be found in the information section. BM08299 Rev. 1.0...
  • Page 5 EN: Consult instructions. The latest version of all user manuals can be downloadedasa“pdf-file” from the web page. The manuals can be read witha“ReadOutLoud” functionality in e.g Adobe Acrobat and /or printed in a larger size to accommo- date persons with visual impairments.
  • Page 6 EN: Date of manufacture. EN: Manufacturer EN: CE marked EN: Medical device YYYY-MM-DD (year/month/date) EN: Serial number EN: Catalogue number EN: UKCA marked 60601-1 EN:Unique Device EN: For indoor use only EN:Certificationbodymark EN: Refer to user manual Identification BM08299 Rev. 1.0...
  • Page 7 EN: Type BF applied part EN: Service indicator EN: Batteri indicator EN: Overload EN: Examine, Check EN: Pause EN: Ready for use EN: Incorrect use EN: Emergency lowering EN: Weight of unit EN: Recyclable EN: Maximum user weight BM08299 Rev. 1.0...
  • Page 8 EN: Non-ionizing electro- EN: Charging EN: Manual Cleaning EN: PH when washing magnetic radiation EN: Listen to click sound EN: Keep dry EN: Emergency stop EN: Do not dispose in generel waste EN: Class II equipment BM08299 Rev. 1.0...
  • Page 9 Mover 180 Mobile Hoist: Molift Mover 180 Gross weight: 217kg / 478lbs SWL: 182kg / 400lbs Battery: Li-ion 25.2V, 2.85Ah Duty cycle: 10% IP24 60601-1 (01)XXXXXXXXXXXXXX(11)XXXXXX(21)XXXXXX XXXXXXXXXX Etac A/S Parallelvej 3 DK-8751 Gedved XXXXXX YYYY-MM-DD Next periodic inspection Inspection performed by:...
  • Page 10 EN: Lifting arm EN: Sling bar EN: Push handles EN: Lifting column BM08299 Rev. 1.0...
  • Page 11 EN: Hand control EN: Emergency stop EN: Battery EN: Manual emergency EN: Motor/actuator EN: Electric emergency EN: Chassis EN: Legs EN: Wheel/castor (Rear with brake) BM08299 Rev. 1.0...

  • Page 12: Warranty

    It has electrically adjustable legs and a lifting capacity of 182 kg (400 lbs). Molift Mover 180 should not run continuously for more than 2 minutes (with max load). After 2 minutes the hoist needs to rest for 18 minutes. Duty cycle 10%. (Intermittence according to standard ISO-EN 10535).

  • Page 13: Safety Information

    Introduction Thepersonreferredtoas“theuser”isthepersonwhoissittingintheproduct.“Thecarer”istheperson who manoeuvres the product. Intended purpose Indications The mobile hoist is an assistive device intended for For users who are in need of support to be lifted alleviation of, or compensation for, a functional im- and transferred over a shorter distance; e.g. people pairment due to an injury or disability.

  • Page 14: Safety Measures

    Safety measures Molift Mover 180 is equipped with several safety devices, which are intended to prevent damage or inju- ries to personnel and equipment in the case of incorrect use. The hoist has an overload sensor preventing the hoist to be operated if the load exceeds SWL.
  • Page 15 Battery and service indicator (LED) The system is activated when pushing one of the Thecontrolboxhasfi  velightindicators. operating buttons. Battery indicator (LED) The battery indicator (LED) will illuminate and 1 2 3 make a sound when battery level is low and the hoist requires charging.

  • Page 16: Service Indicator

    Service indicator Priority LED4 + LED5 LED state States in Comments Reset indicator (Not listed = off) normal use LED4fl  ashing according to Pairing Not ready to Wait until Bluetooth low Bluetooth drive ready energy pairing low energy state Emergency Reactivate LED 4+5...
  • Page 17 Hand control - Protection class: IPX6 Overview Icons Description LED state of battery, service and overload. Buttons for lifting and lowering of lifting arm. Buttons for leg adjustment mechanism in and out. Fold-down feature: Press both buttons at the same time to lower the lifting arm and bring the legs together (feature activates after 1 second).

  • Page 18: Service, Cleaning And Maintenance

    Dispose of the device according to the special precautions regarding electromag- national provisions that apply. netic compatibility (EMC). Interference may occur in the vicinity of the Recycling hoists electronics. See the recycling instructions on etac. , and follow the national provisions that apply. BM08299 Rev. 1.0...

  • Page 19: Troubleshooting

    Troubleshooting Problem Action The lifting column is not correctly positioned in the chassis or the screw are not properly tightened. The lifting column is wobbly. Assemble column and chassis, and tighten screws properly. The castors move unevenly because of pile and dust. The hoist moves unevenly on a plane surface.
  • Page 20 HANDLING EN: Handling Assembly Warnings 01+02 ... Information 01+02 ... Checklist Emergency stop Warnings 01+02 ... Information 01+02 ... Rising Lowering Warnings 01+02 ... Information 01+02 ... BM08299 Rev. 1.0...
  • Page 21 01+02+03 BM08299 Rev. 1.0...
  • Page 22 BM08299 Rev. 1.0...
  • Page 23 EN: Warnings 01. Make sure to lock the wheels before assembling the column. 02. Screws will ensure that the column cannot be pulled upwards. Do not use hoist unless the screws are mounted correctly. 03. Make sure locking pin is properly fastened. 04.
  • Page 24 EN: Information 01. Assembly of unit is not allowed when the control box is on power via mains supply or battery! 02. If external charger is present, connect battery to charger and charge the battery during assembly process. 03. If there is no external charger then charge the battery after assembly process.
  • Page 25 EN: Checklist after assembly Make sure that: • the lifting arm, lifting column and sling bar are properlyfixedandthattherearenoloosepartson the hoist. • the battery is charged. • the hoist has no apparent damage or other faults. • you perform one lift with load (60-80 kg). BM08299 Rev.
  • Page 26 BM08299 Rev. 1.0...
  • Page 27 BM08299 Rev. 1.0...
  • Page 28 EN: Warnings 01. The electrical emergency lowering function does not work when the emergency stop is activated. 02. The manual emergency lowering function on the actuator should only be used when the electrical emergency lowering does not work. 03. Release the handle gently. Releasing the handle too quickly may cause person injury or damage to the hoist.
  • Page 29 EN: Information 01. Emergency stop: Push the red button on top. 02. Release emergency stop: Use thumb and index/ middlefingertopushbuttonsonbatterysides. 03. Replace battery: Grab battery on sides and steer battery base over steering pin. 04. Push in place. This will release the emergency stop. 05.
  • Page 30 01+02 BM08299 Rev. 1.0...
  • Page 31 04+ 05 06+07 08+09+10 BM08299 Rev. 1.0...
  • Page 32 03+04 BM08299 Rev. 1.0...
  • Page 33 EN: Warnings 01. Use the push handles to move the hoist. 02. Avoid deep pile carpets, high thresholds, uneven or sloping surfaces. 03. Make sure that there is a gap between the motor/ actuator of the hoist and the bed. 04.
  • Page 34 EN: Information 01. If needed, use leg adjustment for e.g. to get close to a chair. 02. If needed, elevate head end of the bed before doing the transfer. 03. Make sure the straps are fastened symmetrically on left and right side. 04.

  • Page 35: Technical Data

    Technical data Weight 0,9 kg 2.0 lbs 31 kg 15 kg 68.3 lbs 33.1 lbs 16 kg 35.3 lbs Dimensions Inches Inches Inches 1940 76.38 10.91 1025 40.35 1907 75.08 10.43 26.38 21.38 20.67 21.85 1365 53.70 1275 50.20 1230 48.43 1630 64.17...
