Molift Mover 300 L
EN - User manual
BM06201 Rev. B 2021-08-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Molift Mover 300 L and is the answer not in the manual?

Questions and answers

Summary of Contents for Etac Molift Mover 300 L

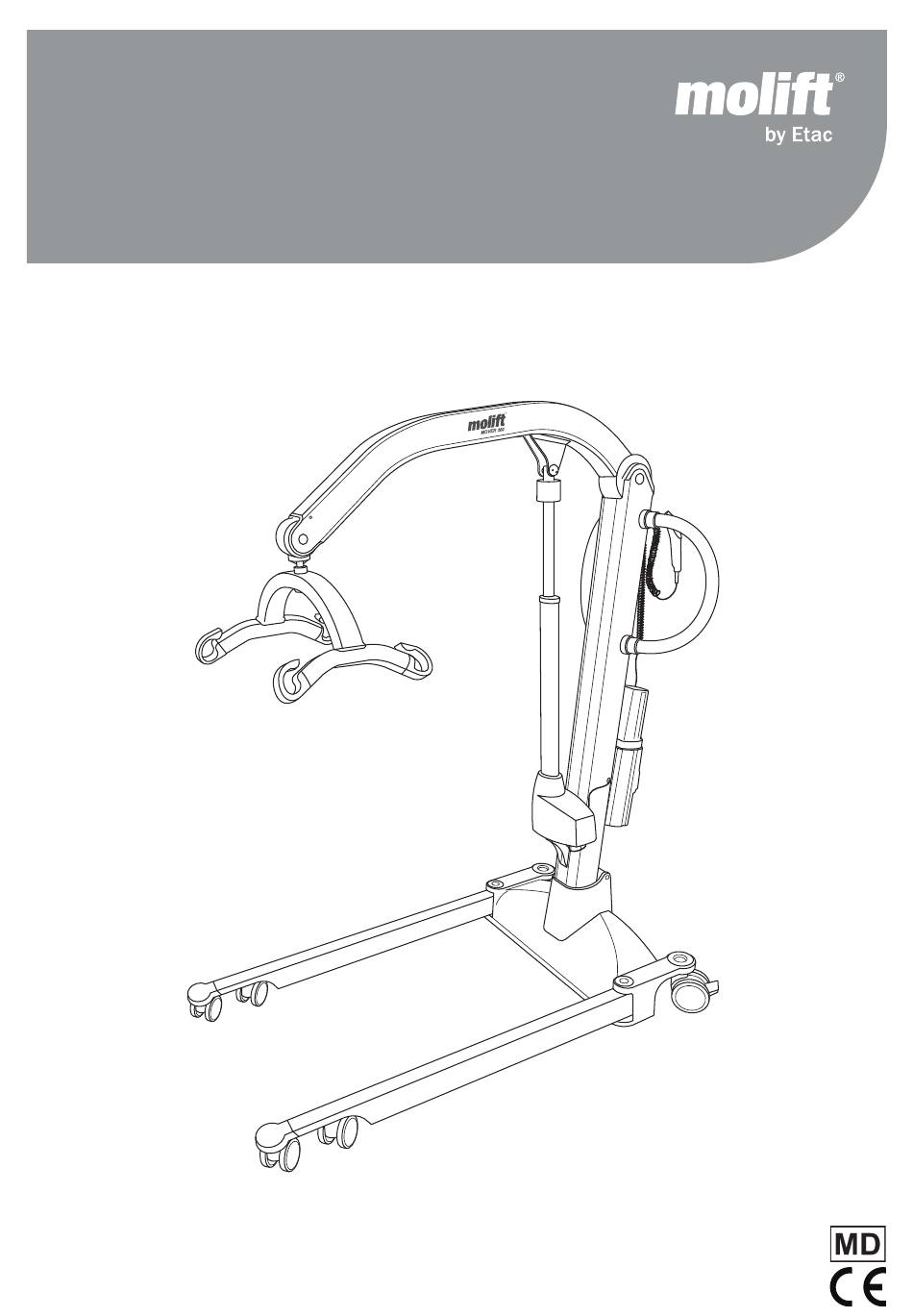

  • Page 1 Molift Mover 300 L EN - User manual BM06201 Rev. B 2021-08-04...
  • Page 2: Table Of Contents

    Lifting column ............................8 Mounting sling bar ..........................8 Battery and hand control ........................8 Checklist after assembly ........................8 How to use Molift Mover 300 L ��������������������������������������������������������������������������������������������������������� 9 Before use / daily check / monthly ......................9 Hand control ............................9 Safety devices ............................10 Push handles ............................10 Brakes ..............................10...
  • Page 3 Molift Smart 300 L / www.etac.com Charging ............................12 Transfer ��������������������������������������������������������������������������������������������������������������������������������������������13 Using slings ............................13 Lifting and lowering ...........................13 Supporting arms (optional) .........................14 Transfer .............................16 Lowering into sitting ..........................16 Accessories ���������������������������������������������������������������������������������������������������������������������������������������17 Sling bars and sling bars with scale ....................17 Castor with directional lock ........................17 Stretcher ............................17...
  • Page 4: English Manual

    Molift Smart 300 L / www.etac.com English manual Important This user manual contains important safety instructions and information regarding the use of the lifter and accessories. In this manual the user is the person being lifted. The carer is the person operating the lifter.
  • Page 5: Molift Mover 300 L

    Wheel / castor (rear with break) About Molift Mover 300 L Molift Mover 300 L is a mobile lifter intended for It is ideal for institutional care settings but can also be used in privates homes and nursing homes. The...
  • Page 6: General

    We recommend only using Molift components and spare parts. Declaration of conformity is not valid and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not be liable for faults or accidents that can occur when using components made by other manufacturers.
  • Page 7: Technical Data

    Molift Smart 300 L / www.etac.com Technical data Safe Working Load (SWL): Maximum A-weighted sound power level: 300 kg (661 lbs) = 63,2 dB Weight of unit: Operating forces button: Excl. battery and sling bar: Buttons on handset: 3.4 N...
  • Page 8: Assembly

    Molift Smart 300 L / www.etac.com Assembly Battery and hand control Charge the battery. The battery must not be in the battery holder during assembly! Lifting column Connect hand control to bottom of battery holder. 2. Insert battery. 3. Connect hand control wire to push handle so it does not fall to the floor when dropped.
  • Page 9: How To Use Molift Mover 300 L

    Working pause ratio/Duty Cycle� between lifter, sling bar and body support unit. Molift Mover 300 L should not be run constantly for more than 2 minutes (with maximum load), Molift lifters shall only be used to lift and rest for minimum 18 minutes. Duty Cycle persons.
  • Page 10: Safety Devices

    Molift Smart 300 L / www.etac.com Safety devices Emergency stop / emergency lowering Molift Mover 300 L is equipped with several safety devices, which are intended to prevent damage or injuries to personnel and equipment in the case of incorrect use.
  • Page 11: Electronics

    Service indicator Mode Battery No light Power saving (Stand by) Molift Mover 300 L has a 26.4 V 2.6Ah NiMH bat- Green Ready for use tery. The battery has a life expectancy of approx. Yellow Order service 500 charging cycles.
  • Page 12: Charging

    Molift Smart 300 L / www.etac.com Charging Battery indicator (LED) Battery charger Plug (disconnecting device) Battery Charger The battery charger can be used as a tabletop charger or mounted to a vertical wall surface close to a power outlet, minimum 120 cm above the floor.
  • Page 13: Transfer

    Assess the risks and take notes. The carer is responsible for the safety of the user. Molift Mover 300 L can be used with 4-point sling bar for different types of transfers; sitting, The sling bar’s hook design prevents sling to be recumbent or ambulating.
  • Page 14: Supporting Arms (Optional)

    Molift Smart 300 L / www.etac.com Supporting arms (optional) Height of supporting arms: 90 - 150 cm (adjustable) The lifter can be used for gait training with sup- porting arms. Supporting arms - operating Place the bracket ② for supporting arms in the desired height.
  • Page 15 Molift Smart 300 L / www.etac.com Position lock handle in suitable position to avoid obstructing the operation of the lifter. When needed to release locking arms, turn lock handle ① counterclockwise. To retract the supporting arms, swing the support- ing arms upwards 270 degr.
  • Page 16: Transfer

    Molift Smart 300 L / www.etac.com Transfer Lowering into sitting Try to position the user as low as possible (preferably resting the feet on the chassis) when When transferring the user into sitting, the follow- transferring the lifter with a suspended user. In this...
  • Page 17: Accessories

    Sling bars and sling bars with scale Etac supplies a wide selection of slings for Molift Mover 300 L can be used with a 4 point different types of transfers. The Molift RgoSling sling bar. Sling bars are available with or without sling series is developed to be combined with Molift Scale.
  • Page 18: Maintenance

    Etac. Contact Etac at molift@etac.com for training and authorization or recommendation of an approved service partner. When performing a periodic inspection, the inspector shall fill out the inspection report for Molift Mover 300 L. The reports should be...
  • Page 19: Troubleshooting

    Molift Smart 300 L / www.etac.com Troubleshooting Symptom Possible cause / action The lifting column is wobbly The lifting column is not correctly positioned in the chassis or the locking handle is not fully locked. Assemble column and chassis properly.
  • Page 20 Etac A/S Parallelvej 3 DK-8751 Gedved www.etac.com...
