Etac Molift Mover 180 Quick Start Manual

Molift Mover 180, Quick guide | QG08101 Rev. B | www.etac.com

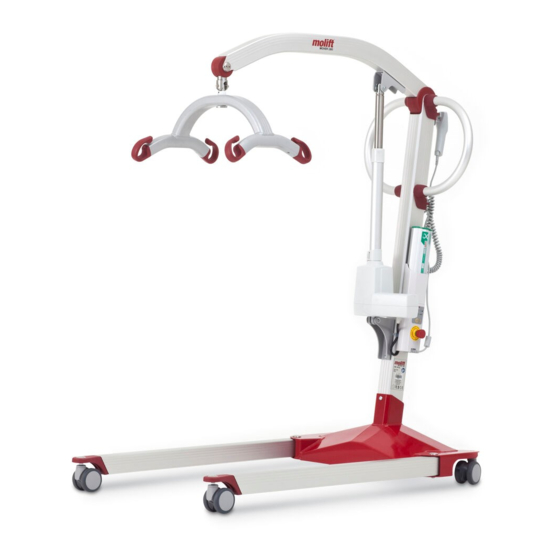

Molift Mover 180
Quick guide (EN)
QG08101 Rev B 2022.10.17
Sling bar
Manual emergency lowering
Legs
Wheel / castor (Rear with brake)
Important
Read user manual before use! This Quick guide does not replace user manual. It is important to fully understand the
content of the user manual before attempting to use the equipment.
Go to www.etac.com for latest version of the user manual.
Never exceed the Safe Working Load (SWL) of 180 kg (397 lbs).
If maximum load (SWL) differs between hoist and body support unit, then the lowest maximum load shall always be
used.
Molift hoists shall only be used to lift persons. Never use the hoist to lift or move objects of any kind.
Motor / actuator
Hexagon
socket screw
Lifting arm
Push
handles
Lifting column
Hand
control
Battery
Electric emergency
lowering
Emergency
stop
Hexagon
socket screw
Chassis
Service
indicator Mode
Power saving
No light
(Stand by)
Green Ready for use
Yellow Order service
Red Perform service
Perform service
Red + sound
immediately
Battery
indicator Mode
Light Low battery
No light Charged battery
