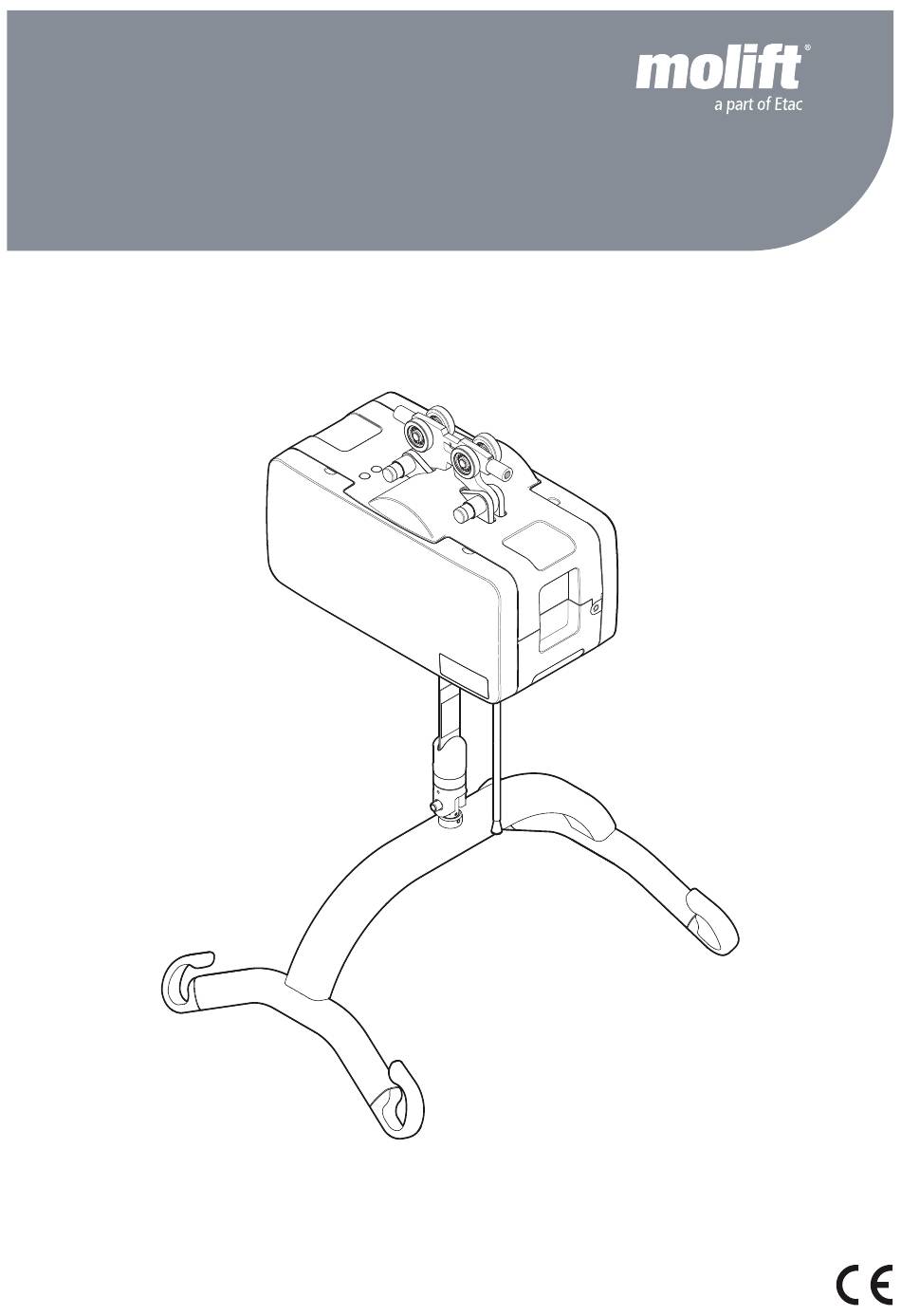

- Page 1 Molift Air EN - User manual BM16101 Rev. G 2015-12-07...
-
Page 2: Table Of Contents
Molift Air English Manual Content Important Molift Air 205/300 ........2 This User Manual contains important safety Hoist components........2 instructions and information regarding the use of About Molift Air ........2 the lifter and accessories. General .............3 Declaration of conformity ......3 In this manual the user is the person being lifted. Conditions for Use ........3 The assistant is the person operating the lifter. -
Page 3: Molift Air 205/300

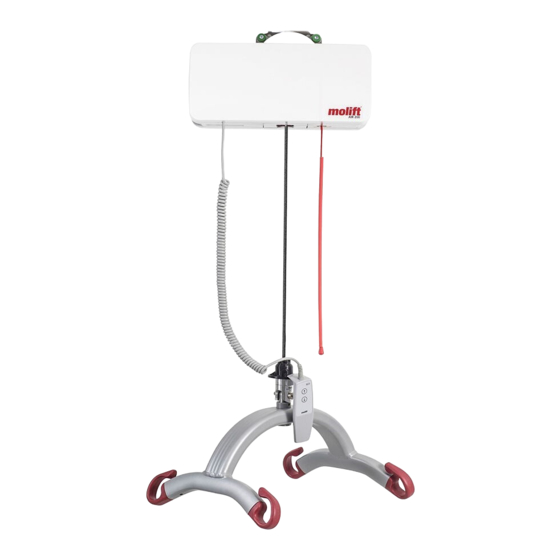

Molift Air 205/300 Hoist components: 1. Trolley 2. Hoist 3. Side covers 4. Emergency stop/ Emergency lowering 5. Lifting belt 6. Quick release pin 7. Hand control 8. Suspension About Molift Air Molift AIR is a strong and smooth ceiling lift that enables patients and residences to be transferred in a comfortable and safe way. -
Page 4: General
We recommend only using Molift components and spare parts. Declaration of conformity is not valid and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not be liable for faults or accidents that can occur when using components made by other manufacturers. -
Page 5: Product Identification
Product identification Product label The Product labels barcode contain article number, serial number and production date. 60601-1 Molift Air 300 Gross weight: 60601-1 310.8kg/685.2lbs Molift Air 300 26.4 V DC, IP24 Gross weight: Duty cycle 10% 310.8kg/685.2lbs 26.4 V DC, IP24 Duty cycle 10% 60601-1 Molift Air 205... -
Page 6: Technical Data
Molift Air Technical Data Safe Working Load (SWL) Molift AIR 205: 205 kg (450 lbs) Molift AIR 300: 300kg (660 lbs) Propulsion motor speed Weight of unit 0,2m/second (7,87 inches/second) Chassis incl. battery, Excl. suspension: Protection class 8,56 kg (18,87 lbs) Hand control IP24 4-point Medium Suspension: 2,2 kg/4.8 lbs Lift motor IP24... -
Page 7: Installation
Installation Lifter installation Assembly and installation The hoist is marked with Safe Working Load Mounting of Lifter on trolley. No tools required. (SWL), this should not exceed rail systems max The lifter has two connection points. load capacity. The rail system can only be installed by certified personnel in accordance with applicable installa- tion instructions. -
Page 8: How To Use Molift Air
Molift Air How to use Molift Air General Safety Precautions Safe Working Load Only use accessories and slings that are adjusted If maximum load (SWL) differs to fit the user, type of disability, size, weight and between hoist suspension and body type of transfer. -
Page 9: Mounting Suspension
Mounting Suspension Electrical Emergency Lowering Pull and hold to start lowering. Hold until user is lowered and can be released from suspension. 1. Align suspension in connection point. 2. Push button on locking pin and insert all the way through. Only for emergency use when hand 3. -
Page 10: Electronics
Molift Air Electronics Transport and Operating Conditions Battery and Service indicator Transport and Storage The lifter has two indicator lights. For long time storage it is recommended that the emergency stop button is activated (pulled out). The lifter can be stored and transported under temperatures between -25 - 70 °C. -
Page 11: Charging
Charging IRC - In Rail Charging Molift Air can be charged in two ways; The lifter is charged through a built in charger in Through hand control with a wall mounted battery lift motor for continuous charging through the charger, or through the rail with In Rail Charging. entire rail system length. -
Page 12: Transfer
Ensure that all four loops of the sling are Slings made by other manufacturers securely fastened to avoid the user slipping or We recommend only using Molift slings. Etac shall falling. not be liable for faults or accidents that can occur 3. -
Page 13: Accessories
Accessories Scale Recommended optional equipment and acces- sories for Molift Air. Molift Scale Set (without Suspension) Suspensions Art. no.: 1840000 Can be combined with all Molift Air compatible Molift Air can be used with 2 or 4 point suspensions. Scale is approved Class III. The scale suspension. -
Page 14: Maintenance
The inspection must be performed and year of by service personnel authorized by Etac. Contact inspection 12 Month Etac for training and authorization or recommen- dation of an approved service partner. -
Page 15: Troubleshooting
Troubleshooting Symptom Possible Cause/Action The lifter does not respond to Hand control action Emergency Stop is activated. Deactivate by push- ing button back in. The lifters electronics is overheated. Wait for it to cool down. Hand control is not plugged in properly. Open cover and plug in Hand control.
