Summary of Contents for VigilLink VLEX-HT2150A-TR

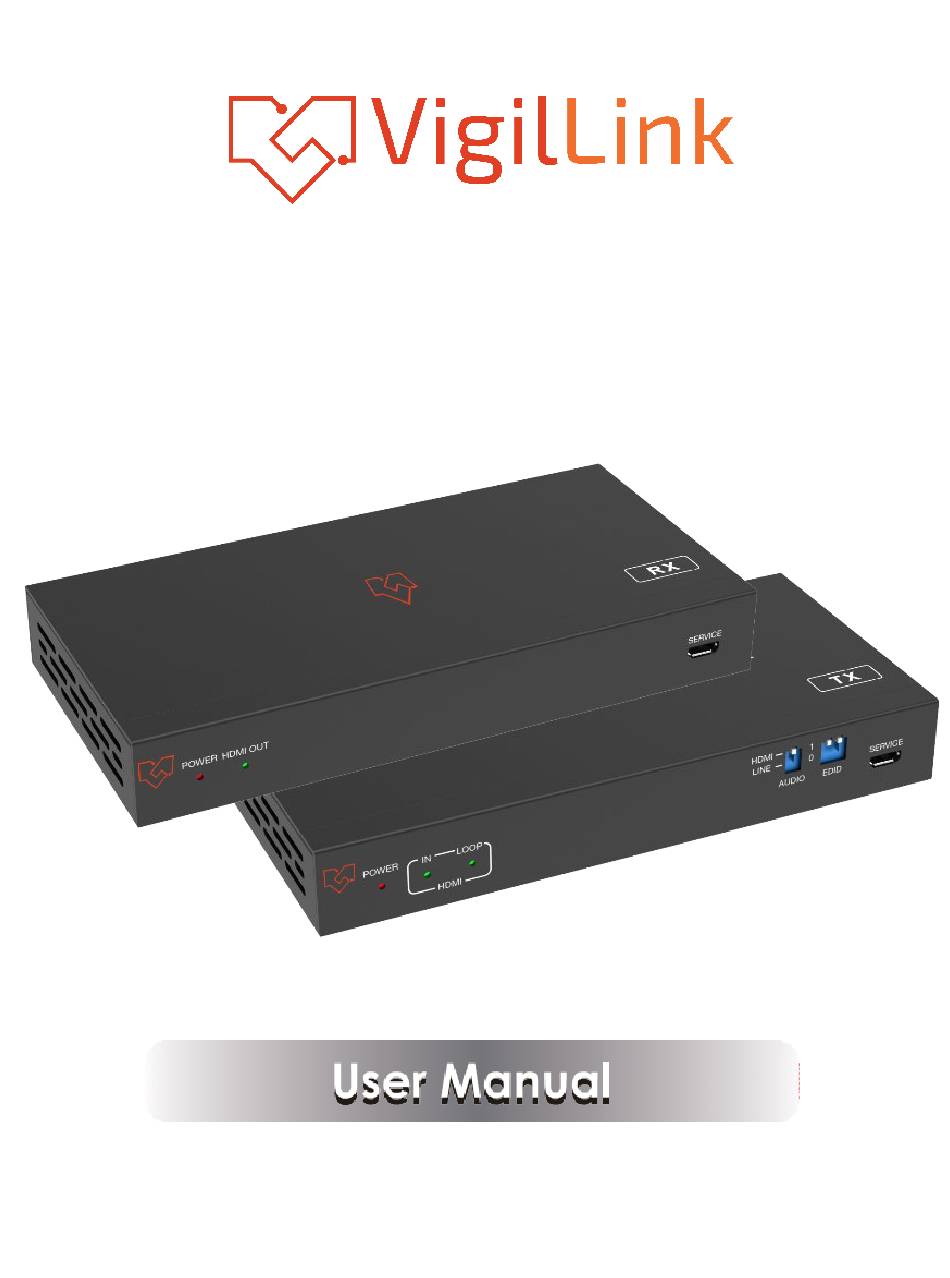

  • Page 1 VLEX-HT2150A-TR 1080p HDBaseT Extender 150m VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
  • Page 3: Introduction

    1. Introduction This HDBaseT Extender can extend HDMI signals from signal sources to display devices via CAT 5e/6 cable with a distance up to 150m/ 492ft and video resolution up to 1080P@60Hz YUV4:4:4. It supports bi- directional IR control, RS-232 control, EDID management, audio embedment (TX), and audio dis-embedment (RX).
  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 6.75Gbps 480i ~1080p50/60Hz; Video Resolution Up to1200P@60Hz Color Depth 8-bit (1080P60Hz) Color Space RGB, YCbCr 4:4:4 / 4:2:2 LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, HDMI Audio Formats Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Extension Distance 150m/492ft...
  • Page 5: Operation Controls And Functions

    Mechanical Housing Metal Enclosure Color Black Dimensions TX/ RX:146.7mm (W)×71.5mm (D)×21mm (H) Weight Transmitter: 287g, Receiver: 294g Input: AC100~240V 50/60Hz Power Supply Output: DC 24V/1A (Locking connector) Power Consumption 8.4W (max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensation)
  • Page 6 Name Function Description Power LED When the transmitter is powered on, the red light will be on. The green light will be on when the transmitter connects IN LED with a source signal. The green light will be on when the transmitter connects with LOOP LED a display.
  • Page 7: Receiver Panel

    Name Function Description 13 LINE IN Analog audio signal input port. 14 IR IN IR input port for receiving the signal of the IR remote. IR output port to control the source device. This IR output 15 IR OUT signal is from the IR IN port of the receiver. 3-pin Phoenix connector for RS-232 command transmission.
  • Page 8: Ir Pin Definition

    Name Function Description DC 24V/1A power input port. Note that the extender supports a bi-directional POC function, which DC 24V means either the transmitter or the receiver connects to a 24V/1A power supply; the other doesn’t need to be plugged into a power socket to be powered via the CAT 5e/6 cable.
  • Page 9: Audio Processing Logics

    IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.
  • Page 10 then, the display device only TX's HDMI LOOP-OUT port outputs video from the source links to a display device, TX's HDMI a device without any sounds. When IN port then, the display device only the TX connects RX's HDMI OUT port connects outputs video from the source LINE IN to a source...
  • Page 11: Application Example

    7. Application Example 9 / 9...
  • Page 12 HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 10 /...
