18Gbps DP over HDBaseT Extender
150 meters with KVM
VLEX-HT2150DPK-TR
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLEX-HT2150DPK-TR and is the answer not in the manual?

Questions and answers

Summary of Contents for VigilLink VLEX-HT2150DPK-TR

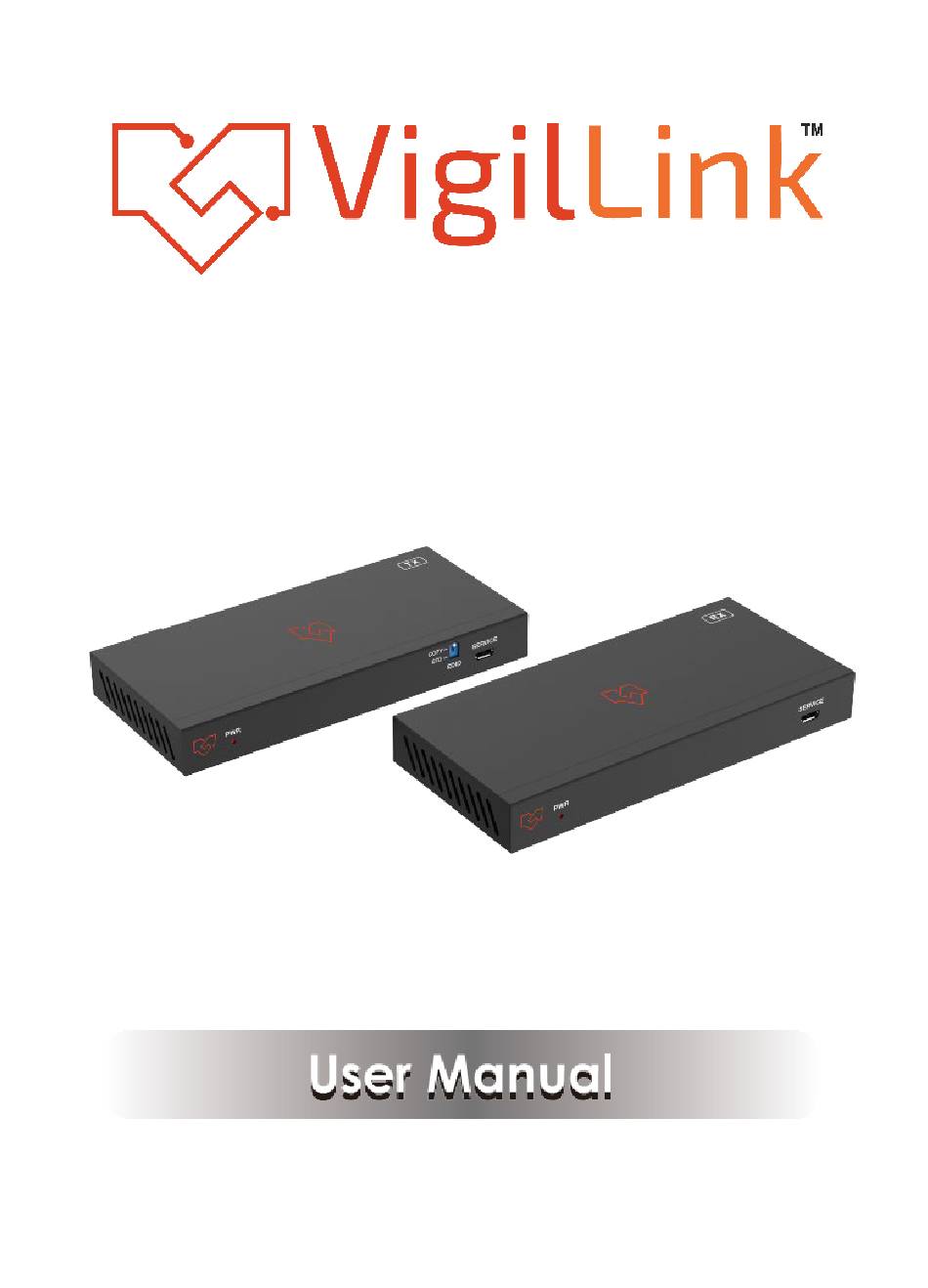

  • Page 1 18Gbps DP over HDBaseT Extender 150 meters with KVM VLEX-HT2150DPK-TR VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction This 4K60 DP Extender can extend DP signal, bi-directional IR control signal, bi-directional RS-232 signal and USB KVM signal to a distance up to 328ft/100m for 4K60 signal or 492ft/150m for 1080P signal via a single CAT6 cable. It converts DP signal to standard HDBaseT signal and transmits it through LAN cable.
  • Page 4: Package Contents

    ☆ Bi-directional IR, RS-232 and USB KVM signal pass-through are supported ☆ Support bi-directional POC (Power over Cable) function ☆ Advanced EDID management ☆ Compact design for easy and flexible installation 3. Package Contents ① 1 4K60 DP Extender Extender (Transmitter) ×...
  • Page 5 HDR, HDR10, HDR10+, Dolby Vision, HLG LPCM2.0 (96KHz), Dolby Digital Plus 5.1CH and Audio Format DTS-HD Master 7.1CH Human body model — ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge) Connection Input: 1 × DP IN [20-pin female] Output: 1 × HDBT OUT [RJ45, 8-pin female] Control: 1 ×...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel SERVICE EDID IR IN IR OUT DP IN RS-232 Name Function Description PWR LED The red LED is on when the Transmitter is powered on. Used for EDID setting (dial to COPY by default). EDID DIP COPY: Copy the EDID of the DP OUT port of Receiver.
  • Page 7: Receiver Panel

    Name Function Description Connected to IR receiver cable. The IR receive signal will IR IN emit to the IR OUT port of the Receiver. Connected to IR blaster cable. The IR emit signal is from the IR OUT IR IN port of the Receiver. 3-pin phoenix connector, connected to a PC or control system RS-232 for RS-232 command transmission.
  • Page 8: Ir Pin Definition

    Name Function Description Data Signal ▪ Illuminating: DP signal with HDCP. Indicator ▪ Flashing: DP signal without HDCP. (Yellow) ▪ Dark: No DP signal. DP signal output port, connected to DP display device DP OUT such as TV or monitor. Connected to the IR receiver cable.
  • Page 9: Application Example

    6. Application Example Transmitter DC 24V RS-232 IR Blaster Power Supply HDMI Matrix with IR Receiver RS-232 port Computer Host CAT6 Cable IR Blaster IR Receiver Keyboard Mouse UHDTV DC 24V RS-232 Receiver 7 / 7...
