VigilLink VLEX-8KF300A-TR User Manual

Hdmi 8k fiber extender 300m/arc
Hide thumbs

Advertisement

Table of Contents

HDMI 8K Fiber Extender 300M/ARC
VLEX-8KF300A-TR
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLEX-8KF300A-TR and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLEX-8KF300A-TR

Summary of Contents for VigilLink VLEX-8KF300A-TR

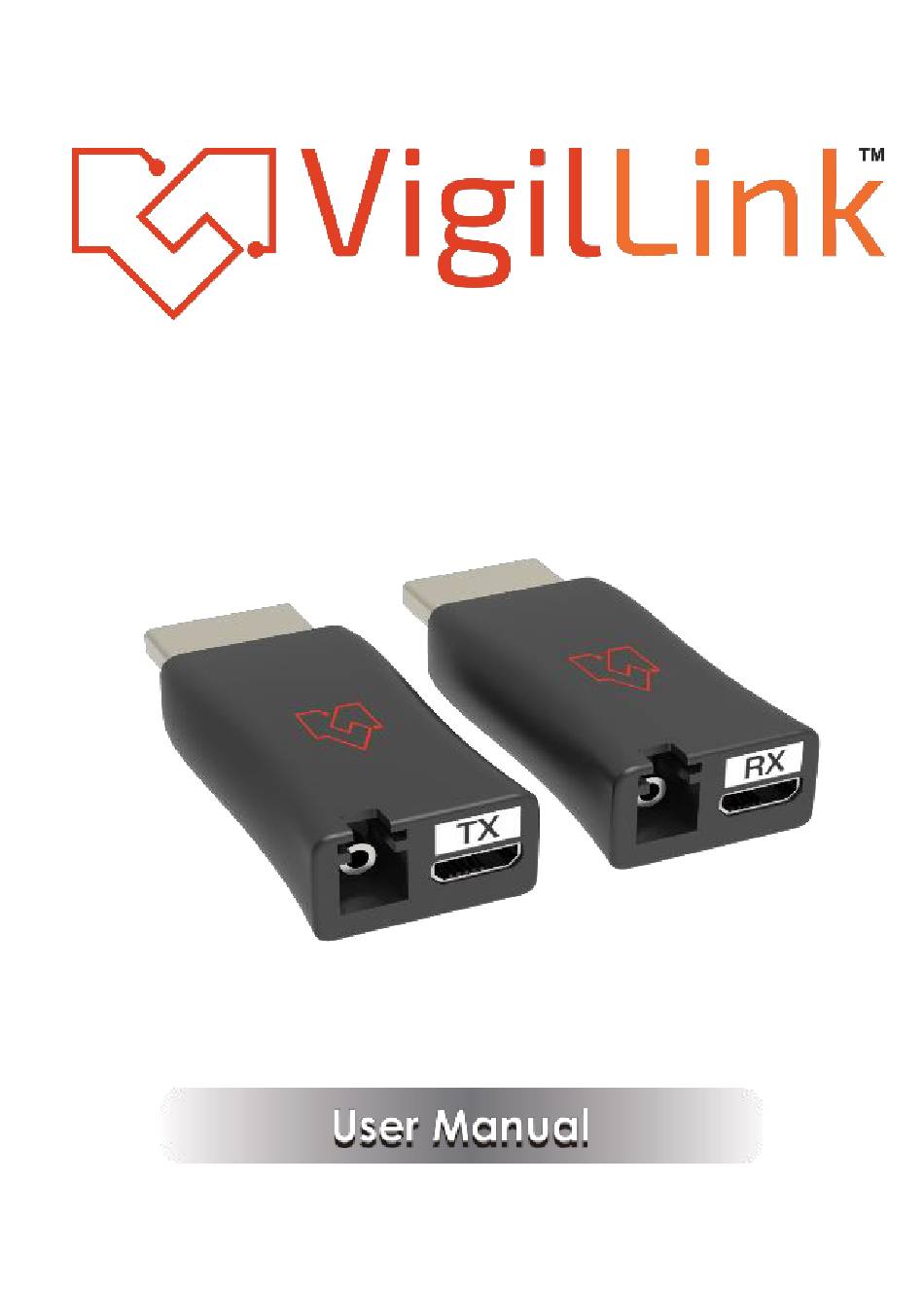

  • Page 1 HDMI 8K Fiber Extender 300M/ARC VLEX-8KF300A-TR VER 1.1...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    Introduction This HDMI over Fiber Extender offers remarkable capabilities for extending HDMI signals over long distances. It can extend 18Gbps (4K60 4:4:4 8bit) HDMI signals up to 984ft/300m using a 50/125um/OM3 multi-mode fiber cable, or extend 40Gbps (8K60 4:2:0 10bit) HDMI signals up to 164ft/50m using a 50/ 125um/OM4 multi- mode fiber cable.

  • Page 4: Package Contents

    2. Package Contents ① 1 × 8K 40Gbps HDMI over Fiber Extender (Transmitter) ② 1 × 8K 40Gbps HDMI over Fiber Extender (Receiver) ③ 2 × HDMI Adapter Cable (female to male, 15cm) ④ 2 × USB Cable (USB A to Micro USB, 1m, shielded) ⑤...
  • Page 5 Connection Input: 1x HDMI IN [Type A, 19-pin male] 1x POWER [Micro USB, 5-pin female] Transmitter Output: 1x FIBER OUT [LC, 1-pin female] Input: 1x FIBER IN [LC, 1-pin female] 1x POWER [Micro USB, 5-pin female] Receiver Output: 1x HDMI OUT [Type A, 19-pin male] Mechanical Housing Aluminum Enclosure...

  • Page 6: Operation Controls And Functions

    4. Operation Controls and Functions Name Function Description HDMI signal input port, connected to the HDMI HDMI IN port source device such as PC, DVD or Blu-ray Player. Optical fiber signal output port, connected to the FIBER OUT FIBER IN port of the Receiver. port USB 5V power supply port.

  • Page 7: Application Example

    5. Application Example 5 / 5...
