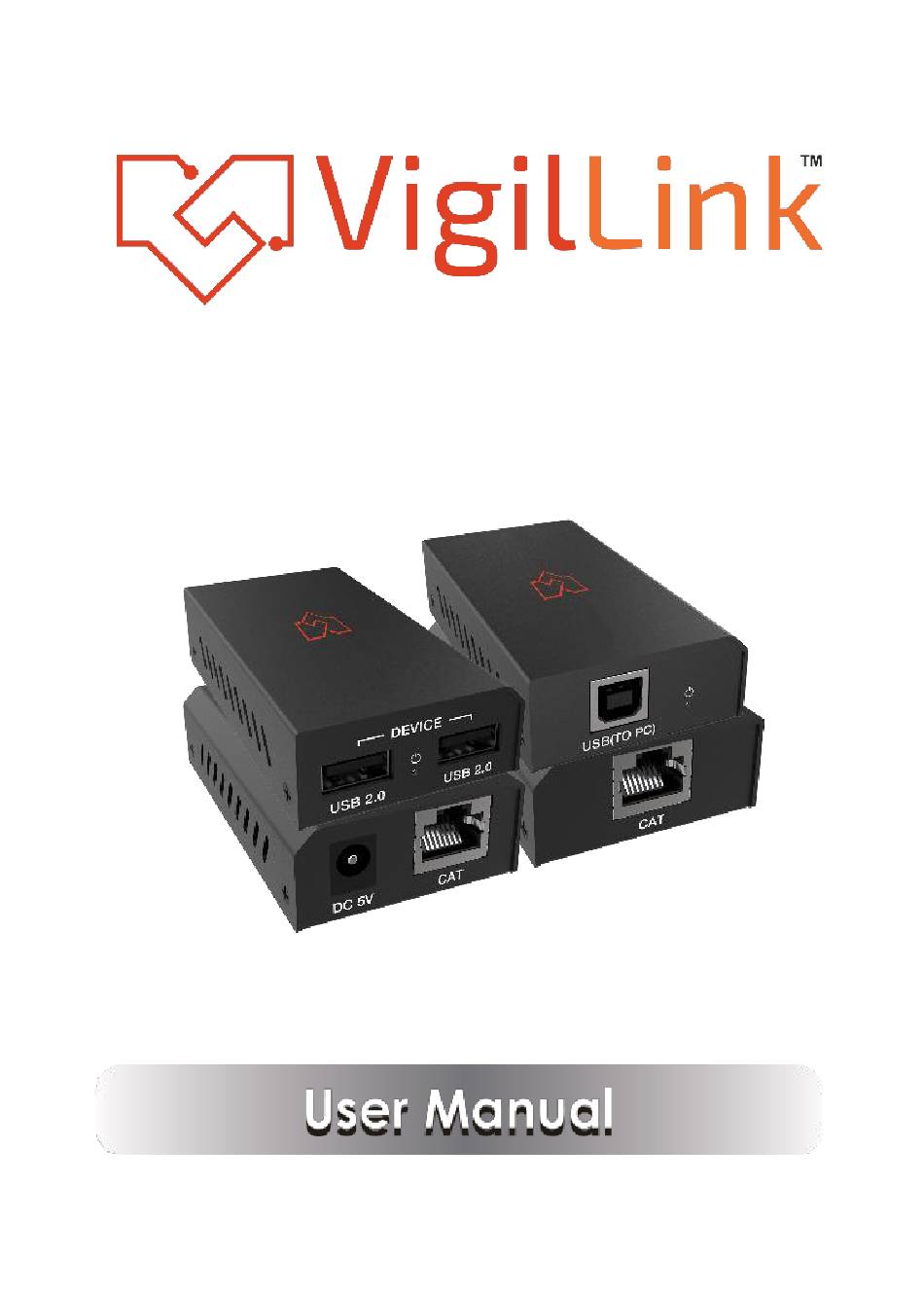

- Page 1 USB2.0 Over CAT Extender 50 meters VLEX-U2CT050-TR VER 1.2...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The USB 2.0 Extender can extend USB signal up to 50m/164ft via a single CAT5/5e/6 cable (The transmission distance can only up to 40m/131ft for some USB 2.0 Hubs). For transmitter, the USB-B port is connected to a PC. For receiver, you can connect the two USB ports to devices with USB port such as U disk or printer, etc. -
Page 4: Specifications
Specifications Technical USB Protocol USB 2.0 Transmission Rate Up to 480Mbps Transmission 50m/164ft (Note: The transmission distance can only up to Distance 40m/131ft for some USB 2.0 Hub) Human-body Model: ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connections Input port: 1 x USB (To PC) [USB-B, female] Transmitter Output port: 1 x CAT [RJ45, female]... -
Page 5: Operation Controls And Functions
4. Operation Controls and Functions 4.1 Transmitter Panel Name Function Description Use the included USB cable (USB-B male head to USB-A male head) to connect a PC. USB port Note: The PC can control the devices connected to the USB port of the receiver. The green LED will illuminate when transmitter is Power LED provided power supply by USB-B port’s device. -
Page 6: Application Example
5. Application Example Transmitter CAT5/5e/6 USB 2.0 USB 2.0 Receiver Power Supply U Disk Printer...
