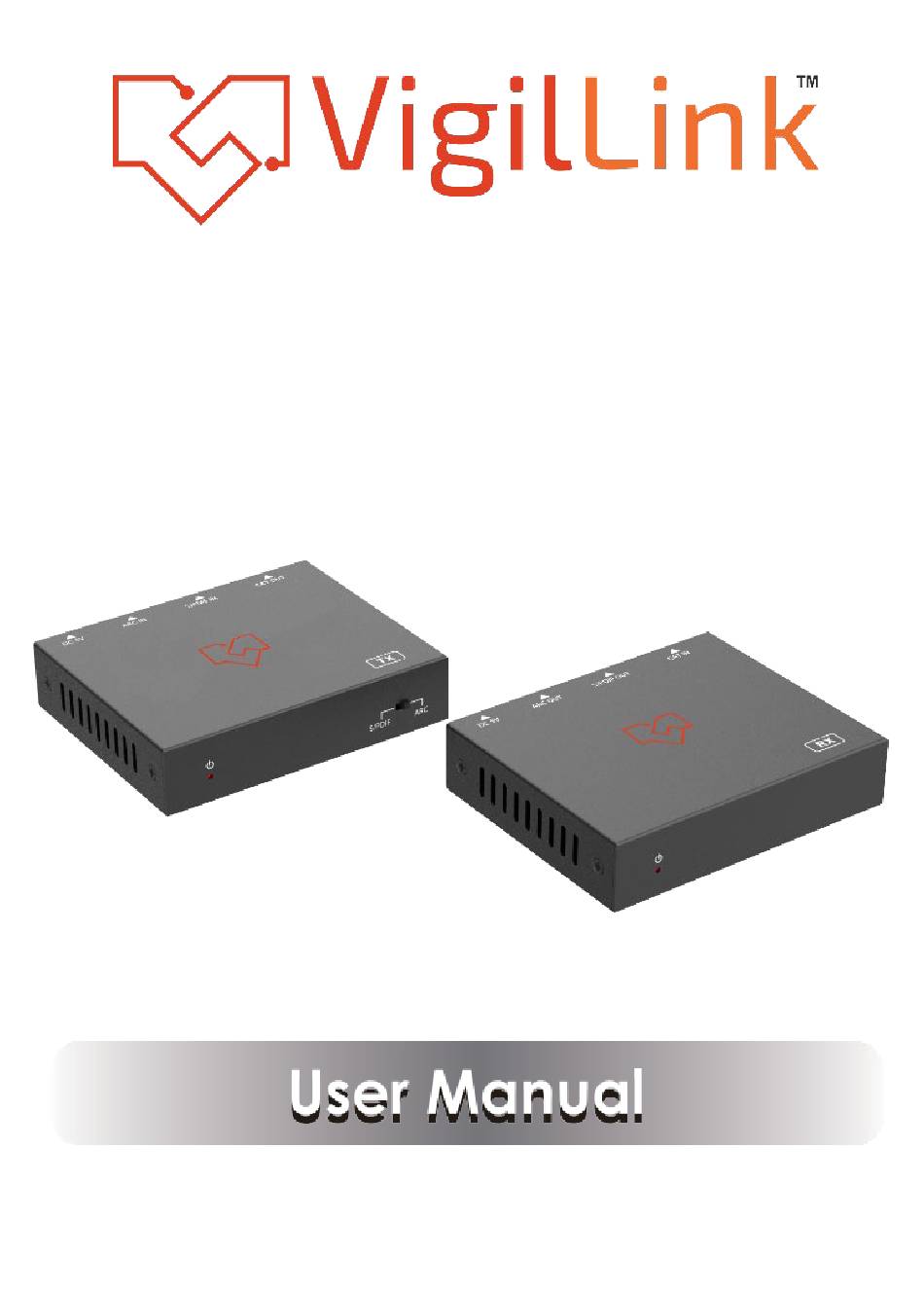

- Page 1 HDMI ARC & Optical Audio over CAT Extender 150 meters VLEX-HAACT150-TR VER 1.1...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction Experience seamless audio transmission with our Audio Extender, capable of transmitting HDMI ARC or S/PDIF audio signals over impressive distances of up to 150m/492ft (96kHz) or 90m/295ft (192kHz, for ARC only) using a single CAT cable. Featuring CEC pass-through functionality between the HDMI ARC input port and ARC output port, this extender ensures seamless handshake for ARC transmission. -
Page 4: Specifications
4. Specifications Technical Supported Audio PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch Formats Transmission ARC audio: 150m/495ft - 96kHz, 90m/295ft - 192kHz Distance and S/PDIF audio: 150m/495ft - 96kHz Sample Rates Human-body Model: ±8kV (Air-gap discharge), ESD Protection ±4kV (Contact discharge) Connection Input port: 1 x S/PDIF IN [Optical Audio Jack] 1 x ARC IN [HDMI Type A, 19-pin female]... -
Page 5: Operation Controls And Functions
Operation Controls and Functions 4.1 Transmitter CAT OUT S/PDIF IN ARC IN DC 5V S/PDIF Name Function Description Power LED When the transmitter is powered on, the red power LED will be on. Use this switch to select audio pass-through channel. Switch to “S/PDIF”: The S/PDIF OUT port outputs the optical S/PDIF audio from the S/PDIF IN port of the transmitter. -
Page 6: Receiver
4.2 Receiver CAT IN S/PDIF OUT ARC OUT DC 5V Name Function Description Power LED When the receiver is powered on, the red power LED will be on. CAT IN Connect to the CAT OUT port of the transmitter with CAT6 cable. Optical fiber audio output port, connected to amplifier or speaker S/PDIF OUT with Optical Toslink cable. -
Page 7: Application Example
5. Application Example Situation 1: ARC Mode Transmitter S/PDIF IN CAT OUT ARC IN DC 5V USB Power Cable CAT6 cable HDTV with ARC function S/PDIF OUT CAT IN ARC OUT DC 5V Receiver USB Power Cable Soundbar 5 / 5... - Page 8 Situation 2: S/PDIF Pass-through Mode Transmitter CAT OUT S/PDIF IN ARC IN DC 5V USB Power Cable CAT6 cable HDTV CAT IN S/PDIF OUT ARC OUT DC 5V Receiver USB Power Cable Amplifier 5 / 5...
- Page 9 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 5 / 5...
